grpc::ServerInterface::BaseAsyncRequest Class Reference

#include <server_interface.h>

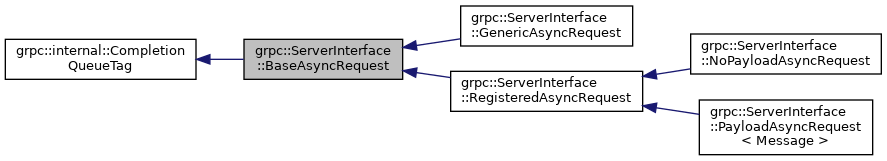

Inheritance diagram for grpc::ServerInterface::BaseAsyncRequest:

Public Member Functions
	BaseAsyncRequest (ServerInterface *server, grpc::ServerContext *context, internal::ServerAsyncStreamingInterface *stream, grpc::CompletionQueue *call_cq, grpc::ServerCompletionQueue *notification_cq, void *tag, bool delete_on_finalize)
bool	FinalizeResult (void **tag, bool *status) override
	~BaseAsyncRequest () override
Public Member Functions inherited from grpc::internal::CompletionQueueTag
virtual	~CompletionQueueTag ()

Protected Attributes
grpc_call *	call_
grpc::CompletionQueue *const	call_cq_
internal::Call	call_wrapper_
grpc::ServerContext *const	context_
const bool	delete_on_finalize_
bool	done_intercepting_
internal::InterceptorBatchMethodsImpl	interceptor_methods_
grpc::ServerCompletionQueue *const	notification_cq_
ServerInterface *const	server_
internal::ServerAsyncStreamingInterface *const	stream_
void *const	tag_

Private Member Functions
void	ContinueFinalizeResultAfterInterception ()

Detailed Description

Definition at line 167 of file grpcpp/impl/codegen/server_interface.h.

Constructor & Destructor Documentation

BaseAsyncRequest()

grpc::ServerInterface::BaseAsyncRequest::BaseAsyncRequest	(	ServerInterface *	server,
		grpc::ServerContext *	context,
		internal::ServerAsyncStreamingInterface *	stream,
		grpc::CompletionQueue *	call_cq,
		grpc::ServerCompletionQueue *	notification_cq,
		void *	tag,
		bool	delete_on_finalize
	)

Definition at line 145 of file server_cc.cc.

~BaseAsyncRequest()

grpc::ServerInterface::BaseAsyncRequest::~BaseAsyncRequest ( )

override

Definition at line 166 of file server_cc.cc.

Member Function Documentation

ContinueFinalizeResultAfterInterception()

void grpc::ServerInterface::BaseAsyncRequest::ContinueFinalizeResultAfterInterception ( )

private

Definition at line 217 of file server_cc.cc.

FinalizeResult()

bool grpc::ServerInterface::BaseAsyncRequest::FinalizeResult ( void **  tag, bool *  status  )

overridevirtual

FinalizeResult must be called before informing user code that the operation bound to the underlying core completion queue tag has completed. In practice, this means:

1. For the sync API - before returning from Pluck
2. For the CQ-based async API - before returning from Next
3. For the callback-based API - before invoking the user callback

This is the method that translates from core-side tag/status to C++ API-observable tag/status.

The return value is the status of the operation (returning status is the general behavior of this function). If this function returns false, the tag is dropped and not returned from the completion queue: this concept is for events that are observed at core but not requested by the user application (e.g., server shutdown, for server unimplemented method responses, or for cases where a server-side RPC doesn't have a completion notification registered using AsyncNotifyWhenDone)

Implements grpc::internal::CompletionQueueTag.

Reimplemented in grpc::ServerInterface::GenericAsyncRequest, grpc::ServerInterface::PayloadAsyncRequest< Message >, and grpc::ServerInterface::RegisteredAsyncRequest.

Definition at line 170 of file server_cc.cc.

Member Data Documentation

call_

grpc_call* grpc::ServerInterface::BaseAsyncRequest::call_

protected

Definition at line 189 of file grpcpp/impl/codegen/server_interface.h.

call_cq_

grpc::CompletionQueue* const grpc::ServerInterface::BaseAsyncRequest::call_cq_

protected

Definition at line 185 of file grpcpp/impl/codegen/server_interface.h.

call_wrapper_

internal::Call grpc::ServerInterface::BaseAsyncRequest::call_wrapper_

protected

Definition at line 190 of file grpcpp/impl/codegen/server_interface.h.

context_

grpc::ServerContext* const grpc::ServerInterface::BaseAsyncRequest::context_

protected

Definition at line 183 of file grpcpp/impl/codegen/server_interface.h.

delete_on_finalize_

const bool grpc::ServerInterface::BaseAsyncRequest::delete_on_finalize_

protected

Definition at line 188 of file grpcpp/impl/codegen/server_interface.h.

done_intercepting_

bool grpc::ServerInterface::BaseAsyncRequest::done_intercepting_

protected

Definition at line 192 of file grpcpp/impl/codegen/server_interface.h.

interceptor_methods_

internal::InterceptorBatchMethodsImpl grpc::ServerInterface::BaseAsyncRequest::interceptor_methods_

protected

Definition at line 191 of file grpcpp/impl/codegen/server_interface.h.

notification_cq_

grpc::ServerCompletionQueue* const grpc::ServerInterface::BaseAsyncRequest::notification_cq_

protected

Definition at line 186 of file grpcpp/impl/codegen/server_interface.h.

server_

ServerInterface* const grpc::ServerInterface::BaseAsyncRequest::server_

protected

Definition at line 182 of file grpcpp/impl/codegen/server_interface.h.

stream_

internal::ServerAsyncStreamingInterface* const grpc::ServerInterface::BaseAsyncRequest::stream_

protected

Definition at line 184 of file grpcpp/impl/codegen/server_interface.h.

tag_

void* const grpc::ServerInterface::BaseAsyncRequest::tag_

protected

Definition at line 187 of file grpcpp/impl/codegen/server_interface.h.

---

The documentation for this class was generated from the following files:

• grpcpp/impl/codegen/server_interface.h
• server_cc.cc
