#include <async_stream.h>

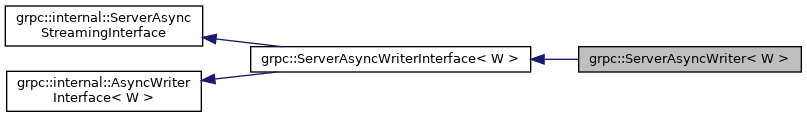

Inheritance diagram for grpc::ServerAsyncWriter< W >:

[legend]

Public Member Functions
void	Finish (const grpc::Status &status, void *tag) override

void	SendInitialMetadata (void *tag) override

	ServerAsyncWriter (grpc::ServerContext *ctx)

void	Write (const W &msg, grpc::WriteOptions options, void *tag) override

void	Write (const W &msg, void *tag) override

void	WriteAndFinish (const W &msg, grpc::WriteOptions options, const grpc::Status &status, void *tag) override

Public Member Functions inherited from grpc::internal::ServerAsyncStreamingInterface
virtual	~ServerAsyncStreamingInterface ()

Public Member Functions inherited from grpc::internal::AsyncWriterInterface< W >
void	WriteLast (const W &msg, grpc::WriteOptions options, void *tag)

virtual	~AsyncWriterInterface ()

Private Member Functions
void	BindCall (grpc::internal::Call *call) override

template<class T >
void	EnsureInitialMetadataSent (T *ops)

Private Attributes
grpc::internal::Call	call_

grpc::ServerContext *	ctx_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpServerSendStatus >	finish_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata >	meta_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpServerSendStatus >	write_ops_

Detailed Description

template<class W>
class grpc::ServerAsyncWriter< W >

Async server-side API for doing server streaming RPCs, where the outgoing message stream from the server has messages of type W.

Definition at line 845 of file grpcpp/impl/codegen/async_stream.h.

Constructor & Destructor Documentation

◆ ServerAsyncWriter()

template<class W >

grpc::ServerAsyncWriter< W >::ServerAsyncWriter ( grpc::ServerContext * ctx )

inlineexplicit

Definition at line 847 of file grpcpp/impl/codegen/async_stream.h.

Member Function Documentation

◆ BindCall()

template<class W >

void grpc::ServerAsyncWriter< W >::BindCall ( grpc::internal::Call * call )

inlineoverrideprivatevirtual

Implements grpc::internal::ServerAsyncStreamingInterface.

Definition at line 929 of file grpcpp/impl/codegen/async_stream.h.

◆ EnsureInitialMetadataSent()

template<class W >

template<class T >

void grpc::ServerAsyncWriter< W >::EnsureInitialMetadataSent ( T * ops )

inlineprivate

Definition at line 932 of file grpcpp/impl/codegen/async_stream.h.

◆ Finish()

template<class W >

void grpc::ServerAsyncWriter< W >::Finish	(	const grpc::Status &	status,
		void *	tag
	)

inlineoverridevirtual

See the ServerAsyncWriterInterface.Finish method for semantics.

Implicit input parameter:

the ServerContext associated with this call is used for sending trailing (and initial if not already sent) metadata to the client.

Note: there are no restrictions are the code of status,it may be non-OK

gRPC doesn't take ownership or a reference to status, so it is safe to to deallocate once Finish returns.

Implements grpc::ServerAsyncWriterInterface< W >.

Definition at line 921 of file grpcpp/impl/codegen/async_stream.h.

◆ SendInitialMetadata()

template<class W >

void grpc::ServerAsyncWriter< W >::SendInitialMetadata ( void * tag )

inlineoverridevirtual

See ServerAsyncStreamingInterface::SendInitialMetadata for semantics.

Implicit input parameter:

The initial metadata that will be sent to the client from this op will be taken from the ServerContext associated with the call.

Parameters

[in] tag Tag identifying this request.

Implements grpc::internal::ServerAsyncStreamingInterface.

Definition at line 857 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [1/2]

template<class W >

void grpc::ServerAsyncWriter< W >::Write	(	const W &	msg,
		grpc::WriteOptions	options,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg using WriteOptions options with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. WriteOptions options is used to set the write options of this message. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters

[in]	msg	The message to be written.
[in]	options	The WriteOptions to be used to write this message.
[in]	tag	The tag identifying the operation.

Implements grpc::internal::AsyncWriterInterface< W >.

Definition at line 878 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [2/2]

template<class W >

void grpc::ServerAsyncWriter< W >::Write	(	const W &	msg,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters
