#include <async_stream.h>

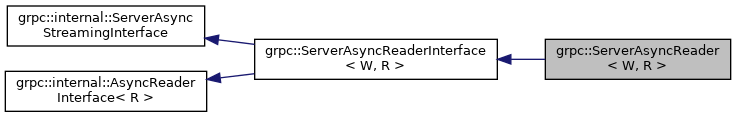

Inheritance diagram for grpc::ServerAsyncReader< W, R >:

[legend]

Public Member Functions
void	Finish (const W &msg, const grpc::Status &status, void *tag) override

void	FinishWithError (const grpc::Status &status, void *tag) override

void	Read (R msg, void tag) override

void	SendInitialMetadata (void *tag) override

	ServerAsyncReader (grpc::ServerContext *ctx)

Public Member Functions inherited from grpc::internal::ServerAsyncStreamingInterface
virtual	~ServerAsyncStreamingInterface ()

Public Member Functions inherited from grpc::internal::AsyncReaderInterface< R >
virtual	~AsyncReaderInterface ()

Private Member Functions
void	BindCall (grpc::internal::Call *call) override

Private Attributes
grpc::internal::Call	call_

grpc::ServerContext *	ctx_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpServerSendStatus >	finish_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata >	meta_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvMessage< R > >	read_ops_

Detailed Description

template<class W, class R>
class grpc::ServerAsyncReader< W, R >

Async server-side API for doing client-streaming RPCs, where the incoming message stream from the client has messages of type R, and the single response message sent from the server is type W.

Definition at line 698 of file grpcpp/impl/codegen/async_stream.h.

Constructor & Destructor Documentation

◆ ServerAsyncReader()

template<class W , class R >

grpc::ServerAsyncReader< W, R >::ServerAsyncReader ( grpc::ServerContext * ctx )

inlineexplicit

Definition at line 700 of file grpcpp/impl/codegen/async_stream.h.

Member Function Documentation

◆ BindCall()

template<class W , class R >

void grpc::ServerAsyncReader< W, R >::BindCall ( grpc::internal::Call * call )

inlineoverrideprivatevirtual

Implements grpc::internal::ServerAsyncStreamingInterface.

Definition at line 783 of file grpcpp/impl/codegen/async_stream.h.

◆ Finish()

template<class W , class R >

void grpc::ServerAsyncReader< W, R >::Finish	(	const W &	msg,
		const grpc::Status &	status,
		void *	tag
	)

inlineoverridevirtual

See the ServerAsyncReaderInterface.Read method for semantics

Side effect:

also sends initial metadata if not alreay sent.
uses the ServerContext associated with this call to send possible initial and trailing metadata.

Note: msg is not sent if status has a non-OK code.

gRPC doesn't take ownership or a reference to msg and status, so it is safe to deallocate once Finish returns.

Implements grpc::ServerAsyncReaderInterface< W, R >.

Definition at line 738 of file grpcpp/impl/codegen/async_stream.h.

◆ FinishWithError()

template<class W , class R >

void grpc::ServerAsyncReader< W, R >::FinishWithError	(	const grpc::Status &	status,
		void *	tag
	)

inlineoverridevirtual

See the ServerAsyncReaderInterface.Read method for semantics

Side effect:

also sends initial metadata if not alreay sent.
uses the ServerContext associated with this call to send possible initial and trailing metadata.

gRPC doesn't take ownership or a reference to status, so it is safe to to deallocate once FinishWithError returns.

Implements grpc::ServerAsyncReaderInterface< W, R >.

Definition at line 767 of file grpcpp/impl/codegen/async_stream.h.

◆ Read()

template<class W , class R >

void grpc::ServerAsyncReader< W, R >::Read	(	R *	msg,
		void *	tag
	)

inlineoverridevirtual

Read a message of type R into msg. Completion will be notified by tag on the associated completion queue. This is thread-safe with respect to Write or WritesDone methods. It should not be called concurrently with other streaming APIs on the same stream. It is not meaningful to call it concurrently with another AsyncReaderInterface::Read on the same stream since reads on the same stream are delivered in order.

Parameters

[out]	msg	Where to eventually store the read message.
[in]	tag	The tag identifying the operation.

Side effect: note that this method attempt to receive initial metadata for a stream if it hasn't yet been received.

Implements grpc::internal::AsyncReaderInterface< R >.

Definition at line 721 of file grpcpp/impl/codegen/async_stream.h.

◆ SendInitialMetadata()

template<class W , class R >

void grpc::ServerAsyncReader< W, R >::SendInitialMetadata ( void * tag )

inlineoverridevirtual

See ServerAsyncStreamingInterface::SendInitialMetadata for semantics.

Implicit input parameter:

The initial metadata that will be sent to the client from this op will be taken from the ServerContext associated with the call.

grpc::internal::CallOpSet<grpc::internal::CallOpRecvMessage<R> > grpc::ServerAsyncReader< W, R >::read_ops_

private

Definition at line 789 of file grpcpp/impl/codegen/async_stream.h.

The documentation for this class was generated from the following file:

grpcpp/impl/codegen/async_stream.h
