#include <async_stream.h>

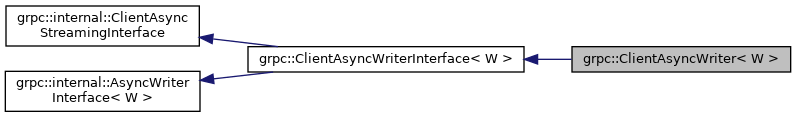

Inheritance diagram for grpc::ClientAsyncWriter< W >:

[legend]

Public Member Functions
void	Finish (grpc::Status status, void tag) override

void	ReadInitialMetadata (void *tag) override

void	StartCall (void *tag) override

void	Write (const W &msg, grpc::WriteOptions options, void *tag) override

void	Write (const W &msg, void *tag) override

void	WritesDone (void *tag) override

Public Member Functions inherited from grpc::internal::ClientAsyncStreamingInterface
virtual	~ClientAsyncStreamingInterface ()

Public Member Functions inherited from grpc::internal::AsyncWriterInterface< W >
void	WriteLast (const W &msg, grpc::WriteOptions options, void *tag)

virtual	~AsyncWriterInterface ()

Static Public Member Functions
static void	operator delete (void *, std::size_t size)

static void	operator delete (void , void )

Private Member Functions
template<class R >
	ClientAsyncWriter (grpc::internal::Call call, grpc::ClientContext context, R response, bool start, void *tag)

void	StartCallInternal (void *tag)

Friends
class	internal::ClientAsyncWriterFactory< W >

Detailed Description

template<class W>
class grpc::ClientAsyncWriter< W >

Async API on the client side for doing client-streaming RPCs, where the outgoing message stream going to the server contains messages of type W.

Definition at line 347 of file grpcpp/impl/codegen/async_stream.h.

Constructor & Destructor Documentation

◆ ClientAsyncWriter()

template<class W >

template<class R >

grpc::ClientAsyncWriter< W >::ClientAsyncWriter	(	grpc::internal::Call	call,
		grpc::ClientContext *	context,
		R *	response,
		bool	start,
		void *	tag
	)

inlineprivate

Definition at line 430 of file grpcpp/impl/codegen/async_stream.h.

Member Function Documentation

◆ Finish()

template<class W >

void grpc::ClientAsyncWriter< W >::Finish	(	grpc::Status *	status,
		void *	tag
	)

inlineoverridevirtual

See the ClientAsyncStreamingInterface.Finish method for semantics.

Side effect:

the ClientContext associated with this call is updated with possible initial and trailing metadata received from the server.
attempts to fill in the response parameter passed to this class's constructor with the server's response message.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 417 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [1/2]

template<class W >

static void grpc::ClientAsyncWriter< W >::operator delete	(	void *	,
		std::size_t	size
	)

inlinestatic

Definition at line 350 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [2/2]

template<class W >

static void grpc::ClientAsyncWriter< W >::operator delete	(	void *	,
		void *
	)

inlinestatic

Definition at line 359 of file grpcpp/impl/codegen/async_stream.h.

◆ ReadInitialMetadata()

template<class W >

void grpc::ClientAsyncWriter< W >::ReadInitialMetadata ( void * tag )

inlineoverridevirtual

See the ClientAsyncStreamingInterface.ReadInitialMetadata method for semantics.

Side effect:

upon receiving initial metadata from the server, the ClientContext associated with this call is updated, and the calling code can access the received metadata through the ClientContext.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 374 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCall()

template<class W >

void grpc::ClientAsyncWriter< W >::StartCall ( void * tag )

inlineoverridevirtual

Start the call that was set up by the constructor, but only if the constructor was invoked through the "Prepare" API which doesn't actually start the call

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 361 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCallInternal()

template<class W >

void grpc::ClientAsyncWriter< W >::StartCallInternal ( void * tag )

inlineprivate

Definition at line 442 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [1/2]

template<class W >

void grpc::ClientAsyncWriter< W >::Write	(	const W &	msg,
		grpc::WriteOptions	options,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg using WriteOptions options with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. WriteOptions options is used to set the write options of this message. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters

[in]	msg	The message to be written.
[in]	options	The WriteOptions to be used to write this message.
[in]	tag	The tag identifying the operation.

Implements grpc::internal::AsyncWriterInterface< W >.

Definition at line 391 of file grpcpp/impl/codegen/async_stream.h.

◆ Write() [2/2]

template<class W >

void grpc::ClientAsyncWriter< W >::Write	(	const W &	msg,
		void *	tag
	)

inlineoverridevirtual

Request the writing of msg with identifying tag tag.

Only one write may be outstanding at any given time. This means that after calling Write, one must wait to receive tag from the completion queue BEFORE calling Write again. This is thread-safe with respect to AsyncReaderInterface::Read

gRPC doesn't take ownership or a reference to msg, so it is safe to to deallocate once Write returns.

Parameters

[in]	msg	The message to be written.
[in]	tag	The tag identifying the operation.

Implements grpc::internal::AsyncWriterInterface< W >.

Definition at line 383 of file grpcpp/impl/codegen/async_stream.h.

◆ WritesDone()

template<class W >

void grpc::ClientAsyncWriter< W >::WritesDone ( void * tag )

inlineoverridevirtual

Signal the client is done with the writes (half-close the client stream). Thread-safe with respect to AsyncReaderInterface::Read

Parameters

[in] tag The tag identifying the operation.

Implements grpc::ClientAsyncWriterInterface< W >.

Definition at line 403 of file grpcpp/impl/codegen/async_stream.h.

Friends And Related Function Documentation

◆ internal::ClientAsyncWriterFactory< W >

template<class W >

template<class W >

grpc::internal::CallOpSet<grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpClientSendClose> grpc::ClientAsyncWriter< W >::write_ops_

private

Definition at line 461 of file grpcpp/impl/codegen/async_stream.h.

The documentation for this class was generated from the following file:

grpcpp/impl/codegen/async_stream.h

Private Attributes
grpc::internal::Call	call_

grpc::ClientContext *	context_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata, grpc::internal::CallOpGenericRecvMessage, grpc::internal::CallOpClientRecvStatus >	finish_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata >	meta_ops_

bool	started_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpClientSendClose >	write_ops_

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

template<class W> class grpc::ClientAsyncWriter< W >

Constructor & Destructor Documentation

◆ ClientAsyncWriter()

Member Function Documentation

◆ Finish()

◆ operator delete() [1/2]

◆ operator delete() [2/2]

◆ ReadInitialMetadata()

◆ StartCall()

◆ StartCallInternal()

◆ Write() [1/2]

◆ Write() [2/2]

◆ WritesDone()

Friends And Related Function Documentation

◆ internal::ClientAsyncWriterFactory< W >

Member Data Documentation

◆ call_

◆ context_

◆ finish_ops_

◆ meta_ops_

◆ started_

◆ write_ops_

template<class W>
class grpc::ClientAsyncWriter< W >
