#include <async_stream.h>

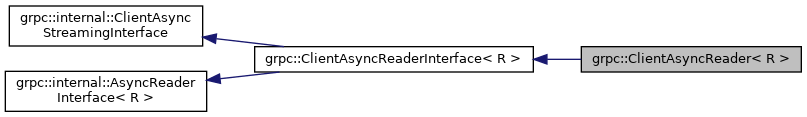

Inheritance diagram for grpc::ClientAsyncReader< R >:

[legend]

Public Member Functions
void	Finish (grpc::Status status, void tag) override

void	Read (R msg, void tag) override

void	ReadInitialMetadata (void *tag) override

void	StartCall (void *tag) override

Public Member Functions inherited from grpc::internal::ClientAsyncStreamingInterface
virtual	~ClientAsyncStreamingInterface ()

Public Member Functions inherited from grpc::internal::AsyncReaderInterface< R >
virtual	~AsyncReaderInterface ()

Static Public Member Functions
static void	operator delete (void *, std::size_t size)

static void	operator delete (void , void )

Private Member Functions
template<class W >
	ClientAsyncReader (grpc::internal::Call call, grpc::ClientContext context, const W &request, bool start, void tag)

void	StartCallInternal (void *tag)

Friends
class	internal::ClientAsyncReaderFactory< R >

Detailed Description

template<class R>
class grpc::ClientAsyncReader< R >

Async client-side API for doing server-streaming RPCs, where the incoming message stream coming from the server has messages of type R.

Definition at line 199 of file grpcpp/impl/codegen/async_stream.h.

Constructor & Destructor Documentation

◆ ClientAsyncReader()

template<class R >

template<class W >

grpc::ClientAsyncReader< R >::ClientAsyncReader	(	grpc::internal::Call	call,
		grpc::ClientContext *	context,
		const W &	request,
		bool	start,
		void *	tag
	)

inlineprivate

Definition at line 264 of file grpcpp/impl/codegen/async_stream.h.

Member Function Documentation

◆ Finish()

template<class R >

void grpc::ClientAsyncReader< R >::Finish	(	grpc::Status *	status,
		void *	tag
	)

inlineoverridevirtual

See the ClientAsyncStreamingInterface.Finish method for semantics.

Side effect:

the ClientContext associated with this call is updated with possible initial and trailing metadata received from the server.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 251 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [1/2]

template<class R >

static void grpc::ClientAsyncReader< R >::operator delete	(	void *	,
		std::size_t	size
	)

inlinestatic

Definition at line 202 of file grpcpp/impl/codegen/async_stream.h.

◆ operator delete() [2/2]

template<class R >

static void grpc::ClientAsyncReader< R >::operator delete	(	void *	,
		void *
	)

inlinestatic

Definition at line 211 of file grpcpp/impl/codegen/async_stream.h.

◆ Read()

template<class R >

void grpc::ClientAsyncReader< R >::Read	(	R *	msg,
		void *	tag
	)

inlineoverridevirtual

Read a message of type R into msg. Completion will be notified by tag on the associated completion queue. This is thread-safe with respect to Write or WritesDone methods. It should not be called concurrently with other streaming APIs on the same stream. It is not meaningful to call it concurrently with another AsyncReaderInterface::Read on the same stream since reads on the same stream are delivered in order.

Parameters

[out]	msg	Where to eventually store the read message.
[in]	tag	The tag identifying the operation.

Side effect: note that this method attempt to receive initial metadata for a stream if it hasn't yet been received.

Implements grpc::internal::AsyncReaderInterface< R >.

Definition at line 236 of file grpcpp/impl/codegen/async_stream.h.

◆ ReadInitialMetadata()

template<class R >

void grpc::ClientAsyncReader< R >::ReadInitialMetadata ( void * tag )

inlineoverridevirtual

See the ClientAsyncStreamingInterface.ReadInitialMetadata method for semantics.

Side effect:

upon receiving initial metadata from the server, the ClientContext associated with this call is updated, and the calling code can access the received metadata through the ClientContext.

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 227 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCall()

template<class R >

void grpc::ClientAsyncReader< R >::StartCall ( void * tag )

inlineoverridevirtual

Start the call that was set up by the constructor, but only if the constructor was invoked through the "Prepare" API which doesn't actually start the call

Implements grpc::internal::ClientAsyncStreamingInterface.

Definition at line 213 of file grpcpp/impl/codegen/async_stream.h.

◆ StartCallInternal()

template<class R >

void grpc::ClientAsyncReader< R >::StartCallInternal ( void * tag )

inlineprivate

Definition at line 277 of file grpcpp/impl/codegen/async_stream.h.

Friends And Related Function Documentation

◆ internal::ClientAsyncReaderFactory< R >

template<class R >

template<class R >

bool grpc::ClientAsyncReader< R >::started_

private

Definition at line 286 of file grpcpp/impl/codegen/async_stream.h.

The documentation for this class was generated from the following file:

grpcpp/impl/codegen/async_stream.h

Private Attributes
grpc::internal::Call	call_

grpc::ClientContext *	context_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata, grpc::internal::CallOpClientRecvStatus >	finish_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpSendInitialMetadata, grpc::internal::CallOpSendMessage, grpc::internal::CallOpClientSendClose >	init_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata >	meta_ops_

grpc::internal::CallOpSet< grpc::internal::CallOpRecvInitialMetadata, grpc::internal::CallOpRecvMessage< R > >	read_ops_

bool	started_
