alts_handshaker_client.h File Reference

#include <grpc/support/port_platform.h>
#include <grpc/byte_buffer.h>
#include <grpc/byte_buffer_reader.h>
#include <grpc/grpc.h>
#include "src/core/lib/iomgr/closure.h"
#include "src/core/lib/iomgr/pollset_set.h"
#include "src/core/tsi/alts/handshaker/alts_tsi_handshaker.h"
#include "src/core/tsi/transport_security_interface.h"

Include dependency graph for alts_handshaker_client.h:

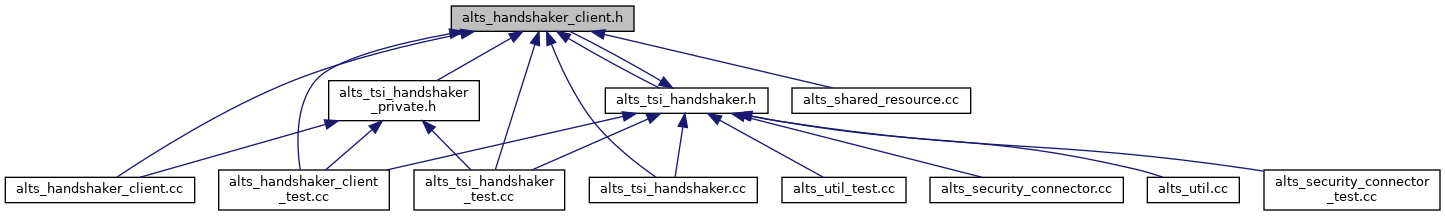

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	alts_handshaker_client_vtable

Macros
#define	ALTS_APPLICATION_PROTOCOL   "grpc"
#define	ALTS_HANDSHAKER_SERVICE_URL_FOR_TESTING   "lame"
#define	ALTS_RECORD_PROTOCOL   "ALTSRP_GCM_AES128_REKEY"
#define	ALTS_SERVICE_METHOD   "/grpc.gcp.HandshakerService/DoHandshake"

Typedefs
typedef grpc_call_error(*	alts_grpc_caller) (grpc_call *call, const grpc_op *ops, size_t nops, grpc_closure *tag)
typedef struct alts_handshaker_client	alts_handshaker_client
typedef struct alts_handshaker_client_vtable	alts_handshaker_client_vtable
typedef struct alts_tsi_handshaker	alts_tsi_handshaker

Functions
alts_handshaker_client *	alts_grpc_handshaker_client_create (alts_tsi_handshaker *handshaker, grpc_channel *channel, const char *handshaker_service_url, grpc_pollset_set *interested_parties, grpc_alts_credentials_options *options, const grpc_slice &target_name, grpc_iomgr_cb_func grpc_cb, tsi_handshaker_on_next_done_cb cb, void *user_data, alts_handshaker_client_vtable *vtable_for_testing, bool is_client, size_t max_frame_size)
void	alts_handshaker_client_destroy (alts_handshaker_client *client)
void	alts_handshaker_client_handle_response (alts_handshaker_client *client, bool is_ok)
tsi_result	alts_handshaker_client_next (alts_handshaker_client *client, grpc_slice *bytes_received)
void	alts_handshaker_client_shutdown (alts_handshaker_client *client)
tsi_result	alts_handshaker_client_start_client (alts_handshaker_client *client)
tsi_result	alts_handshaker_client_start_server (alts_handshaker_client *client, grpc_slice *bytes_received)

Variables
const size_t	kAltsAes128GcmRekeyKeyLength = 44

Macro Definition Documentation

ALTS_APPLICATION_PROTOCOL

#define ALTS_APPLICATION_PROTOCOL   "grpc"

Definition at line 34 of file alts_handshaker_client.h.

ALTS_HANDSHAKER_SERVICE_URL_FOR_TESTING

#define ALTS_HANDSHAKER_SERVICE_URL_FOR_TESTING   "lame"

Definition at line 36 of file alts_handshaker_client.h.

ALTS_RECORD_PROTOCOL

#define ALTS_RECORD_PROTOCOL   "ALTSRP_GCM_AES128_REKEY"

Definition at line 35 of file alts_handshaker_client.h.

ALTS_SERVICE_METHOD

#define ALTS_SERVICE_METHOD   "/grpc.gcp.HandshakerService/DoHandshake"

Definition at line 33 of file alts_handshaker_client.h.

Typedef Documentation

alts_grpc_caller

typedef grpc_call_error(* alts_grpc_caller) (grpc_call *call, const grpc_op *ops, size_t nops, grpc_closure *tag)

Definition at line 50 of file alts_handshaker_client.h.

alts_handshaker_client

typedef struct alts_handshaker_client alts_handshaker_client

A ALTS handshaker client interface. It is used to communicate with ALTS handshaker service by scheduling a handshaker request that could be one of client_start, server_start, and next handshaker requests. All APIs in the header are thread-compatible.

Definition at line 47 of file alts_handshaker_client.h.

alts_handshaker_client_vtable

typedef struct alts_handshaker_client_vtable alts_handshaker_client_vtable

alts_tsi_handshaker

typedef struct alts_tsi_handshaker alts_tsi_handshaker

Definition at line 40 of file alts_handshaker_client.h.

Function Documentation

alts_grpc_handshaker_client_create()

alts_handshaker_client* alts_grpc_handshaker_client_create	(	alts_tsi_handshaker *	handshaker,
		grpc_channel *	channel,
		const char *	handshaker_service_url,
		grpc_pollset_set *	interested_parties,
		grpc_alts_credentials_options *	options,
		const grpc_slice &	target_name,
		grpc_iomgr_cb_func	grpc_cb,
		tsi_handshaker_on_next_done_cb	cb,
		void *	user_data,
		alts_handshaker_client_vtable *	vtable_for_testing,
		bool	is_client,
		size_t	max_frame_size
	)

This method creates an ALTS handshaker client.

• handshaker: ALTS TSI handshaker to which the created handshaker client belongs to.
• channel: grpc channel to ALTS handshaker service.
• handshaker_service_url: address of ALTS handshaker service in the format of "host:port".
• interested_parties: set of pollsets interested in this connection.
• options: ALTS credentials options containing information passed from TSI caller (e.g., rpc protocol versions)
• target_name: the name of the endpoint that the channel is connecting to, and will be used for secure naming check
• grpc_cb: gRPC provided callbacks passed from TSI handshaker.
• cb: callback to be executed when tsi_handshaker_next API compltes.
• user_data: argument passed to cb.
• vtable_for_testing: ALTS handshaker client vtable instance used for testing purpose.
• is_client: a boolean value indicating if the created handshaker client is used at the client (is_client = true) or server (is_client = false) side.
• max_frame_size: Maximum frame size used by frame protector (User specified maximum frame size if present or default max frame size).

It returns the created ALTS handshaker client on success, and NULL on failure.

Definition at line 687 of file alts_handshaker_client.cc.

alts_handshaker_client_destroy()

void alts_handshaker_client_destroy

(

alts_handshaker_client *

client

)

This method destroys an ALTS handshaker client.

• client: an ALTS handshaker client instance.

Definition at line 902 of file alts_handshaker_client.cc.

alts_handshaker_client_handle_response()

void alts_handshaker_client_handle_response	(	alts_handshaker_client *	client,
		bool	is_ok
	)

This method handles handshaker response returned from ALTS handshaker service. Note that the only reason the API is exposed is that it is used in alts_shared_resources.cc.

• client: an ALTS handshaker client instance.
• is_ok: a boolean value indicating if the handshaker response is ok to read.

Definition at line 190 of file alts_handshaker_client.cc.

alts_handshaker_client_next()

tsi_result alts_handshaker_client_next	(	alts_handshaker_client *	client,
		grpc_slice *	bytes_received
	)

This method schedules a next handshaker request to ALTS handshaker service.

• client: ALTS handshaker client instance.
• bytes_received: bytes in out_frames returned from the peer's handshaker response.

It returns TSI_OK on success and an error status code on failure.

Definition at line 884 of file alts_handshaker_client.cc.

alts_handshaker_client_shutdown()

void alts_handshaker_client_shutdown

(

alts_handshaker_client *

client

)

This method cancels previously scheduled, but yet executed handshaker requests to ALTS handshaker service. After this operation, the handshake will be shutdown, and no more handshaker requests will get scheduled.

• client: ALTS handshaker client instance.

Definition at line 895 of file alts_handshaker_client.cc.

alts_handshaker_client_start_client()

tsi_result alts_handshaker_client_start_client

(

alts_handshaker_client *

client

)

This method schedules a client_start handshaker request to ALTS handshaker service.

• client: ALTS handshaker client instance.

It returns TSI_OK on success and an error status code on failure.

Definition at line 863 of file alts_handshaker_client.cc.

alts_handshaker_client_start_server()

tsi_result alts_handshaker_client_start_server	(	alts_handshaker_client *	client,
		grpc_slice *	bytes_received
	)

This method schedules a server_start handshaker request to ALTS handshaker service.

• client: ALTS handshaker client instance.
• bytes_received: bytes in out_frames returned from the peer's handshaker response.

It returns TSI_OK on success and an error status code on failure.

Definition at line 873 of file alts_handshaker_client.cc.

Variable Documentation

kAltsAes128GcmRekeyKeyLength

const size_t kAltsAes128GcmRekeyKeyLength = 44

Definition at line 38 of file alts_handshaker_client.h.
