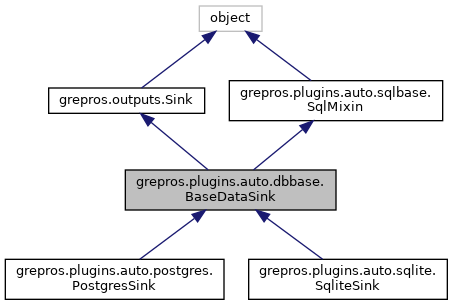

Inheritance diagram for grepros.plugins.auto.dbbase.BaseDataSink:
Public Member Functions | |
| def | __init__ (self, args=None, **kwargs) |
| def | close (self) |
| def | close_output (self) |
| def | emit (self, topic, msg, stamp=None, match=None, index=None) |
| def | validate (self) |
 Public Member Functions inherited from grepros.outputs.Sink | |
| def | __enter__ (self) |
| def | __exit__ (self, exc_type, exc_value, traceback) |
| def | autodetect (cls, target) |
| def | bind (self, source) |
| def | emit_meta (self) |
| def | flush (self) |
| def | is_highlighting (self) |
| def | thread_excepthook (self, text, exc) |
Public Attributes | |
| COMMIT_INTERVAL | |
| db | |
| Database connection. More... | |
| Public Attributes inherited from grepros.outputs.Sink | |
| args | |
| source | |
| inputs.Source instance bound to this sink More... | |
| valid | |
| Result of validate() More... | |
Static Public Attributes | |
| int | COMMIT_INTERVAL = 1000 |
| Number of emits between commits; 0 is autocommit. More... | |
| DEFAULT_ARGS = dict(META=False, WRITE_OPTIONS={}, VERBOSE=False) | |
| Constructor argument defaults. More... | |
| ENGINE = None | |
| Database engine name, overridden in subclasses. More... | |
| list | MESSAGE_TYPE_BASECOLS |
| Default columns for pkg/MsgType tables. More... | |
| list | MESSAGE_TYPE_NESTCOLS |
| Additional default columns for pkg/MsgType tables with nesting output. More... | |
| list | MESSAGE_TYPE_TOPICCOLS |
| Default topic-related columns for pkg/MsgType tables. More... | |
| Static Public Attributes inherited from grepros.outputs.Sink | |
| DEFAULT_ARGS = dict(META=False) | |
| Constructor argument defaults. More... | |
| tuple | FILE_EXTENSIONS = () |
| Auto-detection file extensions for subclasses, as (".ext", ) More... | |
| Static Public Attributes inherited from grepros.plugins.auto.sqlbase.SqlMixin | |
| DEFAULT_ARGS = dict(META=False, WRITE_OPTIONS={}, MATCH_WRAPPER=None, VERBOSE=False) | |
| Constructor argument defaults. More... | |
| string | DEFAULT_DIALECT = "sqlite" |
| Default SQL dialect used if dialect not specified. More... | |
| dictionary | DIALECTS |
| Supported SQL dialects and options. More... | |
| list | KEYWORDS |
| Words that need quoting if in name context, like table name. More... | |
Private Member Functions | |
| def | _connect (self) |
| def | _ensure_columns (self, cols) |
| def | _ensure_execute (self, sql, args) |
| def | _execute_insert (self, sql, args) |
| def | _executemany (self, sql, argses) |
| def | _executescript (self, sql) |
| def | _get_next_id (self, table) |
| def | _init_db (self) |
| def | _load_schema (self) |
| def | _make_cursor (self) |
| def | _make_db_label (self) |
| def | _populate_type (self, topic, msg, stamp, rootmsg=None, parent_type=None, parent_id=None) |
| def | _process_message (self, topic, msg, stamp) |
| def | _process_topic (self, topic, msg) |
| def | _process_type (self, msg, rootmsg=None) |
Private Attributes | |
| _checkeds | |
| _close_printed | |
| _cursor | |
| _dialect | |
| _nested_counts | |
| _nesting | |
| _sql_queue | |
Detailed Description
Base class for writing messages to a database. Output will have: - table "topics", with topic and message type names - table "types", with message type definitions plus: - table "pkg/MsgType" for each topic message type, with detailed fields, BYTEA fields for uint8[], array fields for scalar list attributes, and JSONB fields for lists of ROS messages; with foreign keys if nesting else subtype values as JSON dictionaries; plus underscore-prefixed fields for metadata, like `_topic` as the topic name. If not nesting, only topic message type tables are created. - view "/full/topic/name" for each topic, selecting from the message type table If a message type table already exists but for a type with a different MD5 hash, the new table will have its MD5 hash appended to end, as "pkg/MsgType (hash)".
Constructor & Destructor Documentation
◆ __init__()
| def grepros.plugins.auto.dbbase.BaseDataSink.__init__ | ( | self, | |
args = None, |
|||
| ** | kwargs | ||
| ) |
@param args arguments as namespace or dictionary, case-insensitive;
or a single item as the database connection string
@param args.write database connection string
@param args.write_options ```
{"commit-interval": transaction size (0 is autocommit),
"nesting": "array" to recursively insert arrays
of nested types, or "all" for any nesting)}
```
@param args.meta whether to emit metainfo
@param args.verbose whether to emit debug information
@param kwargs any and all arguments as keyword overrides, case-insensitive
Reimplemented from grepros.outputs.Sink.
Reimplemented in grepros.plugins.auto.postgres.PostgresSink, and grepros.plugins.auto.sqlite.SqliteSink.
Member Function Documentation
◆ _connect()
|
private |
Returns new database connection.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _ensure_columns()
|
private |
◆ _ensure_execute()
|
private |
◆ _execute_insert()
|
private |
Executes INSERT statement, returns inserted ID.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _executemany()
|
private |
Executes SQL with all args sequences.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _executescript()
|
private |
Executes SQL with one or more statements.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _get_next_id()
|
private |
Returns next ID value for table.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _init_db()
|
private |
Opens database connection, and populates schema if not already existing.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _load_schema()
|
private |
Populates instance attributes with schema metainfo.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _make_cursor()
|
private |
◆ _make_db_label()
|
private |
Returns formatted label for database.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink, and grepros.plugins.auto.postgres.PostgresSink.
◆ _populate_type()
|
private |
◆ _process_message()
|
private |
Inserts pkg/MsgType row for this message. Inserts sub-rows for subtypes in message if nesting enabled. Commits transaction if interval due.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink.
◆ _process_topic()
|
private |
◆ _process_type()
|
private |
◆ close()
| def grepros.plugins.auto.dbbase.BaseDataSink.close | ( | self | ) |
Closes database connection, if any, emits metainfo.
Reimplemented from grepros.outputs.Sink.
◆ close_output()
| def grepros.plugins.auto.dbbase.BaseDataSink.close_output | ( | self | ) |
◆ emit()
| def grepros.plugins.auto.dbbase.BaseDataSink.emit | ( | self, | |
| topic, | |||
| msg, | |||
stamp = None, |
|||
match = None, |
|||
index = None |
|||
| ) |
Writes message to database.
Reimplemented from grepros.outputs.Sink.
Reimplemented in grepros.plugins.auto.sqlite.SqliteSink.
◆ validate()
| def grepros.plugins.auto.dbbase.BaseDataSink.validate | ( | self | ) |
Returns whether args.write_options has valid values, if any. Checks parameters "commit-interval" and "nesting".
Reimplemented from grepros.outputs.Sink.
Reimplemented in grepros.plugins.auto.postgres.PostgresSink, and grepros.plugins.auto.sqlite.SqliteSink.
Member Data Documentation
◆ _checkeds
◆ _close_printed
|
private |
◆ _cursor
◆ _dialect
◆ _nested_counts
|
private |
◆ _nesting
◆ _sql_queue
|
private |
◆ COMMIT_INTERVAL [1/2]
|
static |
◆ COMMIT_INTERVAL [2/2]
◆ db
| grepros.plugins.auto.dbbase.BaseDataSink.db |
◆ DEFAULT_ARGS
|
static |
◆ ENGINE
|
static |
◆ MESSAGE_TYPE_BASECOLS
|
static |
◆ MESSAGE_TYPE_NESTCOLS
|
static |
◆ MESSAGE_TYPE_TOPICCOLS
|
static |
The documentation for this class was generated from the following file:
