gnsstk::FFStream Class Reference

Detailed Description

Formatted File Stream (FFStream). This is just a root class to provide the single point formatted i/o operators (such as '<<' & '>>' ).

As a special design consideration, all exceptions thrown are based on gnsstk::Exception - all std::exception throws are rethrown as gnsstk::Exception. Furthermore, exceptions will not be thrown unless exceptions are set to be thrown:

fs.exceptions(std::fstream::failbit);

where fs is the name of your file stream. Then when an exception occurs, conditionalThrow() will throw the last thrown exception. Otherwise when an exception occurs, the stream sets ios::fail and will not read any more. Exceptions for this class store the record number of the file for when the exception occurred as well as the file name and any detailed information about the error. For gnsstk::FFTextStream, the line number of the file where the error was found is also recorded, allowing for easy location of file problems.

When operating on the file, recordNumber will automatically increment with each read and write operation. When a file is opened with the constructor or with open(), all internal FFStream variables are reset. Derived classes should make sure any of their internal variables are reset when either of those function are called.

Many file types have header data as part of the file format. When reading the file, the reader is not required to explicitly read in the header to access the data. To facilitate this, each of these stream classes has an internal header object that will store the header. The stream keeps track of whether it read the header or not, and reads the header if the internal state says it hasn't been read. When writing a file, the stream's internal header is used for those formats which use header information to determine what data is in the records. See RinexObsHeader::reallyGetRecord() and RinexObsData::reallyGetRecord() for an example of this.

See also

FFData for more information

RinexObsData::reallyGetRecord() and RinexObsHeader::reallyGetRecord() for more information for files that read header data.

Warning

When using open(), the internal header data of the stream is not guaranteed to be retained.

Definition at line 119 of file FFStream.hpp.

#include <FFStream.hpp>

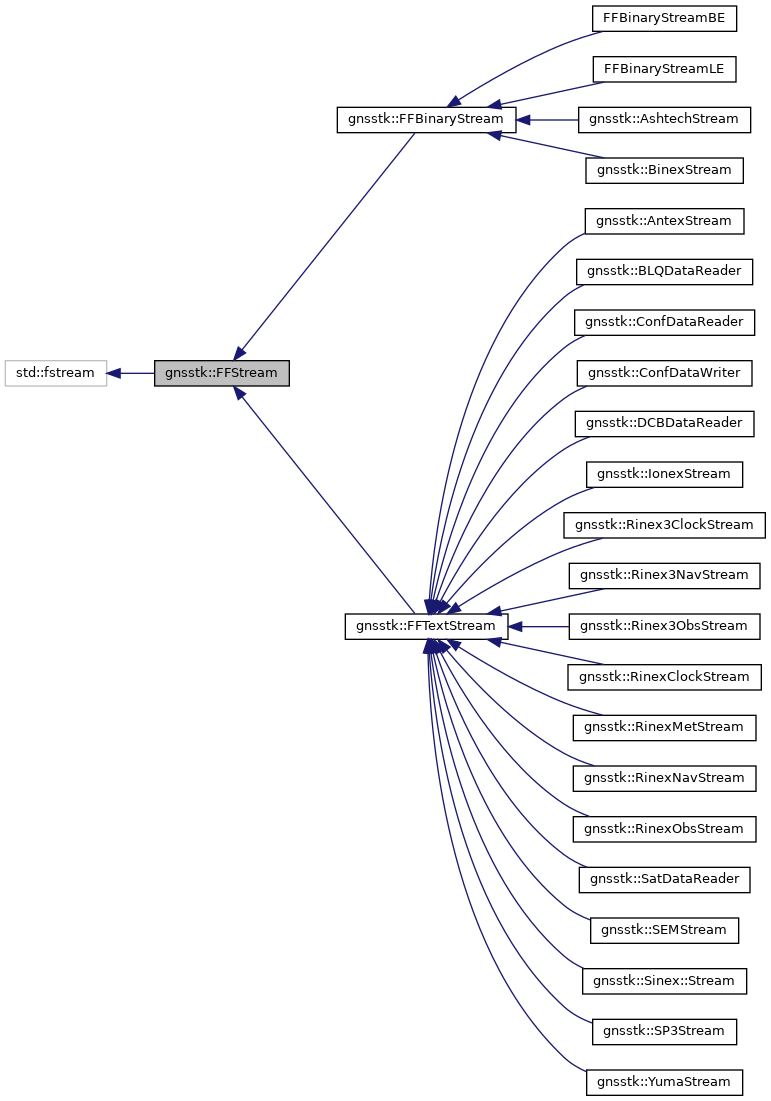

Inheritance diagram for gnsstk::FFStream:

Public Member Functions
void	conditionalThrow (void)
void	dumpState (std::ostream &s=std::cout) const
	A function to help debug FFStreams. More...
	FFStream ()
	Default constructor, initialize internal data. More...
	FFStream (const char *fn, std::ios::openmode mode=std::ios::in)
	FFStream (const std::string &fn, std::ios::openmode mode=std::ios::in)
virtual void	open (const char *fn, std::ios::openmode mode)
virtual void	open (const std::string &fn, std::ios::openmode mode)
virtual	~FFStream ()
	Virtual destructor, close the stream etc. More...

Static Public Member Functions
static bool	isFFStream (std::istream &i)
	Check if the input stream is the kind of RinexObsStream. More...

Public Attributes
std::string	filename
	file name More...
FFStreamError	mostRecentException
	This stores the most recently thrown exception. More...
unsigned int	recordNumber
	keeps track of the number of records read More...

Protected Member Functions
virtual void	tryFFStreamGet (FFData &rec)
virtual void	tryFFStreamPut (const FFData &rec)

Private Member Functions
void	init (const char *fn, std::ios::openmode mode)
	Initialize internal data structures according to file name & mode. More...

Friends
class	FFData
	FFData is a friend so it can access the try* functions. More...

Constructor & Destructor Documentation

FFStream() [1/3]

gnsstk::FFStream::FFStream

(

)

Default constructor, initialize internal data.

Definition at line 49 of file FFStream.cpp.

~FFStream()

gnsstk::FFStream::~FFStream ( )

virtual

Virtual destructor, close the stream etc.

Definition at line 56 of file FFStream.cpp.

FFStream() [2/3]

gnsstk::FFStream::FFStream	(	const char *	fn,
		std::ios::openmode	mode = std::ios::in
	)

Common constructor.

Parameters

[in]	fn	file name.
[in]	mode	file open mode (std::ios)

Definition at line 62 of file FFStream.cpp.

FFStream() [3/3]

gnsstk::FFStream::FFStream	(	const std::string &	fn,
		std::ios::openmode	mode = std::ios::in
	)

Common constructor.

Parameters

[in]	fn	file name.
[in]	mode	file open mode (std::ios)

Definition at line 82 of file FFStream.cpp.

Member Function Documentation

conditionalThrow()

void gnsstk::FFStream::conditionalThrow ( void  )

inline

Throws mostRecentException only if the stream is enabled to throw exceptions when failbit is set. You can set this behavior with the following line of code:

ffstreamobject.exceptions(ifstream::failbit);

where ffstreamobject is the name of your stream object.

Exceptions

FFStreamError

Definition at line 213 of file FFStream.hpp.

dumpState()

void gnsstk::FFStream::dumpState

(

std::ostream &

s = std::cout

)

const

A function to help debug FFStreams.

Definition at line 141 of file FFStream.cpp.

init()

void gnsstk::FFStream::init ( const char *  fn, std::ios::openmode  mode  )

private

Initialize internal data structures according to file name & mode.

Definition at line 115 of file FFStream.cpp.

isFFStream()

bool gnsstk::FFStream::isFFStream ( std::istream &  i )

static

Check if the input stream is the kind of RinexObsStream.

Definition at line 125 of file FFStream.cpp.

open() [1/2]

void gnsstk::FFStream::open ( const char *  fn, std::ios::openmode  mode  )

virtual

Overrides fstream::open so derived classes can make appropriate internal changes (line count, header info, etc).

Reimplemented in gnsstk::AshtechStream, gnsstk::RinexObsStream, gnsstk::Rinex3ObsStream, gnsstk::RinexClockStream, gnsstk::FFTextStream, gnsstk::SEMStream, gnsstk::RinexMetStream, gnsstk::YumaStream, gnsstk::IonexStream, gnsstk::FFBinaryStream, gnsstk::Rinex3NavStream, gnsstk::AntexStream, gnsstk::RinexNavStream, gnsstk::SP3Stream, and gnsstk::Rinex3ClockStream.

Definition at line 100 of file FFStream.cpp.

open() [2/2]

void gnsstk::FFStream::open ( const std::string &  fn, std::ios::openmode  mode  )

virtual

Overrides fstream:open so derived classes can make appropriate internal changes (line count, header info, etc).

Reimplemented in gnsstk::RinexObsStream, gnsstk::Rinex3ObsStream, gnsstk::RinexClockStream, and gnsstk::FFTextStream.

Definition at line 92 of file FFStream.cpp.

tryFFStreamGet()

void gnsstk::FFStream::tryFFStreamGet ( FFData &  rec )

protectedvirtual

Encapsulates shared try/catch blocks for all file types to hide std::exception.

Exceptions

FFStreamError
StringUtils::StringException

Reimplemented in gnsstk::FFTextStream.

Definition at line 162 of file FFStream.cpp.

tryFFStreamPut()

void gnsstk::FFStream::tryFFStreamPut ( const FFData &  rec )

protectedvirtual

Encapsulates shared try/catch blocks for all file types to hide std::exception.

Exceptions

FFStreamError
StringUtils::StringException

Reimplemented in gnsstk::FFTextStream.

Definition at line 284 of file FFStream.cpp.

Friends And Related Function Documentation

FFData

friend class FFData

friend

FFData is a friend so it can access the try* functions.

Definition at line 182 of file FFStream.hpp.

Member Data Documentation

filename

std::string gnsstk::FFStream::filename

file name

Definition at line 179 of file FFStream.hpp.

mostRecentException

FFStreamError gnsstk::FFStream::mostRecentException

This stores the most recently thrown exception.

Definition at line 173 of file FFStream.hpp.

recordNumber

unsigned int gnsstk::FFStream::recordNumber

keeps track of the number of records read

Definition at line 176 of file FFStream.hpp.

---

The documentation for this class was generated from the following files:

• FFStream.hpp
• FFStream.cpp
