Detailed Description
Class containing data elements unique to BeiDou D2 almanac pages.
Definition at line 50 of file BDSD2NavAlm.hpp.
#include <BDSD2NavAlm.hpp>

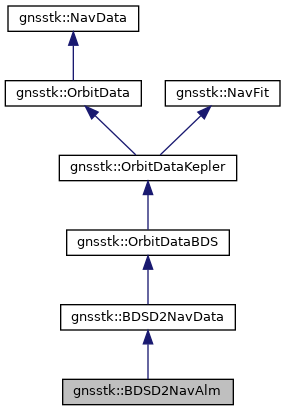

Inheritance diagram for gnsstk::BDSD2NavAlm:
Public Member Functions | |
| BDSD2NavAlm () | |
| Sets the nav message type. More... | |
| NavDataPtr | clone () const override |
| Create a deep copy of this object. More... | |
| void | dumpHarmonics (std::ostream &s) const override |
| void | dumpSVStatus (std::ostream &s) const override |
| void | fixFit () |
| Fill the beginFit and endFit values for this object. More... | |
| bool | validate () const override |
 Public Member Functions inherited from gnsstk::BDSD2NavData | |
| BDSD2NavData () | |
| Initialize data members. More... | |
| bool | validate () const override |
| Public Member Functions inherited from gnsstk::OrbitDataBDS | |
| bool | getXvt (const CommonTime &when, Xvt &xvt, const ObsID &oid=ObsID()) override |
| OrbitDataBDS () | |
| double | svRelativity (const CommonTime &when) const override |
| Public Member Functions inherited from gnsstk::OrbitDataKepler | |
| std::list< std::string > | compare (const NavDataPtr &right) const override |
| void | dump (std::ostream &s, DumpDetail dl) const override |
| virtual void | dumpClock (std::ostream &s) const |
| virtual void | dumpOrbit (std::ostream &s) const |
| virtual std::string | getDataType () const |
| CommonTime | getNearTime () const override |
| bool | getXvt (const CommonTime &when, const EllipsoidModel &ell, Xvt &xvt, const ObsID &oid=ObsID()) |
| bool | isSameData (const NavDataPtr &right) const override |
| OrbitDataKepler () | |
| Initialize all data members to 0. More... | |
| double | svClockBias (const CommonTime &when) const |
| double | svClockDrift (const CommonTime &when) const |
| virtual double | svRelativity (const CommonTime &when, const EllipsoidModel &ell) const |
| Public Member Functions inherited from gnsstk::NavData | |
| virtual std::string | getClassName () const |
| std::string | getDumpTime (DumpDetail dl, const CommonTime &t) const |
| std::string | getDumpTimeHdr (DumpDetail dl) const |
| std::string | getSignalString () const |
| bool | getSVN (const SatID &sat, const gnsstk::CommonTime &when, std::string &svn) const |
| virtual CommonTime | getUserTime () const |
| NavData () | |
| Initialize internal data fields. More... | |
Public Attributes | |
| double | deltai |
| Inclination in rad relative to 0.3*pi rad. More... | |
| uint16_t | healthBits |
| 9 bits of health from sf5,pg7/8. More... | |
| bool | isDefault |
| True if the source page was all 0s for orbit. More... | |
| uint8_t | pnum |
| Almanac page number. More... | |
| double | toa |
| Convenience storage of unqualified toa. More... | |
| Public Attributes inherited from gnsstk::BDSD2NavData | |
| uint8_t | fraID |
| The subframe ID (FraID) from word 1 of the subframe. More... | |
| uint32_t | pre |
| The preamble from word 1 of the subframe. More... | |
| uint32_t | rev |
| The rev field from word 1 of the subframe. More... | |
| uint32_t | sow |
| Seconds of week from word 1-2 of the subframe. More... | |
| Public Attributes inherited from gnsstk::OrbitDataKepler | |
| double | A |
| Semi-major axis (m) More... | |
| double | Adot |
| Rate of semi-major axis (m/sec) More... | |
| double | af0 |
| SV clock error (sec) More... | |
| double | af1 |
| SV clock drift (sec/sec) More... | |
| double | af2 |
| SV clock drift rate (sec/sec**2) More... | |
| double | Ahalf |
| Square Root of semi-major axis (m**.5) More... | |
| double | Cic |
| Cosine inclination (rad) More... | |
| double | Cis |
| Sine inclination (rad) More... | |
| double | Crc |
| Cosine radius (m) More... | |
| double | Crs |
| Sine radius (m) More... | |
| double | Cuc |
| Cosine latitude (rad) More... | |
| double | Cus |
| Sine latitude (rad) More... | |
| double | dn |
| Correction to mean motion (rad/sec) More... | |
| double | dndot |
| Rate of correction to mean motion (rad/sec/sec) More... | |
| double | ecc |
| Eccentricity. More... | |
| RefFrameSys | frame |
| SVHealth | health |
| SV health status. More... | |
| double | i0 |
| Inclination (rad) More... | |
| double | idot |
| Rate of inclination angle (rad/sec) More... | |
| double | M0 |
| Mean anomaly (rad) More... | |
| double | OMEGA0 |
| Longitude of ascending node at weekly epoch (rad) More... | |
| double | OMEGAdot |
| Rate of Rt ascension (rad/sec) More... | |
| CommonTime | Toc |
| Clock epoch. More... | |
| CommonTime | Toe |
| Orbit epoch. More... | |
| double | w |
| Argument of perigee (rad) More... | |
| CommonTime | xmitTime |
| Time of transmission of the start of the data. More... | |
| Public Attributes inherited from gnsstk::NavData | |
| NavMessageID | signal |
| Source signal identification for this navigation message data. More... | |
| CommonTime | timeStamp |
| std::string | weekFmt |
| Public Attributes inherited from gnsstk::NavFit | |
| CommonTime | beginFit |
| Time at beginning of fit interval. More... | |
| CommonTime | endFit |
| Time at end of fit interval. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from gnsstk::NavData | |
| static gnsstk::SatMetaDataStore * | getSatMetaDataStore () |
| Accessor for python. More... | |
| static void | setSatMetaDataStore (gnsstk::SatMetaDataStore *smds) |
| Accessor for python. More... | |
| Static Public Attributes inherited from gnsstk::BDSD2NavData | |
| static constexpr double | refioffset = 0.3 |
| inclination offset, this + delta i = i0, defined in SIS-ICD. More... | |
| Static Public Attributes inherited from gnsstk::OrbitDataKepler | |
| static const size_t | fw = 16 |
| Field width of floating point numbers (precision + 8). More... | |
| static const size_t | precision = 8 |
| Precision used when printing floating point numbers. More... | |
| Static Public Attributes inherited from gnsstk::NavData | |
| static const GNSSTK_EXPORT std::string | dumpTimeFmt |
| Time format used for the dump method (Full). More... | |
| static const GNSSTK_EXPORT std::string | dumpTimeFmtBrief |
| Time format used for the dump method (Brief). More... | |
| static GNSSTK_EXPORT gnsstk::SatMetaDataStore * | satMetaDataStore = nullptr |
| Set this to a valid store to get PRN->SVN translations in dump(). More... | |
| Protected Attributes inherited from gnsstk::NavData | |
| double | msgLenSec |
Constructor & Destructor Documentation
◆ BDSD2NavAlm()
| gnsstk::BDSD2NavAlm::BDSD2NavAlm | ( | ) |
Sets the nav message type.
Definition at line 47 of file BDSD2NavAlm.cpp.
Member Function Documentation
◆ clone()
|
inlineoverridevirtual |
Create a deep copy of this object.
Implements gnsstk::NavData.
Definition at line 56 of file BDSD2NavAlm.hpp.
◆ dumpHarmonics()
|
inlineoverridevirtual |
Override dumpHarmonics to hide them in output since BeiDou almanacs don't contain this data.
Reimplemented from gnsstk::OrbitDataKepler.
Definition at line 68 of file BDSD2NavAlm.hpp.
◆ dumpSVStatus()
|
overridevirtual |
Dump SV status information (e.g. health).
- Parameters
-
[in,out] s The stream to write the data to.
Reimplemented from gnsstk::OrbitDataKepler.
Definition at line 76 of file BDSD2NavAlm.cpp.
◆ fixFit()
| void gnsstk::BDSD2NavAlm::fixFit | ( | ) |
Fill the beginFit and endFit values for this object.
Definition at line 67 of file BDSD2NavAlm.cpp.
◆ validate()
|
overridevirtual |
Checks the contents of this message against known validity rules as defined in the appropriate ICD.
- Todo:
- implement some checking.
- Returns
- true if this message is valid according to ICD criteria.
Implements gnsstk::NavData.
Definition at line 60 of file BDSD2NavAlm.cpp.
Member Data Documentation
◆ deltai
| double gnsstk::BDSD2NavAlm::deltai |
Inclination in rad relative to 0.3*pi rad.
Definition at line 79 of file BDSD2NavAlm.hpp.
◆ healthBits
| uint16_t gnsstk::BDSD2NavAlm::healthBits |
9 bits of health from sf5,pg7/8.
Definition at line 81 of file BDSD2NavAlm.hpp.
◆ isDefault
| bool gnsstk::BDSD2NavAlm::isDefault |
True if the source page was all 0s for orbit.
Definition at line 82 of file BDSD2NavAlm.hpp.
◆ pnum
| uint8_t gnsstk::BDSD2NavAlm::pnum |
Almanac page number.
Definition at line 78 of file BDSD2NavAlm.hpp.
◆ toa
| double gnsstk::BDSD2NavAlm::toa |
Convenience storage of unqualified toa.
Definition at line 80 of file BDSD2NavAlm.hpp.
The documentation for this class was generated from the following files:
