Points end-effector to look at a given target by aligning end-effector z-axis with the target. Looks at a target point by penalizing the vector which defines the orthogonal projection onto a defined line in the end-effector frame. More...

#include <look_at.h>

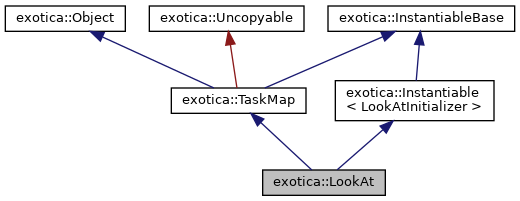

Inheritance diagram for exotica::LookAt:

[legend]

Public Member Functions
int	TaskSpaceDim () override

void	Update (Eigen::VectorXdRefConst x, Eigen::VectorXdRef phi) override

void	Update (Eigen::VectorXdRefConst x, Eigen::VectorXdRef phi, Eigen::MatrixXdRef jacobian) override

Public Member Functions inherited from exotica::TaskMap
virtual void	AssignScene (ScenePtr scene)

std::vector< KinematicFrameRequest >	GetFrames () const

virtual std::vector< TaskVectorEntry >	GetLieGroupIndices ()

virtual void	InstantiateBase (const Initializer &init)

virtual void	PreUpdate ()

virtual int	TaskSpaceJacobianDim ()

virtual void	Update (Eigen::VectorXdRefConst q, Eigen::VectorXdRef phi, Eigen::MatrixXdRef jacobian, HessianRef hessian)

virtual void	Update (Eigen::VectorXdRefConst x, Eigen::VectorXdRefConst u, Eigen::VectorXdRef phi)

virtual void	Update (Eigen::VectorXdRefConst x, Eigen::VectorXdRefConst u, Eigen::VectorXdRef phi, Eigen::MatrixXdRef dphi_dx, Eigen::MatrixXdRef dphi_du)

virtual void	Update (Eigen::VectorXdRefConst x, Eigen::VectorXdRefConst u, Eigen::VectorXdRef phi, Eigen::MatrixXdRef dphi_dx, Eigen::MatrixXdRef dphi_du, HessianRef ddphi_ddx, HessianRef ddphi_ddu, HessianRef ddphi_dxdu)

Public Member Functions inherited from exotica::Object
std::string	GetObjectName ()

void	InstantiateObject (const Initializer &init)

	Object ()

virtual std::string	Print (const std::string &prepend) const

virtual std::string	type () const

virtual	~Object ()

Public Member Functions inherited from exotica::InstantiableBase
virtual std::vector< Initializer >	GetAllTemplates () const=0

	InstantiableBase ()=default

virtual	~InstantiableBase ()=default

Public Member Functions inherited from exotica::Instantiable< LookAtInitializer >
std::vector< Initializer >	GetAllTemplates () const override

Initializer	GetInitializerTemplate () override

const C &	GetParameters () const

virtual void	Instantiate (const C &init)

void	InstantiateInternal (const Initializer &init) override

Additional Inherited Members
Public Attributes inherited from exotica::TaskMap
int	id

bool	is_used

std::vector< KinematicSolution >	kinematics

int	length

int	length_jacobian

int	start

int	start_jacobian

Public Attributes inherited from exotica::Object
bool	debug_

std::string	ns_

std::string	object_name_

Protected Attributes inherited from exotica::TaskMap
std::vector< KinematicFrameRequest >	frames_

ScenePtr	scene_

Protected Attributes inherited from exotica::Instantiable< LookAtInitializer >
C	parameters_

Detailed Description

Points end-effector to look at a given target by aligning end-effector z-axis with the target. Looks at a target point by penalizing the vector which defines the orthogonal projection onto a defined line in the end-effector frame.
