#include <QtCore/qglobal.h>
#include <QtCore/QObject>
#include <QtCore/QPointer>
#include <QtCore/QSharedPointer>
#include <QtCore/QTimer>
#include <QtGui/QPainter>
#include <QtGui/QPaintEvent>
#include <QtGui/QMouseEvent>
#include <QtGui/QWheelEvent>
#include <QtGui/QPixmap>
#include <QtCore/QVector>
#include <QtCore/QString>
#include <QtCore/QDateTime>
#include <QtCore/QMultiMap>
#include <QtCore/QFlags>
#include <QtCore/QDebug>
#include <QtCore/QStack>
#include <QtCore/QCache>
#include <QtCore/QMargins>
#include <qmath.h>
#include <limits>
#include <algorithm>
#include <QtNumeric>
#include <QtWidgets/QWidget>
#include <QtPrintSupport/QtPrintSupport>

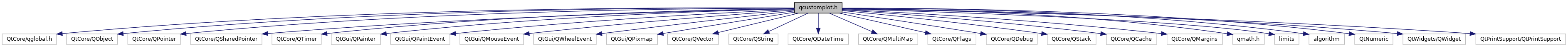

Include dependency graph for qcustomplot.h:

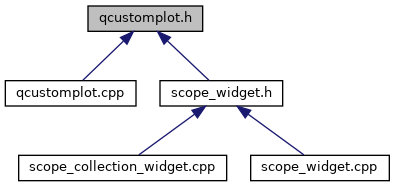

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	QCPAxisPainterPrivate::CachedLabel

class	QCPAbstractItem
	The abstract base class for all items in a plot. More...

class	QCPAbstractLegendItem
	The abstract base class for all entries in a QCPLegend. More...

class	QCPAbstractPaintBuffer
	The abstract base class for paint buffers, which define the rendering backend. More...

class	QCPAbstractPlottable
	The abstract base class for all data representing objects in a plot. More...

class	QCPAbstractPlottable1D< DataType >
	A template base class for plottables with one-dimensional data. More...

class	QCPAxis
	Manages a single axis inside a QCustomPlot. More...

class	QCPAxisPainterPrivate

class	QCPAxisRect
	Holds multiple axes and arranges them in a rectangular shape. More...

class	QCPAxisTicker
	The base class tick generator used by QCPAxis to create tick positions and tick labels. More...

class	QCPAxisTickerDateTime
	Specialized axis ticker for calendar dates and times as axis ticks. More...

class	QCPAxisTickerFixed
	Specialized axis ticker with a fixed tick step. More...

class	QCPAxisTickerLog
	Specialized axis ticker suited for logarithmic axes. More...

class	QCPAxisTickerPi
	Specialized axis ticker to display ticks in units of an arbitrary constant, for example pi. More...

class	QCPAxisTickerText
	Specialized axis ticker which allows arbitrary labels at specified coordinates. More...

class	QCPAxisTickerTime
	Specialized axis ticker for time spans in units of milliseconds to days. More...

class	QCPBars
	A plottable representing a bar chart in a plot. More...

class	QCPBarsData
	Holds the data of one single data point (one bar) for QCPBars. More...

class	QCPBarsGroup
	Groups multiple QCPBars together so they appear side by side. More...

class	QCPColorGradient
	Defines a color gradient for use with e.g. QCPColorMap. More...

class	QCPColorMap
	A plottable representing a two-dimensional color map in a plot. More...

class	QCPColorMapData
	Holds the two-dimensional data of a QCPColorMap plottable. More...

class	QCPColorScale
	A color scale for use with color coding data such as QCPColorMap. More...

class	QCPColorScaleAxisRectPrivate

class	QCPCurve
	A plottable representing a parametric curve in a plot. More...

class	QCPCurveData
	Holds the data of one single data point for QCPCurve. More...

class	QCPDataContainer< DataType >
	The generic data container for one-dimensional plottables. More...

class	QCPDataRange
	Describes a data range given by begin and end index. More...

class	QCPDataSelection
	Describes a data set by holding multiple QCPDataRange instances. More...

class	QCPErrorBars
	A plottable that adds a set of error bars to other plottables. More...

class	QCPErrorBarsData
	Holds the data of one single error bar for QCPErrorBars. More...

class	QCPFinancial
	A plottable representing a financial stock chart. More...

class	QCPFinancialData
	Holds the data of one single data point for QCPFinancial. More...

class	QCPGraph
	A plottable representing a graph in a plot. More...

class	QCPGraphData
	Holds the data of one single data point for QCPGraph. More...

class	QCPGrid
	Responsible for drawing the grid of a QCPAxis. More...

class	QCPItemAnchor
	An anchor of an item to which positions can be attached to. More...

class	QCPItemBracket
	A bracket for referencing/highlighting certain parts in the plot. More...

class	QCPItemCurve
	A curved line from one point to another. More...

class	QCPItemEllipse
	An ellipse. More...

class	QCPItemLine
	A line from one point to another. More...

class	QCPItemPixmap
	An arbitrary pixmap. More...

class	QCPItemPosition
	Manages the position of an item. More...

class	QCPItemRect
	A rectangle. More...

class	QCPItemStraightLine
	A straight line that spans infinitely in both directions. More...

class	QCPItemText
	A text label. More...

class	QCPItemTracer
	Item that sticks to QCPGraph data points. More...

class	QCPLayer
	A layer that may contain objects, to control the rendering order. More...

class	QCPLayerable
	Base class for all drawable objects. More...

class	QCPLayout
	The abstract base class for layouts. More...

class	QCPLayoutElement
	The abstract base class for all objects that form the layout system. More...

class	QCPLayoutGrid
	A layout that arranges child elements in a grid. More...

class	QCPLayoutInset
	A layout that places child elements aligned to the border or arbitrarily positioned. More...

class	QCPLegend
	Manages a legend inside a QCustomPlot. More...

class	QCPLineEnding
	Handles the different ending decorations for line-like items. More...

class	QCPMarginGroup
	A margin group allows synchronization of margin sides if working with multiple layout elements. More...

class	QCPPaintBufferPixmap
	A paint buffer based on QPixmap, using software raster rendering. More...

class	QCPPainter
	QPainter subclass used internally. More...

class	QCPPlottableInterface1D
	Defines an abstract interface for one-dimensional plottables. More...

class	QCPPlottableLegendItem
	A legend item representing a plottable with an icon and the plottable name. More...

class	QCPRange
	Represents the range an axis is encompassing. More...

class	QCPScatterStyle
	Represents the visual appearance of scatter points. More...

class	QCPSelectionDecorator
	Controls how a plottable's data selection is drawn. More...

class	QCPSelectionDecoratorBracket
	A selection decorator which draws brackets around each selected data segment. More...

class	QCPSelectionRect
	Provides rect/rubber-band data selection and range zoom interaction. More...

class	QCPStatisticalBox
	A plottable representing a single statistical box in a plot. More...

class	QCPStatisticalBoxData
	Holds the data of one single data point for QCPStatisticalBox. More...

class	QCPTextElement
	A layout element displaying a text. More...

class	QCPVector2D
	Represents two doubles as a mathematical 2D vector. More...

class	QCustomPlot
	The central class of the library. This is the QWidget which displays the plot and interacts with the user. More...

struct	QCPAxisPainterPrivate::TickLabelData

Namespaces
	QCP

Macros
#define	Q_DECL_OVERRIDE

#define	QCP_DEVICEPIXELRATIO_FLOAT

#define	QCP_DEVICEPIXELRATIO_SUPPORTED

#define	QCP_LIB_DECL

#define	QCUSTOMPLOT_VERSION 0x020001

#define	QCUSTOMPLOT_VERSION_STR "2.0.1"

Typedefs
typedef QCPDataContainer< QCPBarsData >	QCPBarsDataContainer

typedef QCPDataContainer< QCPCurveData >	QCPCurveDataContainer

typedef QVector< QCPErrorBarsData >	QCPErrorBarsDataContainer

typedef QCPDataContainer< QCPFinancialData >	QCPFinancialDataContainer

typedef QCPDataContainer< QCPGraphData >	QCPGraphDataContainer

typedef QCPDataContainer< QCPStatisticalBoxData >	QCPStatisticalBoxDataContainer

Enumerations
enum	QCP::AntialiasedElement { QCP::aeAxes = 0x0001, QCP::aeGrid = 0x0002, QCP::aeSubGrid = 0x0004, QCP::aeLegend = 0x0008, QCP::aeLegendItems = 0x0010, QCP::aePlottables = 0x0020, QCP::aeItems = 0x0040, QCP::aeScatters = 0x0080, QCP::aeFills = 0x0100, QCP::aeZeroLine = 0x0200, QCP::aeOther = 0x8000, QCP::aeAll = 0xFFFF, QCP::aeNone = 0x0000 }

enum	QCP::ExportPen { QCP::epNoCosmetic, QCP::epAllowCosmetic }

enum	QCP::Interaction { QCP::iRangeDrag = 0x001, QCP::iRangeZoom = 0x002, QCP::iMultiSelect = 0x004, QCP::iSelectPlottables = 0x008, QCP::iSelectAxes = 0x010, QCP::iSelectLegend = 0x020, QCP::iSelectItems = 0x040, QCP::iSelectOther = 0x080 }

enum	QCP::MarginSide { QCP::msLeft = 0x01, QCP::msRight = 0x02, QCP::msTop = 0x04, QCP::msBottom = 0x08, QCP::msAll = 0xFF, QCP::msNone = 0x00 }

enum	QCP::PlottingHint { QCP::phNone = 0x000, QCP::phFastPolylines = 0x001, QCP::phImmediateRefresh = 0x002, QCP::phCacheLabels = 0x004 }

enum	QCP::ResolutionUnit { QCP::ruDotsPerMeter, QCP::ruDotsPerCentimeter, QCP::ruDotsPerInch }

enum	QCP::SelectionRectMode { QCP::srmNone, QCP::srmZoom, QCP::srmSelect, QCP::srmCustom }

enum	QCP::SelectionType { QCP::stNone, QCP::stWhole, QCP::stSingleData, QCP::stDataRange, QCP::stMultipleDataRanges }

enum	QCP::SignDomain { QCP::sdNegative, QCP::sdBoth, QCP::sdPositive }

Functions
int	QCP::getMarginValue (const QMargins &margins, QCP::MarginSide side)

bool	QCP::isInvalidData (double value)

bool	QCP::isInvalidData (double value1, double value2)

const QCPRange	operator* (const QCPRange &range, double value)

const QCPVector2D	operator* (const QCPVector2D &vec, double factor)

const QCPVector2D	operator* (double factor, const QCPVector2D &vec)

const QCPRange	operator* (double value, const QCPRange &range)

const QCPDataSelection	operator+ (const QCPDataRange &a, const QCPDataRange &b)

const QCPDataSelection	operator+ (const QCPDataRange &a, const QCPDataSelection &b)

const QCPDataSelection	operator+ (const QCPDataSelection &a, const QCPDataRange &b)

const QCPDataSelection	operator+ (const QCPDataSelection &a, const QCPDataSelection &b)

const QCPRange	operator+ (const QCPRange &range, double value)

const QCPVector2D	operator+ (const QCPVector2D &vec1, const QCPVector2D &vec2)

const QCPRange	operator+ (double value, const QCPRange &range)

const QCPDataSelection	operator- (const QCPDataRange &a, const QCPDataRange &b)

const QCPDataSelection	operator- (const QCPDataRange &a, const QCPDataSelection &b)

const QCPDataSelection	operator- (const QCPDataSelection &a, const QCPDataRange &b)

const QCPDataSelection	operator- (const QCPDataSelection &a, const QCPDataSelection &b)

const QCPRange	operator- (const QCPRange &range, double value)

const QCPVector2D	operator- (const QCPVector2D &vec)

const QCPVector2D	operator- (const QCPVector2D &vec1, const QCPVector2D &vec2)

const QCPRange	operator/ (const QCPRange &range, double value)

const QCPVector2D	operator/ (const QCPVector2D &vec, double divisor)

	Q_DECLARE_TYPEINFO (QCPBarsData, Q_PRIMITIVE_TYPE)

	Q_DECLARE_TYPEINFO (QCPCurveData, Q_PRIMITIVE_TYPE)

	Q_DECLARE_TYPEINFO (QCPDataRange, Q_MOVABLE_TYPE)

	Q_DECLARE_TYPEINFO (QCPErrorBarsData, Q_PRIMITIVE_TYPE)

	Q_DECLARE_TYPEINFO (QCPFinancialData, Q_PRIMITIVE_TYPE)

	Q_DECLARE_TYPEINFO (QCPGraphData, Q_PRIMITIVE_TYPE)

	Q_DECLARE_TYPEINFO (QCPLineEnding, Q_MOVABLE_TYPE)

	Q_DECLARE_TYPEINFO (QCPRange, Q_MOVABLE_TYPE)

	Q_DECLARE_TYPEINFO (QCPScatterStyle, Q_MOVABLE_TYPE)

	Q_DECLARE_TYPEINFO (QCPStatisticalBoxData, Q_MOVABLE_TYPE)

	Q_DECLARE_TYPEINFO (QCPVector2D, Q_MOVABLE_TYPE)

void	QCP::setMarginValue (QMargins &margins, QCP::MarginSide side, int value)

Variables
const QMetaObject	QCP::staticMetaObject

Macro Definition Documentation

◆ Q_DECL_OVERRIDE

#define Q_DECL_OVERRIDE

Definition at line 134 of file qcustomplot.h.

◆ QCP_DEVICEPIXELRATIO_FLOAT

#define QCP_DEVICEPIXELRATIO_FLOAT

Definition at line 46 of file qcustomplot.h.

◆ QCP_DEVICEPIXELRATIO_SUPPORTED

#define QCP_DEVICEPIXELRATIO_SUPPORTED

Definition at line 44 of file qcustomplot.h.

◆ QCP_LIB_DECL

#define QCP_LIB_DECL

Definition at line 129 of file qcustomplot.h.

◆ QCUSTOMPLOT_VERSION

#define QCUSTOMPLOT_VERSION 0x020001

Definition at line 119 of file qcustomplot.h.

◆ QCUSTOMPLOT_VERSION_STR

#define QCUSTOMPLOT_VERSION_STR "2.0.1"

Definition at line 118 of file qcustomplot.h.

Typedef Documentation

◆ QCPBarsDataContainer

QCPBarsDataContainer

Container for storing QCPBarsData points. The data is stored sorted by key.

This template instantiation is the container in which QCPBars holds its data. For details about the generic container, see the documentation of the class template QCPDataContainer.

See also: QCPBarsData, QCPBars::setData

Definition at line 5480 of file qcustomplot.h.

◆ QCPCurveDataContainer

QCPCurveDataContainer

Container for storing QCPCurveData points. The data is stored sorted by t, so the sortKey() (returning t) is different from mainKey() (returning key).

This template instantiation is the container in which QCPCurve holds its data. For details about the generic container, see the documentation of the class template QCPDataContainer.

See also: QCPCurveData, QCPCurve::setData

Definition at line 5301 of file qcustomplot.h.

◆ QCPErrorBarsDataContainer

QCPErrorBarsDataContainer

Container for storing QCPErrorBarsData points. It is a typedef for QVector<QCPErrorBarsData>.

This is the container in which QCPErrorBars holds its data. Unlike most other data containers for plottables, it is not based on QCPDataContainer. This is because the error bars plottable is special in that it doesn't store its own key and value coordinate per error bar. It adopts the key and value from the plottable to which the error bars shall be applied (QCPErrorBars::setDataPlottable). So the stored QCPErrorBarsData doesn't need a sortable key, but merely an index (as QVector provides), which maps one-to-one to the indices of the other plottable's data.

See also: QCPErrorBarsData, QCPErrorBars::setData

Definition at line 5993 of file qcustomplot.h.

◆ QCPFinancialDataContainer

QCPFinancialDataContainer

Container for storing QCPFinancialData points. The data is stored sorted by key.

This template instantiation is the container in which QCPFinancial holds its data. For details about the generic container, see the documentation of the class template QCPDataContainer.

See also: QCPFinancialData, QCPFinancial::setData

Definition at line 5856 of file qcustomplot.h.

◆ QCPGraphDataContainer

QCPGraphDataContainer

Container for storing QCPGraphData points. The data is stored sorted by key.

This template instantiation is the container in which QCPGraph holds its data. For details about the generic container, see the documentation of the class template QCPDataContainer.

See also: QCPGraphData, QCPGraph::setData

Definition at line 5161 of file qcustomplot.h.

◆ QCPStatisticalBoxDataContainer

QCPStatisticalBoxDataContainer

Container for storing QCPStatisticalBoxData points. The data is stored sorted by key.

This template instantiation is the container in which QCPStatisticalBox holds its data. For details about the generic container, see the documentation of the class template QCPDataContainer.

See also: QCPStatisticalBoxData, QCPStatisticalBox::setData

Definition at line 5611 of file qcustomplot.h.

Function Documentation

◆ operator*() [1/4]

const QCPRange operator*	(	const QCPRange &	range,
		double	value
	)

inline

Multiplies both boundaries of the range by value.

Definition at line 862 of file qcustomplot.h.

◆ operator*() [2/4]

const QCPVector2D operator*	(	const QCPVector2D &	vec,
		double	factor
	)

inline

Definition at line 439 of file qcustomplot.h.

◆ operator*() [3/4]

const QCPVector2D operator*	(	double	factor,
		const QCPVector2D &	vec
	)

inline

Definition at line 438 of file qcustomplot.h.

◆ operator*() [4/4]

const QCPRange operator*	(	double	value,
		const QCPRange &	range
	)

inline

Multiplies both boundaries of the range by value.

Definition at line 872 of file qcustomplot.h.

◆ operator+() [1/7]

const QCPDataSelection operator+	(	const QCPDataRange &	a,
		const QCPDataRange &	b
	)

inline

Return a QCPDataSelection with the data points in a joined with the data points in b. The resulting data selection is already simplified (see QCPDataSelection::simplify).

Definition at line 1017 of file qcustomplot.h.

◆ operator+() [2/7]

const QCPDataSelection operator+	(	const QCPDataRange &	a,
		const QCPDataSelection &	b
	)

inline

Return a QCPDataSelection with the data points in a joined with the data points in b. The resulting data selection is already simplified (see QCPDataSelection::simplify).

Definition at line 995 of file qcustomplot.h.

◆ operator+() [3/7]

const QCPDataSelection operator+	(	const QCPDataSelection &	a,
		const QCPDataRange &	b
	)

inline

Return a QCPDataSelection with the data points in a joined with the data points in b. The resulting data selection is already simplified (see QCPDataSelection::simplify).

Definition at line 1006 of file qcustomplot.h.

◆ operator+() [4/7]

const QCPDataSelection operator+	(	const QCPDataSelection &	a,
		const QCPDataSelection &	b
	)

inline

Return a QCPDataSelection with the data points in a joined with the data points in b. The resulting data selection is already simplified (see QCPDataSelection::simplify).

Definition at line 984 of file qcustomplot.h.

◆ operator+() [5/7]

const QCPRange operator+	(	const QCPRange &	range,
		double	value
	)

inline

Adds value to both boundaries of the range.

Definition at line 832 of file qcustomplot.h.

◆ operator+() [6/7]

const QCPVector2D operator+	(	const QCPVector2D &	vec1,
		const QCPVector2D &	vec2
	)

inline

Definition at line 441 of file qcustomplot.h.

◆ operator+() [7/7]

const QCPRange operator+	(	double	value,
		const QCPRange &	range
	)

inline

Adds value to both boundaries of the range.

Definition at line 842 of file qcustomplot.h.

◆ operator-() [1/7]

const QCPDataSelection operator-	(	const QCPDataRange &	a,
		const QCPDataRange &	b
	)

inline

Return a QCPDataSelection with the data points which are in a but not in b.

Definition at line 1057 of file qcustomplot.h.

◆ operator-() [2/7]

const QCPDataSelection operator-	(	const QCPDataRange &	a,
		const QCPDataSelection &	b
	)

inline

Return a QCPDataSelection with the data points which are in a but not in b.

Definition at line 1037 of file qcustomplot.h.

◆ operator-() [3/7]

const QCPDataSelection operator-	(	const QCPDataSelection &	a,
		const QCPDataRange &	b
	)

inline

Return a QCPDataSelection with the data points which are in a but not in b.

Definition at line 1047 of file qcustomplot.h.

◆ operator-() [4/7]

const QCPDataSelection operator-	(	const QCPDataSelection &	a,
		const QCPDataSelection &	b
	)

inline

Return a QCPDataSelection with the data points which are in a but not in b.

Definition at line 1027 of file qcustomplot.h.

◆ operator-() [5/7]

const QCPRange operator-	(	const QCPRange &	range,
		double	value
	)

inline

Subtracts value from both boundaries of the range.

Definition at line 852 of file qcustomplot.h.

◆ operator-() [6/7]

const QCPVector2D operator- ( const QCPVector2D & vec )

inline

Definition at line 443 of file qcustomplot.h.

◆ operator-() [7/7]

const QCPVector2D operator-	(	const QCPVector2D &	vec1,
		const QCPVector2D &	vec2
	)

inline

Definition at line 442 of file qcustomplot.h.

◆ operator/() [1/2]

const QCPRange operator/	(	const QCPRange &	range,
		double	value
	)

inline

Divides both boundaries of the range by value.

Definition at line 882 of file qcustomplot.h.

◆ operator/() [2/2]

const QCPVector2D operator/	(	const QCPVector2D &	vec,
		double	divisor
	)

inline

Definition at line 440 of file qcustomplot.h.

◆ Q_DECLARE_TYPEINFO() [1/11]

Q_DECLARE_TYPEINFO	(	QCPBarsData	,
		Q_PRIMITIVE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [2/11]

Q_DECLARE_TYPEINFO	(	QCPCurveData	,
		Q_PRIMITIVE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [3/11]

Q_DECLARE_TYPEINFO	(	QCPDataRange	,
		Q_MOVABLE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [4/11]

Q_DECLARE_TYPEINFO	(	QCPErrorBarsData	,
		Q_PRIMITIVE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [5/11]

Q_DECLARE_TYPEINFO	(	QCPFinancialData	,
		Q_PRIMITIVE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [6/11]

Q_DECLARE_TYPEINFO	(	QCPGraphData	,
		Q_PRIMITIVE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [7/11]

Q_DECLARE_TYPEINFO	(	QCPLineEnding	,
		Q_MOVABLE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [8/11]

Q_DECLARE_TYPEINFO	(	QCPRange	,
		Q_MOVABLE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [9/11]

Q_DECLARE_TYPEINFO	(	QCPScatterStyle	,
		Q_MOVABLE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [10/11]

Q_DECLARE_TYPEINFO	(	QCPStatisticalBoxData	,
		Q_MOVABLE_TYPE
	)

◆ Q_DECLARE_TYPEINFO() [11/11]

Q_DECLARE_TYPEINFO	(	QCPVector2D	,
		Q_MOVABLE_TYPE
	)

Classes

Namespaces

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ Q_DECL_OVERRIDE

◆ QCP_DEVICEPIXELRATIO_FLOAT

◆ QCP_DEVICEPIXELRATIO_SUPPORTED

◆ QCP_LIB_DECL

◆ QCUSTOMPLOT_VERSION

◆ QCUSTOMPLOT_VERSION_STR

Typedef Documentation

◆ QCPBarsDataContainer

◆ QCPCurveDataContainer

◆ QCPErrorBarsDataContainer

◆ QCPFinancialDataContainer

◆ QCPGraphDataContainer

◆ QCPStatisticalBoxDataContainer

Function Documentation

◆ operator*() [1/4]

◆ operator*() [2/4]

◆ operator*() [3/4]

◆ operator*() [4/4]

◆ operator+() [1/7]

◆ operator+() [2/7]

◆ operator+() [3/7]

◆ operator+() [4/7]

◆ operator+() [5/7]

◆ operator+() [6/7]

◆ operator+() [7/7]

◆ operator-() [1/7]

◆ operator-() [2/7]

◆ operator-() [3/7]

◆ operator-() [4/7]

◆ operator-() [5/7]

◆ operator-() [6/7]

◆ operator-() [7/7]

◆ operator/() [1/2]

◆ operator/() [2/2]

◆ Q_DECLARE_TYPEINFO() [1/11]

◆ Q_DECLARE_TYPEINFO() [2/11]

◆ Q_DECLARE_TYPEINFO() [3/11]

◆ Q_DECLARE_TYPEINFO() [4/11]

◆ Q_DECLARE_TYPEINFO() [5/11]

◆ Q_DECLARE_TYPEINFO() [6/11]

◆ Q_DECLARE_TYPEINFO() [7/11]

◆ Q_DECLARE_TYPEINFO() [8/11]

◆ Q_DECLARE_TYPEINFO() [9/11]

◆ Q_DECLARE_TYPEINFO() [10/11]

◆ Q_DECLARE_TYPEINFO() [11/11]
