uavcan::TransferBufferManagerEntry Class Reference

#include <transfer_buffer.hpp>

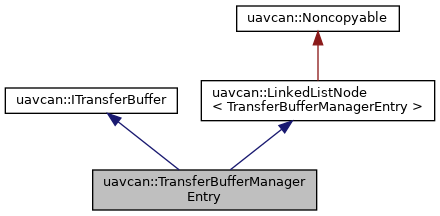

Inheritance diagram for uavcan::TransferBufferManagerEntry:

Classes
struct	Block

Public Member Functions
const TransferBufferManagerKey &	getKey () const
bool	isEmpty () const
virtual int	read (unsigned offset, uint8_t *data, unsigned len) const
void	reset (const TransferBufferManagerKey &key=TransferBufferManagerKey())
	TransferBufferManagerEntry (IPoolAllocator &allocator, uint16_t max_size)
virtual int	write (unsigned offset, const uint8_t *data, unsigned len)
virtual	~TransferBufferManagerEntry ()
Public Member Functions inherited from uavcan::ITransferBuffer
virtual	~ITransferBuffer ()
Public Member Functions inherited from uavcan::LinkedListNode< TransferBufferManagerEntry >
TransferBufferManagerEntry *	getNextListNode () const
void	setNextListNode (TransferBufferManagerEntry *node)

Static Public Member Functions
static void	destroy (TransferBufferManagerEntry *&obj, IPoolAllocator &allocator)
static TransferBufferManagerEntry *	instantiate (IPoolAllocator &allocator, uint16_t max_size)

Private Attributes
IPoolAllocator &	allocator_
LinkedListRoot< Block >	blocks_
TransferBufferManagerKey	key_
const uint16_t	max_size_
uint16_t	max_write_pos_

Additional Inherited Members
Protected Member Functions inherited from uavcan::LinkedListNode< TransferBufferManagerEntry >
	LinkedListNode ()
	~LinkedListNode ()

Detailed Description

Resizable gather/scatter storage. reset() call releases all memory blocks. Supports unordered write operations - from higher to lower offsets

Definition at line 102 of file transfer_buffer.hpp.

Constructor & Destructor Documentation

TransferBufferManagerEntry()

uavcan::TransferBufferManagerEntry::TransferBufferManagerEntry ( IPoolAllocator &  allocator, uint16_t  max_size  )

inline

Definition at line 126 of file transfer_buffer.hpp.

~TransferBufferManagerEntry()

virtual uavcan::TransferBufferManagerEntry::~TransferBufferManagerEntry ( )

inlinevirtual

Definition at line 136 of file transfer_buffer.hpp.

Member Function Documentation

destroy()

void uavcan::TransferBufferManagerEntry::destroy ( TransferBufferManagerEntry *&  obj, IPoolAllocator &  allocator  )

static

Definition at line 141 of file uc_transfer_buffer.cpp.

getKey()

const TransferBufferManagerKey& uavcan::TransferBufferManagerEntry::getKey ( ) const

inline

Definition at line 146 of file transfer_buffer.hpp.

instantiate()

TransferBufferManagerEntry * uavcan::TransferBufferManagerEntry::instantiate ( IPoolAllocator &  allocator, uint16_t  max_size  )

static

Definition at line 130 of file uc_transfer_buffer.cpp.

isEmpty()

bool uavcan::TransferBufferManagerEntry::isEmpty ( ) const

inline

Definition at line 147 of file transfer_buffer.hpp.

read()

int uavcan::TransferBufferManagerEntry::read ( unsigned  offset, uint8_t *  data, unsigned  len  ) const

virtual

Implements uavcan::ITransferBuffer.

Definition at line 151 of file uc_transfer_buffer.cpp.

reset()

void uavcan::TransferBufferManagerEntry::reset

(

const TransferBufferManagerKey &

key = TransferBufferManagerKey()

)

Definition at line 258 of file uc_transfer_buffer.cpp.

write()

int uavcan::TransferBufferManagerEntry::write ( unsigned  offset, const uint8_t *  data, unsigned  len  )

virtual

Implements uavcan::ITransferBuffer.

Definition at line 187 of file uc_transfer_buffer.cpp.

Member Data Documentation

allocator_

IPoolAllocator& uavcan::TransferBufferManagerEntry::allocator_

private

Definition at line 119 of file transfer_buffer.hpp.

blocks_

LinkedListRoot<Block> uavcan::TransferBufferManagerEntry::blocks_

private

Definition at line 120 of file transfer_buffer.hpp.

key_

TransferBufferManagerKey uavcan::TransferBufferManagerEntry::key_

private

Definition at line 123 of file transfer_buffer.hpp.

max_size_

const uint16_t uavcan::TransferBufferManagerEntry::max_size_

private

Definition at line 122 of file transfer_buffer.hpp.

max_write_pos_

uint16_t uavcan::TransferBufferManagerEntry::max_write_pos_

private

Definition at line 121 of file transfer_buffer.hpp.

---

The documentation for this class was generated from the following files:

• transfer_buffer.hpp
• uc_transfer_buffer.cpp
