Stg::Camera Class Reference

#include <stage.hh>

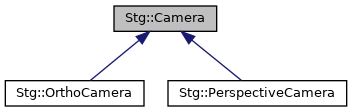

Inheritance diagram for Stg::Camera:

Public Member Functions
	Camera ()
virtual void	Draw (void) const =0
virtual void	Load (Worldfile *wf, int sec)=0
double	pitch (void) const
virtual void	reset ()=0
virtual void	SetProjection (void) const =0
double	x (void) const
double	y (void) const
double	yaw (void) const
double	z (void) const
virtual	~Camera ()

Protected Attributes
double	_pitch
double	_x
double	_y
double	_yaw
double	_z

Detailed Description

Definition at line 1271 of file stage.hh.

Constructor & Destructor Documentation

Camera()

Stg::Camera::Camera ( )

inline

Definition at line 1278 of file stage.hh.

~Camera()

virtual Stg::Camera::~Camera ( )

inlinevirtual

Definition at line 1279 of file stage.hh.

Member Function Documentation

Draw()

virtual void Stg::Camera::Draw ( void  ) const

pure virtual

Implemented in Stg::OrthoCamera, and Stg::PerspectiveCamera.

Load()

virtual void Stg::Camera::Load ( Worldfile *  wf, int  sec  )

pure virtual

Implemented in Stg::OrthoCamera, and Stg::PerspectiveCamera.

pitch()

double Stg::Camera::pitch ( void  ) const

inline

Definition at line 1284 of file stage.hh.

reset()

virtual void Stg::Camera::reset ( )

pure virtual

Implemented in Stg::OrthoCamera, and Stg::PerspectiveCamera.

SetProjection()

virtual void Stg::Camera::SetProjection ( void  ) const

pure virtual

Implemented in Stg::OrthoCamera, and Stg::PerspectiveCamera.

x()

double Stg::Camera::x ( void  ) const

inline

Definition at line 1285 of file stage.hh.

y()

double Stg::Camera::y ( void  ) const

inline

Definition at line 1286 of file stage.hh.

yaw()

double Stg::Camera::yaw ( void  ) const

inline

Definition at line 1283 of file stage.hh.

z()

double Stg::Camera::z ( void  ) const

inline

Definition at line 1287 of file stage.hh.

Member Data Documentation

_pitch

double Stg::Camera::_pitch

protected

Definition at line 1273 of file stage.hh.

_x

double Stg::Camera::_x

protected

Definition at line 1275 of file stage.hh.

_y

double Stg::Camera::_y

protected

Definition at line 1275 of file stage.hh.

_yaw

double Stg::Camera::_yaw

protected

Definition at line 1274 of file stage.hh.

_z

double Stg::Camera::_z

protected

Definition at line 1275 of file stage.hh.

---

The documentation for this class was generated from the following file:

• stage.hh
