QwtSeriesWrapper Class Reference

#include <timeseries_qwt.h>

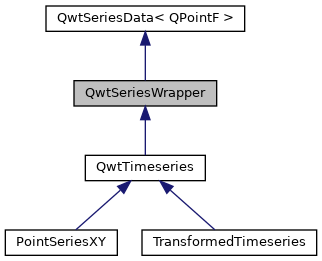

Inheritance diagram for QwtSeriesWrapper:

Public Member Functions
QRectF	boundingRect () const override
virtual RangeOpt	getVisualizationRangeX ()
virtual RangeOpt	getVisualizationRangeY (Range range_X)
virtual const PlotDataXY *	plotData () const
	QwtSeriesWrapper (const PlotDataXY *data)
QPointF	sample (size_t i) const override
size_t	size () const override
virtual void	updateCache (bool reset_old_data)
Public Member Functions inherited from QwtSeriesData< QPointF >
	QwtSeriesData ()
	Constructor. More...
virtual void	setRectOfInterest (const QRectF &rect)
virtual	~QwtSeriesData ()
	Destructor. More...

Private Attributes
const PlotDataXY *	_data

Additional Inherited Members
Protected Attributes inherited from QwtSeriesData< QPointF >
QRectF	cachedBoundingRect
	Can be used to cache a calculated bounding rectangle. More...

Detailed Description

Definition at line 17 of file timeseries_qwt.h.

Constructor & Destructor Documentation

QwtSeriesWrapper()

QwtSeriesWrapper::QwtSeriesWrapper ( const PlotDataXY *  data )

inline

Definition at line 23 of file timeseries_qwt.h.

Member Function Documentation

boundingRect()

QRectF QwtSeriesWrapper::boundingRect ( ) const

overridevirtual

Calculate the bounding rect of all samples

The bounding rect is necessary for autoscaling and can be used for a couple of painting optimizations.

qwtBoundingRect(...) offers slow implementations iterating over the samples. For large sets it is recommended to implement something faster f.e. by caching the bounding rectangle.

Returns

Bounding rectangle

Implements QwtSeriesData< QPointF >.

Reimplemented in QwtTimeseries.

Definition at line 139 of file timeseries_qwt.cpp.

getVisualizationRangeX()

RangeOpt QwtSeriesWrapper::getVisualizationRangeX ( )

virtual

Reimplemented in QwtTimeseries, and PointSeriesXY.

Definition at line 195 of file timeseries_qwt.cpp.

getVisualizationRangeY()

RangeOpt QwtSeriesWrapper::getVisualizationRangeY ( Range  range_X )

virtual

Reimplemented in QwtTimeseries, and PointSeriesXY.

Definition at line 14 of file timeseries_qwt.cpp.

plotData()

const PlotDataBase< double, double > * QwtSeriesWrapper::plotData ( ) const

virtual

Reimplemented in PointSeriesXY.

Definition at line 220 of file timeseries_qwt.cpp.

sample()

QPointF QwtSeriesWrapper::sample ( size_t  i ) const

overridevirtual

Return a sample

Parameters

i

Index

Returns

Sample at position i

Implements QwtSeriesData< QPointF >.

Reimplemented in QwtTimeseries.

Definition at line 173 of file timeseries_qwt.cpp.

size()

size_t QwtSeriesWrapper::size ( ) const

overridevirtual

Returns

Number of samples

Implements QwtSeriesData< QPointF >.

Definition at line 185 of file timeseries_qwt.cpp.

updateCache()

virtual void QwtSeriesWrapper::updateCache ( bool  reset_old_data )

inlinevirtual

Reimplemented in TransformedTimeseries, QwtTimeseries, and PointSeriesXY.

Definition at line 39 of file timeseries_qwt.h.

Member Data Documentation

_data

const PlotDataXY* QwtSeriesWrapper::_data

private

Definition at line 20 of file timeseries_qwt.h.

---

The documentation for this class was generated from the following files:

• timeseries_qwt.h
• timeseries_qwt.cpp
