PJ::PlotJugglerPlugin Class Reference

The PlotJugglerPlugin is the base class of all the plugins. More...

#include <pj_plugin.h>

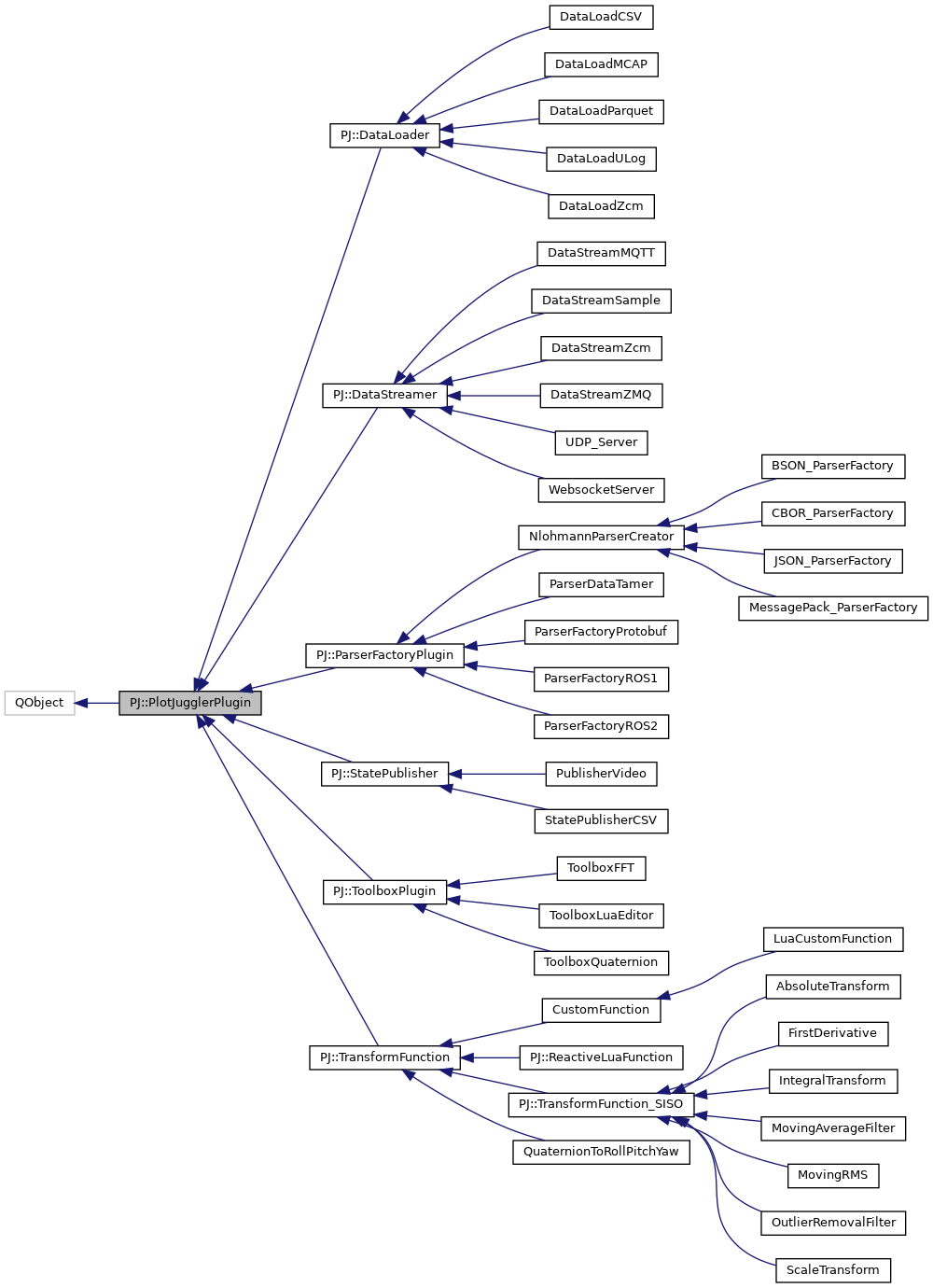

Inheritance diagram for PJ::PlotJugglerPlugin:

Public Member Functions
virtual const std::vector< QAction * > &	availableActions ()
virtual bool	isDebugPlugin ()
virtual const char *	name () const =0
	Name of the plugin type, NOT the particular instance. More...
virtual QWidget *	optionsWidget ()
	optionsWidget pointer to a persistent widget used to set the plugin options . More...
	PlotJugglerPlugin ()=default
virtual bool	xmlLoadState (const QDomElement &parent_element)
	Override this method to load the status of the plugin from XML. More...
virtual bool	xmlSaveState (QDomDocument &doc, QDomElement &parent_element) const
	Override this method to save the status of the plugin to XML. More...
QDomElement	xmlSaveState (QDomDocument &doc) const

Detailed Description

The PlotJugglerPlugin is the base class of all the plugins.

Definition at line 22 of file pj_plugin.h.

Constructor & Destructor Documentation

PlotJugglerPlugin()

PJ::PlotJugglerPlugin::PlotJugglerPlugin ( )

default

Member Function Documentation

availableActions()

virtual const std::vector<QAction*>& PJ::PlotJugglerPlugin::availableActions ( )

inlinevirtual

Definition at line 66 of file pj_plugin.h.

isDebugPlugin()

virtual bool PJ::PlotJugglerPlugin::isDebugPlugin ( )

inlinevirtual

Override this to return true, if you want this plugin to be loaded only when the command line option [-t] is used.

Reimplemented in WebsocketServer, UDP_Server, DataStreamZMQ, DataStreamMQTT, and DataStreamSample.

Definition at line 32 of file pj_plugin.h.

name()

virtual const char* PJ::PlotJugglerPlugin::name ( ) const

pure virtual

Name of the plugin type, NOT the particular instance.

Implemented in MessagePack_ParserFactory, BSON_ParserFactory, CBOR_ParserFactory, JSON_ParserFactory, PJ::ReactiveLuaFunction, WebsocketServer, UDP_Server, DataStreamZMQ, PJ::TransformFunction, DataStreamMQTT, ToolboxLuaEditor, DataLoadCSV, DataLoadParquet, DataLoadMCAP, DataLoadZcm, MovingAverageFilter, DataLoadULog, DataStreamZcm, MovingRMS, ToolboxQuaternion, DataStreamSample, ParserFactoryROS1, ParserFactoryROS2, ToolboxFFT, OutlierRemovalFilter, PublisherVideo, LuaCustomFunction, StatePublisherCSV, ScaleTransform, ParserFactoryProtobuf, ParserDataTamer, FirstDerivative, IntegralTransform, AbsoluteTransform, and QuaternionToRollPitchYaw.

optionsWidget()

virtual QWidget* PJ::PlotJugglerPlugin::optionsWidget ( )

inlinevirtual

optionsWidget pointer to a persistent widget used to set the plugin options .

Reimplemented in NlohmannParserCreator, ParserFactoryProtobuf, MovingAverageFilter, MovingRMS, OutlierRemovalFilter, ScaleTransform, FirstDerivative, and IntegralTransform.

Definition at line 41 of file pj_plugin.h.

xmlLoadState()

virtual bool PJ::PlotJugglerPlugin::xmlLoadState ( const QDomElement &  parent_element )

inlinevirtual

Override this method to load the status of the plugin from XML.

Reimplemented in PJ::ReactiveLuaFunction, CustomFunction, ToolboxLuaEditor, DataLoadParquet, PublisherVideo, DataLoadCSV, DataStreamSample, DataStreamZcm, DataLoadZcm, MovingAverageFilter, MovingRMS, DataLoadULog, OutlierRemovalFilter, IntegralTransform, LuaCustomFunction, ScaleTransform, and FirstDerivative.

Definition at line 53 of file pj_plugin.h.

xmlSaveState() [1/2]

virtual bool PJ::PlotJugglerPlugin::xmlSaveState ( QDomDocument &  doc, QDomElement &  parent_element  ) const

inlinevirtual

Override this method to save the status of the plugin to XML.

Reimplemented in PJ::ReactiveLuaFunction, CustomFunction, ToolboxLuaEditor, PublisherVideo, DataLoadParquet, DataLoadCSV, DataStreamSample, DataLoadZcm, DataStreamZcm, MovingAverageFilter, MovingRMS, DataLoadULog, OutlierRemovalFilter, IntegralTransform, ScaleTransform, and FirstDerivative.

Definition at line 47 of file pj_plugin.h.

xmlSaveState() [2/2]

QDomElement PJ::PlotJugglerPlugin::xmlSaveState ( QDomDocument &  doc ) const

inline

Definition at line 58 of file pj_plugin.h.

---

The documentation for this class was generated from the following file:

• pj_plugin.h
