Base class of Publisher. More...
Public Member Functions | |
| def | activate (self) |
| virtual ReturnCode activate() = 0; More... | |
| def | deactivate (self) |
| virtual ReturnCode deactivate() = 0; More... | |
| def | init (self, prop) |
| Initializing configuration. More... | |
| def | isActive (self) |
| virtual bool isActive() = 0; More... | |
| def | release (self) |
| Release the Publisher. More... | |
| def | setBuffer (self, buffer) |
| virtual ReturnCode setBuffer(BufferBase<cdrMemoryStream>* buffer) = 0; More... | |
| def | setConsumer (self, consumer) |
| virtual ReturnCode setConsumer(InPortConsumer* consumer) = 0; More... | |
| def | setListener (self, info, listeners) |
| def | write (self, data, sec, usec) |
 Public Member Functions inherited from OpenRTM_aist.DataPortStatus.DataPortStatus | |
| def | __init__ (self) |
| def | toString (status) |
| Convert DataPortStatus into the string. More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from OpenRTM_aist.DataPortStatus.DataPortStatus | |
| int | BUFFER_EMPTY = 4 |
| int | BUFFER_ERROR = 2 |
| int | BUFFER_FULL = 3 |
| int | BUFFER_TIMEOUT = 5 |
| int | CONNECTION_LOST = 12 |
| int | INVALID_ARGS = 10 |
| int | PORT_ERROR = 1 |
| int | PORT_OK = 0 |
| DataPortStatus return codes. More... | |
| int | PRECONDITION_NOT_MET = 11 |
| int | RECV_EMPTY = 8 |
| int | RECV_TIMEOUT = 9 |
| int | SEND_FULL = 6 |
| int | SEND_TIMEOUT = 7 |
| toString = staticmethod(toString) | |
| int | UNKNOWN_ERROR = 13 |
Detailed Description
Base class of Publisher.

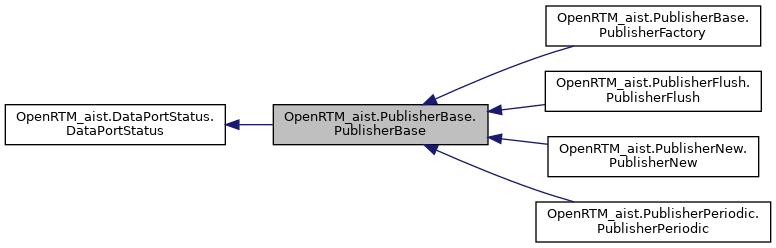

A base class of Publisher*. Variation of Publisher* which implements details of Publisher inherits this PublisherBase class.
Definition at line 44 of file PublisherBase.py.
Member Function Documentation
◆ activate()
| def OpenRTM_aist.PublisherBase.PublisherBase.activate | ( | self | ) |
virtual ReturnCode activate() = 0;
Definition at line 103 of file PublisherBase.py.
◆ deactivate()
| def OpenRTM_aist.PublisherBase.PublisherBase.deactivate | ( | self | ) |
virtual ReturnCode deactivate() = 0;
Definition at line 107 of file PublisherBase.py.
◆ init()
| def OpenRTM_aist.PublisherBase.PublisherBase.init | ( | self, | |
| prop | |||
| ) |
Initializing configuration.
This operation would be called to configure in initialization. In the concrete class, configuration should be performed getting appropriate information from the given Properties data. This function might be called right after instantiation and connection sequence respectivly. Therefore, this function should be implemented assuming multiple call.
- Parameters
-
prop Configuration information
virtual ReturnCode init(coil::Properties& prop) = 0;
Definition at line 76 of file PublisherBase.py.
◆ isActive()
| def OpenRTM_aist.PublisherBase.PublisherBase.isActive | ( | self | ) |
virtual bool isActive() = 0;
Definition at line 99 of file PublisherBase.py.
◆ release()
| def OpenRTM_aist.PublisherBase.PublisherBase.release | ( | self | ) |
Release the Publisher.
Release this Publisher. When Publisher becomes unnecessary, this is invoked from PublisherFactory.
virtual void release(){}
Definition at line 130 of file PublisherBase.py.
◆ setBuffer()
| def OpenRTM_aist.PublisherBase.PublisherBase.setBuffer | ( | self, | |
| buffer | |||
| ) |
virtual ReturnCode setBuffer(BufferBase<cdrMemoryStream>* buffer) = 0;
Definition at line 84 of file PublisherBase.py.
◆ setConsumer()
| def OpenRTM_aist.PublisherBase.PublisherBase.setConsumer | ( | self, | |
| consumer | |||
| ) |
virtual ReturnCode setConsumer(InPortConsumer* consumer) = 0;
Definition at line 80 of file PublisherBase.py.
◆ setListener()
| def OpenRTM_aist.PublisherBase.PublisherBase.setListener | ( | self, | |
| info, | |||
| listeners | |||
| ) |
Definition at line 89 of file PublisherBase.py.
◆ write()
| def OpenRTM_aist.PublisherBase.PublisherBase.write | ( | self, | |
| data, | |||
| sec, | |||
| usec | |||
| ) |
Definition at line 95 of file PublisherBase.py.
The documentation for this class was generated from the following file:
