A general rule or limitation for a lanelet (abstract base class) More...

#include <RegulatoryElement.h>

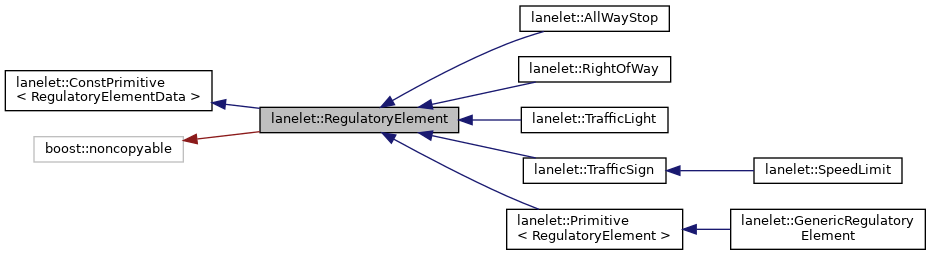

Inheritance diagram for lanelet::RegulatoryElement:

[legend]

Public Types
using	Category = traits::RegulatoryElementTag

using	const_iterator = RuleParameterMap::const_iterator

using	ConstType = RegulatoryElement

using	iterator = RuleParameterMap::iterator

using	MutableType = GenericRegulatoryElement

using	ThreeDType = RegulatoryElement

using	TwoDType = RegulatoryElement

Public Types inherited from lanelet::ConstPrimitive< RegulatoryElementData >
using	DataType = RegulatoryElementData

Public Member Functions
void	applyVisitor (RuleParameterVisitor &visitor) const
	applies a visitor to every parameter in the regulatory element More...

bool	empty () const
	returns true if this object contains no parameters More...

template<typename T >
Optional< T >	find (Id id) const
	Finds a parameter by its id, independent of the role. More...

template<>
Optional< ConstRuleParameter >	find (Id id) const

template<>
boost::optional< ConstLanelet >	find (Id id) const

template<>
boost::optional< ConstArea >	find (Id id) const

ConstRuleParameterMap	getParameters () const
	Returns all parameters as const object (coversion overhead for const) More...

template<typename T >
std::vector< T >	getParameters (const std::string &role) const
	Returns a vector of all RuleParameters that could be converted to T. More...

template<typename T >
std::vector< T >	getParameters (RoleName role) const

template<>
std::vector< ConstLanelet >	getParameters (const std::string &role) const

template<>
std::vector< ConstLanelet >	getParameters (RoleName role) const

template<>
std::vector< ConstArea >	getParameters (const std::string &role) const

template<>
std::vector< ConstArea >	getParameters (RoleName role) const

std::vector< std::string >	roles () const
	returns all the roles this regulatory element has More...

void	setId (Id id) noexcept

size_t	size () const
	get the number of roles in this regulatoryElement More...

virtual	~RegulatoryElement ()

Public Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const RegulatoryElementData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const RegulatoryElementData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Static Public Attributes
static constexpr char	RuleName [] = "basic_regulatory_element"

Static Public Attributes inherited from lanelet::ConstPrimitive< RegulatoryElementData >
static constexpr bool	IsConst

Protected Member Functions
void	applyVisitor (internal::MutableParameterVisitor &visitor) const

const_iterator	begin () const

RegulatoryElementDataPtr	data ()

const_iterator	end () const

template<typename T >
std::vector< T >	getParameters (RoleName role)

const RuleParameterMap &	parameters () const

RuleParameterMap &	parameters ()

	RegulatoryElement (Id id=InvalId, const RuleParameterMap &members=RuleParameterMap(), const AttributeMap &attributes=AttributeMap())

	RegulatoryElement (const RegulatoryElementDataPtr &data)

Protected Member Functions inherited from lanelet::ConstPrimitive< RegulatoryElementData >
	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

	ConstPrimitive (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

	~ConstPrimitive () noexcept=default

Friends
class	LaneletMap

class	RegulatoryElementFactory

Detailed Description

A general rule or limitation for a lanelet (abstract base class)

Definition at line 174 of file primitives/RegulatoryElement.h.

Member Typedef Documentation

◆ Category

using lanelet::RegulatoryElement::Category = traits::RegulatoryElementTag

Definition at line 182 of file primitives/RegulatoryElement.h.

◆ const_iterator

using lanelet::RegulatoryElement::const_iterator = RuleParameterMap::const_iterator

Definition at line 183 of file primitives/RegulatoryElement.h.

◆ ConstType

using lanelet::RegulatoryElement::ConstType = RegulatoryElement

Definition at line 178 of file primitives/RegulatoryElement.h.

◆ iterator

using lanelet::RegulatoryElement::iterator = RuleParameterMap::iterator

Definition at line 184 of file primitives/RegulatoryElement.h.

◆ MutableType

using lanelet::RegulatoryElement::MutableType = GenericRegulatoryElement

Definition at line 179 of file primitives/RegulatoryElement.h.

◆ ThreeDType

using lanelet::RegulatoryElement::ThreeDType = RegulatoryElement

Definition at line 181 of file primitives/RegulatoryElement.h.

◆ TwoDType

using lanelet::RegulatoryElement::TwoDType = RegulatoryElement

Definition at line 180 of file primitives/RegulatoryElement.h.

Constructor & Destructor Documentation

◆ ~RegulatoryElement()

lanelet::RegulatoryElement::~RegulatoryElement ( )

virtualdefault

◆ RegulatoryElement() [1/2]

lanelet::RegulatoryElement::RegulatoryElement	(	Id	id = `InvalId`,
		const RuleParameterMap &	members = `RuleParameterMap()`,
		const AttributeMap &	attributes = `AttributeMap()`
	)

inlineexplicitprotected

Definition at line 259 of file primitives/RegulatoryElement.h.

◆ RegulatoryElement() [2/2]

lanelet::RegulatoryElement::RegulatoryElement ( const RegulatoryElementDataPtr & data )

inlineexplicitprotected

Definition at line 262 of file primitives/RegulatoryElement.h.

Member Function Documentation

◆ applyVisitor() [1/2]

void lanelet::RegulatoryElement::applyVisitor ( RuleParameterVisitor & visitor ) const

applies a visitor to every parameter in the regulatory element

Definition at line 146 of file RegulatoryElement.cpp.

◆ applyVisitor() [2/2]

void lanelet::RegulatoryElement::applyVisitor ( internal::MutableParameterVisitor & visitor ) const

protected

Definition at line 155 of file RegulatoryElement.cpp.

◆ begin()

const_iterator lanelet::RegulatoryElement::begin ( ) const

inlineprotected

Definition at line 242 of file primitives/RegulatoryElement.h.

◆ data()

RegulatoryElementDataPtr lanelet::RegulatoryElement::data ( )

inlineprotected

Definition at line 247 of file primitives/RegulatoryElement.h.

◆ empty()

bool lanelet::RegulatoryElement::empty ( ) const

inline

returns true if this object contains no parameters

Definition at line 233 of file primitives/RegulatoryElement.h.

◆ end()

const_iterator lanelet::RegulatoryElement::end ( ) const

inlineprotected

Definition at line 243 of file primitives/RegulatoryElement.h.

◆ find() [1/4]

template<typename T >

Optional< T > lanelet::RegulatoryElement::find ( Id id ) const

Finds a parameter by its id, independent of the role.

Definition at line 407 of file primitives/RegulatoryElement.h.

◆ find() [2/4]

template<>

boost::optional<ConstArea> lanelet::RegulatoryElement::find ( Id id ) const

inline

Definition at line 447 of file primitives/RegulatoryElement.h.

◆ find() [3/4]

template<>

Optional<ConstRuleParameter> lanelet::RegulatoryElement::find ( Id id ) const

inline

Definition at line 422 of file primitives/RegulatoryElement.h.

◆ find() [4/4]

template<>

boost::optional<ConstLanelet> lanelet::RegulatoryElement::find ( Id id ) const

inline

Definition at line 434 of file primitives/RegulatoryElement.h.

◆ getParameters() [1/8]

ConstRuleParameterMap lanelet::RegulatoryElement::getParameters ( ) const

Returns all parameters as const object (coversion overhead for const)

Definition at line 137 of file RegulatoryElement.cpp.

◆ getParameters() [2/8]

template<typename T >

std::vector<T> lanelet::RegulatoryElement::getParameters ( const std::string & role ) const

inline

Returns a vector of all RuleParameters that could be converted to T.

Definition at line 202 of file primitives/RegulatoryElement.h.

◆ getParameters() [3/8]

template<typename T >

std::vector<T> lanelet::RegulatoryElement::getParameters ( RoleName role ) const

inline

Returns a vector of all RuleParameters that could be converted to T (enum version).

Definition at line 214 of file primitives/RegulatoryElement.h.

◆ getParameters() [4/8]

template<typename T >

std::vector<T> lanelet::RegulatoryElement::getParameters ( RoleName role )

inlineprotected

Definition at line 249 of file primitives/RegulatoryElement.h.

◆ getParameters() [5/8]

template<>

std::vector<ConstLanelet> lanelet::RegulatoryElement::getParameters ( const std::string & role ) const

inline

Definition at line 462 of file primitives/RegulatoryElement.h.

◆ getParameters() [6/8]

template<>

std::vector<ConstLanelet> lanelet::RegulatoryElement::getParameters ( RoleName role ) const

inline

Definition at line 470 of file primitives/RegulatoryElement.h.

◆ getParameters() [7/8]

template<>

std::vector<ConstArea> lanelet::RegulatoryElement::getParameters ( const std::string & role ) const

inline

Definition at line 479 of file primitives/RegulatoryElement.h.

◆ getParameters() [8/8]

template<>

std::vector<ConstArea> lanelet::RegulatoryElement::getParameters ( RoleName role ) const

inline

Definition at line 487 of file primitives/RegulatoryElement.h.

◆ parameters() [1/2]

const RuleParameterMap& lanelet::RegulatoryElement::parameters ( ) const

inlineprotected

Definition at line 245 of file primitives/RegulatoryElement.h.

◆ parameters() [2/2]

RuleParameterMap& lanelet::RegulatoryElement::parameters ( )

inlineprotected

Definition at line 246 of file primitives/RegulatoryElement.h.

◆ roles()

std::vector<std::string> lanelet::RegulatoryElement::roles ( ) const

inline

returns all the roles this regulatory element has

Definition at line 224 of file primitives/RegulatoryElement.h.

◆ setId()

void lanelet::RegulatoryElement::setId ( Id id )

inlinenoexcept

Definition at line 195 of file primitives/RegulatoryElement.h.

◆ size()

size_t lanelet::RegulatoryElement::size ( ) const

inline

get the number of roles in this regulatoryElement

Definition at line 236 of file primitives/RegulatoryElement.h.

Friends And Related Function Documentation

◆ LaneletMap

friend class LaneletMap

friend

Definition at line 258 of file primitives/RegulatoryElement.h.

◆ RegulatoryElementFactory

friend class RegulatoryElementFactory

friend

Definition at line 257 of file primitives/RegulatoryElement.h.

Member Data Documentation

◆ RuleName

constexpr char lanelet::RegulatoryElement::RuleName = "basic_regulatory_element"

static

Definition at line 185 of file primitives/RegulatoryElement.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ Category

◆ const_iterator

◆ ConstType

◆ iterator

◆ MutableType

◆ ThreeDType

◆ TwoDType

Constructor & Destructor Documentation

◆ ~RegulatoryElement()

◆ RegulatoryElement() [1/2]

◆ RegulatoryElement() [2/2]

Member Function Documentation

◆ applyVisitor() [1/2]

◆ applyVisitor() [2/2]

◆ begin()

◆ data()

◆ empty()

◆ end()

◆ find() [1/4]

◆ find() [2/4]

◆ find() [3/4]

◆ find() [4/4]

◆ getParameters() [1/8]

◆ getParameters() [2/8]

◆ getParameters() [3/8]

◆ getParameters() [4/8]

◆ getParameters() [5/8]

◆ getParameters() [6/8]

◆ getParameters() [7/8]

◆ getParameters() [8/8]

◆ parameters() [1/2]

◆ parameters() [2/2]

◆ roles()

◆ setId()

◆ size()

Friends And Related Function Documentation

◆ LaneletMap

◆ RegulatoryElementFactory

Member Data Documentation

◆ RuleName
