An immutable 2d point. More...

#include <Point.h>

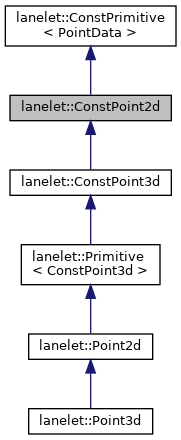

Inheritance diagram for lanelet::ConstPoint2d:

[legend]

Public Types
using	BasicPoint = BasicPoint2d
	returned basic point type More...

using	Category = traits::PointTag

using	ConstType = ConstPoint2d

using	MutableType = Point2d

using	ThreeDType = ConstPoint3d

using	TwoDType = ConstPoint2d

Public Types inherited from lanelet::ConstPrimitive< PointData >
using	DataType = PointData

Public Member Functions
	ConstPoint2d (Id id, const BasicPoint3d &point, const AttributeMap &attributes=AttributeMap())
	Construct from an id and a point. More...

Public Member Functions inherited from lanelet::ConstPrimitive< PointData >
const Attribute &	attribute (const std::string &name) const
	retrieve an attribute More...

const Attribute &	attribute (AttributeName name) const
	retrieve an attribute (enum version) More...

T	attributeOr (const std::string &name, T defaultVal) const noexcept
	retrieve an attribute (string version) More...

T	attributeOr (AttributeName name, T defaultVal) const
	retrieve an attribute (enum version) More...

const AttributeMap &	attributes () const
	get the attributes of this primitive More...

const std::shared_ptr< const PointData > &	constData () const
	get the internal data of this primitive More...

	ConstPrimitive (const std::shared_ptr< const PointData > &data)
	Construct from a pointer to the data. More...

bool	hasAttribute (const std::string &name) const noexcept
	check whether this primitive has a specific attribute More...

bool	hasAttribute (AttributeName name) const noexcept
	check for an attribute (enum version) More...

Id	id () const noexcept
	get the unique id of this primitive More...

bool	operator!= (const ConstPrimitive &rhs) const

bool	operator== (const ConstPrimitive &rhs) const

Static Public Attributes
static constexpr traits::Dimensions	Dimension = traits::Dimensions::Two

Static Public Attributes inherited from lanelet::ConstPrimitive< PointData >
static constexpr bool	IsConst

Additional Inherited Members
Protected Member Functions inherited from lanelet::ConstPrimitive< PointData >
	ConstPrimitive (ConstPrimitive &&rhs) noexcept=default

	ConstPrimitive (const ConstPrimitive &rhs)=default

ConstPrimitive &	operator= (ConstPrimitive &&rhs) noexcept=default

ConstPrimitive &	operator= (const ConstPrimitive &rhs)=default

	~ConstPrimitive () noexcept=default

Detailed Description

An immutable 2d point.

Definition at line 150 of file primitives/Point.h.

Member Typedef Documentation

◆ BasicPoint

using lanelet::ConstPoint2d::BasicPoint = BasicPoint2d

returned basic point type

Definition at line 152 of file primitives/Point.h.

◆ Category

using lanelet::ConstPoint2d::Category = traits::PointTag

Definition at line 157 of file primitives/Point.h.

◆ ConstType

using lanelet::ConstPoint2d::ConstType = ConstPoint2d

Definition at line 153 of file primitives/Point.h.

◆ MutableType

using lanelet::ConstPoint2d::MutableType = Point2d

Definition at line 154 of file primitives/Point.h.

◆ ThreeDType

using lanelet::ConstPoint2d::ThreeDType = ConstPoint3d

Definition at line 156 of file primitives/Point.h.

◆ TwoDType

using lanelet::ConstPoint2d::TwoDType = ConstPoint2d

Definition at line 155 of file primitives/Point.h.

Constructor & Destructor Documentation

◆ ConstPoint2d()

lanelet::ConstPoint2d::ConstPoint2d	(	Id	id,
		const BasicPoint3d &	point,
		const AttributeMap &	attributes = `AttributeMap()`
	)

inline

Construct from an id and a point.

Definition at line 163 of file primitives/Point.h.

Member Data Documentation

◆ Dimension

constexpr traits::Dimensions lanelet::ConstPoint2d::Dimension = traits::Dimensions::Two

static

Definition at line 158 of file primitives/Point.h.

The documentation for this class was generated from the following file:

primitives/Point.h
