A plottable that adds a set of error bars to other plottables. More...

#include <qcustomplot.h>

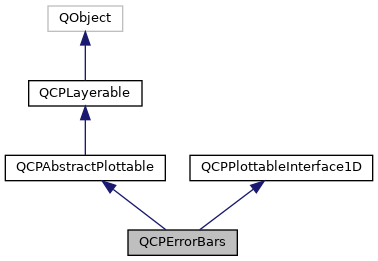

Inheritance diagram for QCPErrorBars:

Public Types
enum	ErrorType { etKeyError, etValueError }

Public Member Functions
void	addData (const QVector< double > &error)

void	addData (const QVector< double > &errorMinus, const QVector< double > &errorPlus)

void	addData (double error)

void	addData (double errorMinus, double errorPlus)

QSharedPointer< QCPErrorBarsDataContainer >	data () const

virtual int	dataCount () const Q_DECL_OVERRIDE

virtual double	dataMainKey (int index) const Q_DECL_OVERRIDE

virtual double	dataMainValue (int index) const Q_DECL_OVERRIDE

virtual QPointF	dataPixelPosition (int index) const Q_DECL_OVERRIDE

QCPAbstractPlottable *	dataPlottable () const

virtual double	dataSortKey (int index) const Q_DECL_OVERRIDE

virtual QCPRange	dataValueRange (int index) const Q_DECL_OVERRIDE

ErrorType	errorType () const

virtual int	findBegin (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE

virtual int	findEnd (double sortKey, bool expandedRange=true) const Q_DECL_OVERRIDE

virtual QCPPlottableInterface1D *	interface1D () Q_DECL_OVERRIDE

	QCPErrorBars (QCPAxis keyAxis, QCPAxis valueAxis)

virtual double	selectTest (const QPointF &pos, bool onlySelectable, QVariant *details=0) const Q_DECL_OVERRIDE

virtual QCPDataSelection	selectTestRect (const QRectF &rect, bool onlySelectable) const Q_DECL_OVERRIDE

void	setData (QSharedPointer< QCPErrorBarsDataContainer > data)

void	setData (const QVector< double > &error)

void	setData (const QVector< double > &errorMinus, const QVector< double > &errorPlus)

void	setDataPlottable (QCPAbstractPlottable *plottable)

void	setErrorType (ErrorType type)

void	setSymbolGap (double pixels)

void	setWhiskerWidth (double pixels)

virtual bool	sortKeyIsMainKey () const Q_DECL_OVERRIDE

double	symbolGap () const

double	whiskerWidth () const

virtual	~QCPErrorBars ()

Public Member Functions inherited from QCPAbstractPlottable
bool	addToLegend (QCPLegend *legend)

bool	addToLegend ()

bool	antialiasedFill () const

bool	antialiasedScatters () const

QBrush	brush () const

void	coordsToPixels (double key, double value, double &x, double &y) const

const QPointF	coordsToPixels (double key, double value) const

QCPAxis *	keyAxis () const

QString	name () const

QPen	pen () const

void	pixelsToCoords (double x, double y, double &key, double &value) const

void	pixelsToCoords (const QPointF &pixelPos, double &key, double &value) const

	QCPAbstractPlottable (QCPAxis keyAxis, QCPAxis valueAxis)

bool	removeFromLegend (QCPLegend *legend) const

bool	removeFromLegend () const

void	rescaleAxes (bool onlyEnlarge=false) const

void	rescaleKeyAxis (bool onlyEnlarge=false) const

void	rescaleValueAxis (bool onlyEnlarge=false, bool inKeyRange=false) const

QCP::SelectionType	selectable () const

bool	selected () const

QCPDataSelection	selection () const

QCPSelectionDecorator *	selectionDecorator () const

void	setAntialiasedFill (bool enabled)

void	setAntialiasedScatters (bool enabled)

void	setBrush (const QBrush &brush)

void	setKeyAxis (QCPAxis *axis)

void	setName (const QString &name)

void	setPen (const QPen &pen)

Q_SLOT void	setSelectable (QCP::SelectionType selectable)

Q_SLOT void	setSelection (QCPDataSelection selection)

void	setSelectionDecorator (QCPSelectionDecorator *decorator)

void	setValueAxis (QCPAxis *axis)

QCPAxis *	valueAxis () const

virtual	~QCPAbstractPlottable ()

Public Member Functions inherited from QCPLayerable
bool	antialiased () const

QCPLayer *	layer () const

QCPLayerable *	parentLayerable () const

QCustomPlot *	parentPlot () const

	QCPLayerable (QCustomPlot plot, QString targetLayer=QString(), QCPLayerable parentLayerable=0)

bool	realVisibility () const

void	setAntialiased (bool enabled)

Q_SLOT bool	setLayer (QCPLayer *layer)

bool	setLayer (const QString &layerName)

void	setVisible (bool on)

bool	visible () const

virtual	~QCPLayerable ()

Public Member Functions inherited from QCPPlottableInterface1D
virtual	~QCPPlottableInterface1D ()

Protected Member Functions
virtual void	draw (QCPPainter *painter) Q_DECL_OVERRIDE

virtual void	drawLegendIcon (QCPPainter *painter, const QRectF &rect) const Q_DECL_OVERRIDE

bool	errorBarVisible (int index) const

void	getDataSegments (QList< QCPDataRange > &selectedSegments, QList< QCPDataRange > &unselectedSegments) const

void	getErrorBarLines (QCPErrorBarsDataContainer::const_iterator it, QVector< QLineF > &backbones, QVector< QLineF > &whiskers) const

virtual QCPRange	getKeyRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth) const Q_DECL_OVERRIDE

virtual QCPRange	getValueRange (bool &foundRange, QCP::SignDomain inSignDomain=QCP::sdBoth, const QCPRange &inKeyRange=QCPRange()) const Q_DECL_OVERRIDE

void	getVisibleDataBounds (QCPErrorBarsDataContainer::const_iterator &begin, QCPErrorBarsDataContainer::const_iterator &end, const QCPDataRange &rangeRestriction) const

double	pointDistance (const QPointF &pixelPoint, QCPErrorBarsDataContainer::const_iterator &closestData) const

bool	rectIntersectsLine (const QRectF &pixelRect, const QLineF &line) const

Protected Member Functions inherited from QCPAbstractPlottable
void	applyDefaultAntialiasingHint (QCPPainter *painter) const Q_DECL_OVERRIDE

void	applyFillAntialiasingHint (QCPPainter *painter) const

void	applyScattersAntialiasingHint (QCPPainter *painter) const

virtual QRect	clipRect () const Q_DECL_OVERRIDE

virtual void	deselectEvent (bool *selectionStateChanged) Q_DECL_OVERRIDE

virtual void	selectEvent (QMouseEvent event, bool additive, const QVariant &details, bool selectionStateChanged) Q_DECL_OVERRIDE

virtual QCP::Interaction	selectionCategory () const Q_DECL_OVERRIDE

Protected Member Functions inherited from QCPLayerable
void	applyAntialiasingHint (QCPPainter *painter, bool localAntialiased, QCP::AntialiasedElement overrideElement) const

void	initializeParentPlot (QCustomPlot *parentPlot)

virtual void	mouseDoubleClickEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseMoveEvent (QMouseEvent *event, const QPointF &startPos)

virtual void	mousePressEvent (QMouseEvent *event, const QVariant &details)

virtual void	mouseReleaseEvent (QMouseEvent *event, const QPointF &startPos)

bool	moveToLayer (QCPLayer *layer, bool prepend)

virtual void	parentPlotInitialized (QCustomPlot *parentPlot)

void	setParentLayerable (QCPLayerable *parentLayerable)

virtual void	wheelEvent (QWheelEvent *event)

Protected Attributes
QSharedPointer< QCPErrorBarsDataContainer >	mDataContainer

QPointer< QCPAbstractPlottable >	mDataPlottable

ErrorType	mErrorType

double	mSymbolGap

double	mWhiskerWidth

Protected Attributes inherited from QCPAbstractPlottable
bool	mAntialiasedFill

bool	mAntialiasedScatters

QBrush	mBrush

QPointer< QCPAxis >	mKeyAxis

QString	mName

QPen	mPen

QCP::SelectionType	mSelectable

QCPDataSelection	mSelection

QCPSelectionDecorator *	mSelectionDecorator

QPointer< QCPAxis >	mValueAxis

Protected Attributes inherited from QCPLayerable
bool	mAntialiased

QCPLayer *	mLayer

QPointer< QCPLayerable >	mParentLayerable

QCustomPlot *	mParentPlot

bool	mVisible

Friends
class	QCPLegend

class	QCustomPlot

Additional Inherited Members
Signals inherited from QCPAbstractPlottable
void	selectableChanged (QCP::SelectionType selectable)

void	selectionChanged (bool selected)

void	selectionChanged (const QCPDataSelection &selection)

Signals inherited from QCPLayerable
void	layerChanged (QCPLayer *newLayer)

Detailed Description

A plottable that adds a set of error bars to other plottables.

The QCPErrorBars plottable can be attached to other one-dimensional plottables (e.g. QCPGraph, QCPCurve, QCPBars, etc.) and equips them with error bars.

Use setDataPlottable to define for which plottable the QCPErrorBars shall display the error bars. The orientation of the error bars can be controlled with setErrorType.

By using setData, you can supply the actual error data, either as symmetric error or plus/minus asymmetric errors. QCPErrorBars only stores the error data. The absolute key/value position of each error bar will be adopted from the configured data plottable. The error data of the QCPErrorBars are associated one-to-one via their index to the data points of the data plottable. You can directly access and manipulate the error bar data via data.

Set either of the plus/minus errors to NaN (qQNaN() or std::numeric_limits<double>::quiet_NaN()) to not show the respective error bar on the data point at that index.

Changing the appearance

The appearance of the error bars is defined by the pen (setPen), and the width of the whiskers (setWhiskerWidth). Further, the error bar backbones may leave a gap around the data point center to prevent that error bars are drawn too close to or even through scatter points. This gap size can be controlled via setSymbolGap.

Definition at line 5995 of file qcustomplot.h.

Member Enumeration Documentation

◆ ErrorType

enum QCPErrorBars::ErrorType

Defines in which orientation the error bars shall appear. If your data needs both error dimensions, create two QCPErrorBars with different ErrorType.

See also: setErrorType

Enumerator
etKeyError	The errors are for the key dimension (bars appear parallel to the key axis)
etValueError	The errors are for the value dimension (bars appear parallel to the value axis)

Definition at line 6013 of file qcustomplot.h.

Constructor & Destructor Documentation

◆ QCPErrorBars()

QCPErrorBars::QCPErrorBars	(	QCPAxis *	keyAxis,
		QCPAxis *	valueAxis
	)

explicit

Constructs an error bars plottable which uses keyAxis as its key axis ("x") and valueAxis as its value axis ("y"). keyAxis and valueAxis must reside in the same QCustomPlot instance and not have the same orientation. If either of these restrictions is violated, a corresponding message is printed to the debug output (qDebug), the construction is not aborted, though.

It is also important that the keyAxis and valueAxis are the same for the error bars plottable and the data plottable that the error bars shall be drawn on (setDataPlottable).

The created QCPErrorBars is automatically registered with the QCustomPlot instance inferred from keyAxis. This QCustomPlot instance takes ownership of the QCPErrorBars, so do not delete it manually but use QCustomPlot::removePlottable() instead.

Definition at line 27202 of file qcustomplot.cpp.

◆ ~QCPErrorBars()

QCPErrorBars::~QCPErrorBars ( )

virtual

Definition at line 27213 of file qcustomplot.cpp.

Member Function Documentation

◆ addData() [1/4]

void QCPErrorBars::addData ( const QVector< double > & error )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds symmetrical error values as specified in error. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: setData

Definition at line 27340 of file qcustomplot.cpp.

◆ addData() [2/4]

void QCPErrorBars::addData	(	const QVector< double > &	errorMinus,
		const QVector< double > &	errorPlus
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds asymmetrical errors as specified in errorMinus and errorPlus. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: setData

Definition at line 27355 of file qcustomplot.cpp.

◆ addData() [3/4]

void QCPErrorBars::addData ( double error )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds a single symmetrical error bar as specified in error. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: setData

Definition at line 27374 of file qcustomplot.cpp.

◆ addData() [4/4]

void QCPErrorBars::addData	(	double	errorMinus,
		double	errorPlus
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Adds a single asymmetrical error bar as specified in errorMinus and errorPlus. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: setData

Definition at line 27389 of file qcustomplot.cpp.

◆ data()

QSharedPointer< QCPErrorBarsDataContainer > QCPErrorBars::data ( ) const

inline

Returns a shared pointer to the internal data storage of type QCPErrorBarsDataContainer. You may use it to directly manipulate the error values, which may be more convenient and faster than using the regular setData methods.

Definition at line 6021 of file qcustomplot.h.

◆ dataCount()

int QCPErrorBars::dataCount ( ) const

virtual

Returns the number of data points of the plottable.

Implements QCPPlottableInterface1D.

Definition at line 27395 of file qcustomplot.cpp.

◆ dataMainKey()

double QCPErrorBars::dataMainKey ( int index ) const

virtual

Returns the main key of the data point at the given index.

What the main key is, is defined by the plottable's data type. See the QCPDataContainer DataType documentation for details about this naming convention.

Implements QCPPlottableInterface1D.

Definition at line 27401 of file qcustomplot.cpp.

◆ dataMainValue()

double QCPErrorBars::dataMainValue ( int index ) const

virtual

Returns the main value of the data point at the given index.

What the main value is, is defined by the plottable's data type. See the QCPDataContainer DataType documentation for details about this naming convention.

Implements QCPPlottableInterface1D.

Definition at line 27421 of file qcustomplot.cpp.

◆ dataPixelPosition()

QPointF QCPErrorBars::dataPixelPosition ( int index ) const

virtual

Returns the pixel position on the widget surface at which the data point at the given index appears.

Usually this corresponds to the point of dataMainKey/dataMainValue, in pixel coordinates. However, depending on the plottable, this might be a different apparent position than just a coord-to-pixel transform of those values. For example, QCPBars apparent data values can be shifted depending on their stacking, bar grouping or configured base value.

Implements QCPPlottableInterface1D.

Definition at line 27448 of file qcustomplot.cpp.

◆ dataPlottable()

QCPAbstractPlottable* QCPErrorBars::dataPlottable ( ) const

inline

Definition at line 6022 of file qcustomplot.h.

◆ dataSortKey()

double QCPErrorBars::dataSortKey ( int index ) const

virtual

Returns the sort key of the data point at the given index.

What the sort key is, is defined by the plottable's data type. See the QCPDataContainer DataType documentation for details about this naming convention.

Implements QCPPlottableInterface1D.

Definition at line 27411 of file qcustomplot.cpp.

◆ dataValueRange()

QCPRange QCPErrorBars::dataValueRange ( int index ) const

virtual

Returns the value range of the data point at the given index.

What the value range is, is defined by the plottable's data type. See the QCPDataContainer DataType documentation for details about this naming convention.

Implements QCPPlottableInterface1D.

Definition at line 27431 of file qcustomplot.cpp.

◆ draw()

void QCPErrorBars::draw ( QCPPainter * painter )

protectedvirtual

Implements QCPAbstractPlottable.

Definition at line 27569 of file qcustomplot.cpp.

◆ drawLegendIcon()

void QCPErrorBars::drawLegendIcon	(	QCPPainter *	painter,
		const QRectF &	rect
	)		const

protectedvirtual

Implements QCPAbstractPlottable.

Definition at line 27631 of file qcustomplot.cpp.

◆ errorBarVisible()

bool QCPErrorBars::errorBarVisible ( int index ) const

protected

Definition at line 28016 of file qcustomplot.cpp.

◆ errorType()

ErrorType QCPErrorBars::errorType ( ) const

inline

Definition at line 6023 of file qcustomplot.h.

◆ findBegin()

int QCPErrorBars::findBegin	(	double	sortKey,
		bool	expandedRange = `true`
	)		const

virtual

Returns the index of the data point with a (sort-)key that is equal to, just below, or just above sortKey. If expandedRange is true, the data point just below sortKey will be considered, otherwise the one just above.

This can be used in conjunction with findEnd to iterate over data points within a given key range, including or excluding the bounding data points that are just beyond the specified range.

If expandedRange is true but there are no data points below sortKey, 0 is returned.

If the container is empty, returns 0 (in that case, findEnd will also return 0, so a loop using these methods will not iterate over the index 0).

See also: findEnd, QCPDataContainer::findBegin

Implements QCPPlottableInterface1D.

Definition at line 27506 of file qcustomplot.cpp.

◆ findEnd()

int QCPErrorBars::findEnd	(	double	sortKey,
		bool	expandedRange = `true`
	)		const

virtual

Returns the index one after the data point with a (sort-)key that is equal to, just above, or just below sortKey. If expandedRange is true, the data point just above sortKey will be considered, otherwise the one just below.

This can be used in conjunction with findBegin to iterate over data points within a given key range, including the bounding data points that are just below and above the specified range.

If expandedRange is true but there are no data points above sortKey, the index just above the highest data point is returned.

If the container is empty, returns 0.

See also: findBegin, QCPDataContainer::findEnd

Implements QCPPlottableInterface1D.

Definition at line 27522 of file qcustomplot.cpp.

◆ getDataSegments()

void QCPErrorBars::getDataSegments	(	QList< QCPDataRange > &	selectedSegments,
		QList< QCPDataRange > &	unselectedSegments
	)		const

protected

Definition at line 27988 of file qcustomplot.cpp.

◆ getErrorBarLines()

void QCPErrorBars::getErrorBarLines	(	QCPErrorBarsDataContainer::const_iterator	it,
		QVector< QLineF > &	backbones,
		QVector< QLineF > &	whiskers
	)		const

protected

Definition at line 27820 of file qcustomplot.cpp.

◆ getKeyRange()

QCPRange QCPErrorBars::getKeyRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`
	)		const

protectedvirtual

Returns the coordinate range that all data in this plottable span in the key axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getValueRange

Implements QCPAbstractPlottable.

Definition at line 27649 of file qcustomplot.cpp.

◆ getValueRange()

QCPRange QCPErrorBars::getValueRange	(	bool &	foundRange,
		QCP::SignDomain	inSignDomain = `QCP::sdBoth`,
		const QCPRange &	inKeyRange = `QCPRange()`
	)		const

protectedvirtual

Returns the coordinate range that the data points in the specified key range (inKeyRange) span in the value axis dimension. For logarithmic plots, one can set inSignDomain to either QCP::sdNegative or QCP::sdPositive in order to restrict the returned range to that sign domain. E.g. when only negative range is wanted, set inSignDomain to QCP::sdNegative and all positive points will be ignored for range calculation. For no restriction, just set inSignDomain to QCP::sdBoth (default). foundRange is an output parameter that indicates whether a range could be found or not. If this is false, you shouldn't use the returned range (e.g. no points in data).

If inKeyRange has both lower and upper bound set to zero (is equal to QCPRange()), all data points are considered, without any restriction on the keys.

Note that foundRange is not the same as QCPRange::validRange, since the range returned by this function may have size zero (e.g. when there is only one data point). In this case foundRange would return true, but the returned range is not a valid range in terms of QCPRange::validRange.

See also: rescaleAxes, getKeyRange

Implements QCPAbstractPlottable.

Definition at line 27723 of file qcustomplot.cpp.

◆ getVisibleDataBounds()

void QCPErrorBars::getVisibleDataBounds	(	QCPErrorBarsDataContainer::const_iterator &	begin,
		QCPErrorBarsDataContainer::const_iterator &	end,
		const QCPDataRange &	rangeRestriction
	)		const

protected

Definition at line 27889 of file qcustomplot.cpp.

◆ interface1D()

virtual QCPPlottableInterface1D* QCPErrorBars::interface1D ( )

inlinevirtual

If this plottable is a one-dimensional plottable, i.e. it implements the QCPPlottableInterface1D, returns the this pointer with that type. Otherwise (e.g. in the case of a QCPColorMap) returns zero.

You can use this method to gain read access to data coordinates while holding a pointer to the abstract base class only.

Reimplemented from QCPAbstractPlottable.

Definition at line 6056 of file qcustomplot.h.

◆ pointDistance()

double QCPErrorBars::pointDistance	(	const QPointF &	pixelPoint,
		QCPErrorBarsDataContainer::const_iterator &	closestData
	)		const

protected

Definition at line 27948 of file qcustomplot.cpp.

◆ rectIntersectsLine()

bool QCPErrorBars::rectIntersectsLine	(	const QRectF &	pixelRect,
		const QLineF &	line
	)		const

protected

Definition at line 28046 of file qcustomplot.cpp.

◆ selectTest()

double QCPErrorBars::selectTest	(	const QPointF &	pos,
		bool	onlySelectable,
		QVariant *	details = `0`
	)		const

virtual

Implements a selectTest specific to this plottable's point geometry.

If details is not 0, it will be set to a QCPDataSelection, describing the closest data point to pos.

QCPAbstractPlottable::selectTest

Implements QCPAbstractPlottable.

Definition at line 27545 of file qcustomplot.cpp.

◆ selectTestRect()

QCPDataSelection QCPErrorBars::selectTestRect	(	const QRectF &	rect,
		bool	onlySelectable
	)		const

virtual

Returns a data selection containing all the data points of this plottable which are contained (or hit by) rect. This is used mainly in the selection rect interaction for data selection (data selection mechanism).

If onlySelectable is true, an empty QCPDataSelection is returned if this plottable is not selectable (i.e. if QCPAbstractPlottable::setSelectable is QCP::stNone).

Note: rect must be a normalized rect (positive or zero width and height). This is especially important when using the rect of QCPSelectionRect::accepted, which is not necessarily normalized. Use QRect::normalized() when passing a rect which might not be normalized.

Implements QCPPlottableInterface1D.

Definition at line 27473 of file qcustomplot.cpp.

◆ setData() [1/3]

void QCPErrorBars::setData ( QSharedPointer< QCPErrorBarsDataContainer > data )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Replaces the current data container with the provided data container.

Since a QSharedPointer is used, multiple QCPErrorBars instances may share the same data container safely. Modifying the data in the container will then affect all QCPErrorBars instances that share the container. Sharing can be achieved by simply exchanging the data containers wrapped in shared pointers:

If you do not wish to share containers, but create a copy from an existing container, assign the data containers directly:

(This uses different notation compared with other plottables, because the QCPErrorBars uses a QVector<QCPErrorBarsData> as its data container, instead of a QCPDataContainer.)

See also: addData

Definition at line 27235 of file qcustomplot.cpp.

◆ setData() [2/3]

void QCPErrorBars::setData ( const QVector< double > & error )

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Sets symmetrical error values as specified in error. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: addData

Definition at line 27249 of file qcustomplot.cpp.

◆ setData() [3/3]

void QCPErrorBars::setData	(	const QVector< double > &	errorMinus,
		const QVector< double > &	errorPlus
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Sets asymmetrical errors as specified in errorMinus and errorPlus. The errors will be associated one-to-one by the data point index to the associated data plottable (setDataPlottable).

You can directly access and manipulate the error bar data via data.

See also: addData

Definition at line 27265 of file qcustomplot.cpp.

◆ setDataPlottable()

void QCPErrorBars::setDataPlottable ( QCPAbstractPlottable * plottable )

Sets the data plottable to which the error bars will be applied. The error values specified e.g. via setData will be associated one-to-one by the data point index to the data points of plottable. This means that the error bars will adopt the key/value coordinates of the data point with the same index.

The passed plottable must be a one-dimensional plottable, i.e. it must implement the QCPPlottableInterface1D. Further, it must not be a QCPErrorBars instance itself. If either of these restrictions is violated, a corresponding qDebug output is generated, and the data plottable of this QCPErrorBars instance is set to zero.

For proper display, care must also be taken that the key and value axes of the plottable match those configured for this QCPErrorBars instance.

Definition at line 27285 of file qcustomplot.cpp.

◆ setErrorType()

void QCPErrorBars::setErrorType ( ErrorType type )

Sets in which orientation the error bars shall appear on the data points. If your data needs both error dimensions, create two QCPErrorBars with different type.

Definition at line 27307 of file qcustomplot.cpp.

◆ setSymbolGap()

void QCPErrorBars::setSymbolGap ( double pixels )

Sets the gap diameter around the data points that will be left out when drawing the error bar backbones. This gap prevents that error bars are drawn too close to or even through scatter points.

Definition at line 27326 of file qcustomplot.cpp.

◆ setWhiskerWidth()

void QCPErrorBars::setWhiskerWidth ( double pixels )

Sets the width of the whiskers (the short bars at the end of the actual error bar backbones) to pixels.

Definition at line 27316 of file qcustomplot.cpp.

◆ sortKeyIsMainKey()

bool QCPErrorBars::sortKeyIsMainKey ( ) const

virtual

Returns whether the sort key (dataSortKey) is identical to the main key (dataMainKey).

What the sort and main keys are, is defined by the plottable's data type. See the QCPDataContainer DataType documentation for details about this naming convention.

Implements QCPPlottableInterface1D.

Definition at line 27458 of file qcustomplot.cpp.

◆ symbolGap()

double QCPErrorBars::symbolGap ( ) const

inline

Definition at line 6025 of file qcustomplot.h.

◆ whiskerWidth()

double QCPErrorBars::whiskerWidth ( ) const

inline

Definition at line 6024 of file qcustomplot.h.

Friends And Related Function Documentation

◆ QCPLegend

friend class QCPLegend

friend

Definition at line 6082 of file qcustomplot.h.

◆ QCustomPlot

friend class QCustomPlot

friend

Definition at line 6081 of file qcustomplot.h.

Member Data Documentation

◆ mDataContainer

QSharedPointer<QCPErrorBarsDataContainer> QCPErrorBars::mDataContainer

protected

Definition at line 6060 of file qcustomplot.h.

◆ mDataPlottable

QPointer<QCPAbstractPlottable> QCPErrorBars::mDataPlottable

protected

Definition at line 6061 of file qcustomplot.h.

◆ mErrorType

ErrorType QCPErrorBars::mErrorType

protected

Definition at line 6062 of file qcustomplot.h.

◆ mSymbolGap

double QCPErrorBars::mSymbolGap

protected

Definition at line 6064 of file qcustomplot.h.

◆ mWhiskerWidth

double QCPErrorBars::mWhiskerWidth

protected

Definition at line 6063 of file qcustomplot.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Changing the appearance

Member Enumeration Documentation

◆ ErrorType

Constructor & Destructor Documentation

◆ QCPErrorBars()

◆ ~QCPErrorBars()

Member Function Documentation

◆ addData() [1/4]

◆ addData() [2/4]

◆ addData() [3/4]

◆ addData() [4/4]

◆ data()

◆ dataCount()

◆ dataMainKey()

◆ dataMainValue()

◆ dataPixelPosition()

◆ dataPlottable()

◆ dataSortKey()

◆ dataValueRange()

◆ draw()

◆ drawLegendIcon()

◆ errorBarVisible()

◆ errorType()

◆ findBegin()

◆ findEnd()

◆ getDataSegments()

◆ getErrorBarLines()

◆ getKeyRange()

◆ getValueRange()

◆ getVisibleDataBounds()

◆ interface1D()

◆ pointDistance()

◆ rectIntersectsLine()

◆ selectTest()

◆ selectTestRect()

◆ setData() [1/3]

◆ setData() [2/3]

◆ setData() [3/3]

◆ setDataPlottable()

◆ setErrorType()

◆ setSymbolGap()

◆ setWhiskerWidth()

◆ sortKeyIsMainKey()

◆ symbolGap()

◆ whiskerWidth()

Friends And Related Function Documentation

◆ QCPLegend

◆ QCustomPlot

Member Data Documentation

◆ mDataContainer

◆ mDataPlottable

◆ mErrorType

◆ mSymbolGap

◆ mWhiskerWidth
