IColorO Class Reference

#include <iColorO.h>

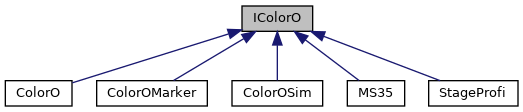

Inheritance diagram for IColorO:

Public Member Functions
int	getNumLeds ()
	IColorO ()
virtual bool	init ()=0
virtual void	setColor (color::rgba color)=0
virtual void	setColorMulti (std::vector< color::rgba > &colors)=0
void	setMask (int mask)
void	setNumLeds (size_t num_leds)
boost::signals2::signal< void(color::rgba color)> *	signalColorSet ()
boost::signals2::signal< void(std::vector< color::rgba > colors) > *	signalColorsSet ()
virtual	~IColorO ()

Protected Attributes
bool	_initialized
int	_invertMask
int	_num_leds
boost::signals2::signal< void(color::rgba color)>	m_sigColorSet
boost::signals2::signal< void(std::vector< color::rgba > colors) >	m_sigColorsSet

Detailed Description

Definition at line 24 of file iColorO.h.

Constructor & Destructor Documentation

IColorO()

IColorO::IColorO ( )

inline

Definition at line 27 of file iColorO.h.

~IColorO()

virtual IColorO::~IColorO ( )

inlinevirtual

Definition at line 28 of file iColorO.h.

Member Function Documentation

getNumLeds()

int IColorO::getNumLeds ( )

inline

Definition at line 36 of file iColorO.h.

init()

virtual bool IColorO::init ( )

pure virtual

Implemented in ColorOMarker, ColorO, ColorOSim, MS35, and StageProfi.

setColor()

virtual void IColorO::setColor ( color::rgba  color )

pure virtual

Implemented in ColorOMarker, StageProfi, ColorO, ColorOSim, and MS35.

setColorMulti()

virtual void IColorO::setColorMulti ( std::vector< color::rgba > &  colors )

pure virtual

Implemented in ColorOMarker, StageProfi, ColorO, ColorOSim, and MS35.

setMask()

void IColorO::setMask ( int  mask )

inline

Definition at line 34 of file iColorO.h.

setNumLeds()

void IColorO::setNumLeds ( size_t  num_leds )

inline

Definition at line 35 of file iColorO.h.

signalColorSet()

boost::signals2::signal<void (color::rgba color)>* IColorO::signalColorSet ( )

inline

Definition at line 38 of file iColorO.h.

signalColorsSet()

boost::signals2::signal<void (std::vector<color::rgba> colors) >* IColorO::signalColorsSet ( )

inline

Definition at line 39 of file iColorO.h.

Member Data Documentation

_initialized

bool IColorO::_initialized

protected

Definition at line 42 of file iColorO.h.

_invertMask

int IColorO::_invertMask

protected

Definition at line 43 of file iColorO.h.

_num_leds

int IColorO::_num_leds

protected

Definition at line 44 of file iColorO.h.

m_sigColorSet

boost::signals2::signal<void (color::rgba color)> IColorO::m_sigColorSet

protected

Definition at line 45 of file iColorO.h.

m_sigColorsSet

boost::signals2::signal<void (std::vector<color::rgba> colors) > IColorO::m_sigColorsSet

protected

Definition at line 46 of file iColorO.h.

---

The documentation for this class was generated from the following file:

• iColorO.h
