A sparse direct LU factorization and solver based on the SuperLU library. More...

#include <SuperLUSupport.h>

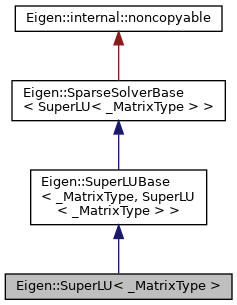

Inheritance diagram for Eigen::SuperLU< _MatrixType >:

Public Types
typedef SuperLUBase< _MatrixType, SuperLU >	Base

typedef Base::IntColVectorType	IntColVectorType

typedef Base::IntRowVectorType	IntRowVectorType

typedef TriangularView< LUMatrixType, Lower\|UnitDiag >	LMatrixType

typedef Base::LUMatrixType	LUMatrixType

typedef _MatrixType	MatrixType

typedef Base::PermutationMap	PermutationMap

typedef Base::RealScalar	RealScalar

typedef Base::Scalar	Scalar

typedef Base::StorageIndex	StorageIndex

typedef TriangularView< LUMatrixType, Upper >	UMatrixType

Public Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
enum

typedef Matrix< int, MatrixType::RowsAtCompileTime, 1 >	IntColVectorType

typedef Matrix< int, 1, MatrixType::ColsAtCompileTime >	IntRowVectorType

typedef SparseMatrix< Scalar >	LUMatrixType

typedef _MatrixType	MatrixType

typedef Map< PermutationMatrix< Dynamic, Dynamic, int > >	PermutationMap

typedef MatrixType::RealScalar	RealScalar

typedef MatrixType::Scalar	Scalar

typedef MatrixType::StorageIndex	StorageIndex

typedef Matrix< Scalar, Dynamic, 1 >	Vector

Public Member Functions
template<typename Rhs , typename Dest >
void	_solve_impl (const MatrixBase< Rhs > &b, MatrixBase< Dest > &dest) const

void	analyzePattern (const MatrixType &matrix)

Scalar	determinant () const

void	factorize (const MatrixType &matrix)

const LMatrixType &	matrixL () const

const UMatrixType &	matrixU () const

const IntColVectorType &	permutationP () const

const IntRowVectorType &	permutationQ () const

	SuperLU ()

	SuperLU (const MatrixType &matrix)

	~SuperLU ()

Public Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
void	analyzePattern (const MatrixType &)

Index	cols () const

void	compute (const MatrixType &matrix)

void	dumpMemory (Stream &)

ComputationInfo	info () const
	Reports whether previous computation was successful. More...

superlu_options_t &	options ()

Index	rows () const

	SuperLUBase ()

	~SuperLUBase ()

Public Member Functions inherited from Eigen::SparseSolverBase< SuperLU< _MatrixType > >
void	_solve_impl (const SparseMatrixBase< Rhs > &b, SparseMatrixBase< Dest > &dest) const

SuperLU< _MatrixType > &	derived ()

const SuperLU< _MatrixType > &	derived () const

const Solve< SuperLU< _MatrixType >, Rhs >	solve (const MatrixBase< Rhs > &b) const

const Solve< SuperLU< _MatrixType >, Rhs >	solve (const SparseMatrixBase< Rhs > &b) const

	SparseSolverBase ()

	~SparseSolverBase ()

Protected Member Functions
void	init ()

Protected Member Functions inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
void	clearFactors ()

void	extractData () const

void	init ()

void	initFactorization (const MatrixType &a)

Private Member Functions
	SuperLU (SuperLU &)

Additional Inherited Members
Protected Types inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
typedef SparseSolverBase< SuperLU< _MatrixType > >	Base

Protected Attributes inherited from Eigen::SuperLUBase< _MatrixType, SuperLU< _MatrixType > >
int	m_analysisIsOk

bool	m_extractedDataAreDirty

int	m_factorizationIsOk

ComputationInfo	m_info

LUMatrixType	m_l

LUMatrixType	m_matrix

IntColVectorType	m_p

IntRowVectorType	m_q

SluMatrix	m_sluA

SluMatrix	m_sluB

Matrix< RealScalar, Dynamic, 1 >	m_sluBerr

Matrix< RealScalar, Dynamic, 1 >	m_sluCscale

char	m_sluEqued

std::vector< int >	m_sluEtree

Matrix< RealScalar, Dynamic, 1 >	m_sluFerr

SuperMatrix	m_sluL

superlu_options_t	m_sluOptions

Matrix< RealScalar, Dynamic, 1 >	m_sluRscale

SuperLUStat_t	m_sluStat

SuperMatrix	m_sluU

SluMatrix	m_sluX

LUMatrixType	m_u

Protected Attributes inherited from Eigen::SparseSolverBase< SuperLU< _MatrixType > >
bool	m_isInitialized

Detailed Description

template<typename _MatrixType>
class Eigen::SuperLU< _MatrixType >

A sparse direct LU factorization and solver based on the SuperLU library.

This class allows to solve for A.X = B sparse linear problems via a direct LU factorization using the SuperLU library. The sparse matrix A must be squared and invertible. The vectors or matrices X and B can be either dense or sparse.

Template Parameters

_MatrixType the type of the sparse matrix A, it must be a SparseMatrix<>

Warning: This class is only for the 4.x versions of SuperLU. The 3.x and 5.x versions are not supported.

See also: TutorialSparseSolverConcept, class SparseLU

Definition at line 488 of file SuperLUSupport.h.

Member Typedef Documentation

◆ Base

template<typename _MatrixType>

typedef SuperLUBase<_MatrixType,SuperLU> Eigen::SuperLU< _MatrixType >::Base

Definition at line 491 of file SuperLUSupport.h.

◆ IntColVectorType

template<typename _MatrixType>

typedef Base::IntColVectorType Eigen::SuperLU< _MatrixType >::IntColVectorType

Definition at line 497 of file SuperLUSupport.h.

◆ IntRowVectorType

template<typename _MatrixType>

typedef Base::IntRowVectorType Eigen::SuperLU< _MatrixType >::IntRowVectorType

Definition at line 496 of file SuperLUSupport.h.

◆ LMatrixType

template<typename _MatrixType>

typedef TriangularView<LUMatrixType, Lower|UnitDiag> Eigen::SuperLU< _MatrixType >::LMatrixType

Definition at line 500 of file SuperLUSupport.h.

◆ LUMatrixType

template<typename _MatrixType>

typedef Base::LUMatrixType Eigen::SuperLU< _MatrixType >::LUMatrixType

Definition at line 499 of file SuperLUSupport.h.

◆ MatrixType

template<typename _MatrixType>

typedef _MatrixType Eigen::SuperLU< _MatrixType >::MatrixType

Definition at line 492 of file SuperLUSupport.h.

◆ PermutationMap

template<typename _MatrixType>

typedef Base::PermutationMap Eigen::SuperLU< _MatrixType >::PermutationMap

Definition at line 498 of file SuperLUSupport.h.

◆ RealScalar

template<typename _MatrixType>

typedef Base::RealScalar Eigen::SuperLU< _MatrixType >::RealScalar

Definition at line 494 of file SuperLUSupport.h.

◆ Scalar

template<typename _MatrixType>

typedef Base::Scalar Eigen::SuperLU< _MatrixType >::Scalar

Definition at line 493 of file SuperLUSupport.h.

◆ StorageIndex

template<typename _MatrixType>

typedef Base::StorageIndex Eigen::SuperLU< _MatrixType >::StorageIndex

Definition at line 495 of file SuperLUSupport.h.

◆ UMatrixType

template<typename _MatrixType>

typedef TriangularView<LUMatrixType, Upper> Eigen::SuperLU< _MatrixType >::UMatrixType

Definition at line 501 of file SuperLUSupport.h.

Constructor & Destructor Documentation

◆ SuperLU() [1/3]

template<typename _MatrixType>

Eigen::SuperLU< _MatrixType >::SuperLU ( )

inline

Definition at line 506 of file SuperLUSupport.h.

◆ SuperLU() [2/3]

template<typename _MatrixType>

Eigen::SuperLU< _MatrixType >::SuperLU ( const MatrixType & matrix )

inlineexplicit

Definition at line 508 of file SuperLUSupport.h.

◆ ~SuperLU()

template<typename _MatrixType>

Eigen::SuperLU< _MatrixType >::~SuperLU ( )

inline

Definition at line 514 of file SuperLUSupport.h.

◆ SuperLU() [3/3]

template<typename _MatrixType>

Eigen::SuperLU< _MatrixType >::SuperLU ( SuperLU< _MatrixType > & )

inlineprivate

Definition at line 609 of file SuperLUSupport.h.

Member Function Documentation

◆ _solve_impl()

template<typename MatrixType >

template<typename Rhs , typename Dest >

void Eigen::SuperLU< MatrixType >::_solve_impl	(	const MatrixBase< Rhs > &	b,
		MatrixBase< Dest > &	dest
	)		const

Definition at line 649 of file SuperLUSupport.h.

◆ analyzePattern()

template<typename _MatrixType>

void Eigen::SuperLU< _MatrixType >::analyzePattern ( const MatrixType & matrix )

inline

Performs a symbolic decomposition on the sparcity of matrix.

This function is particularly useful when solving for several problems having the same structure.

See also: factorize()

Definition at line 524 of file SuperLUSupport.h.

◆ determinant()

template<typename MatrixType >

SuperLU< MatrixType >::Scalar Eigen::SuperLU< MatrixType >::determinant ( ) const

Definition at line 793 of file SuperLUSupport.h.

◆ factorize()

template<typename MatrixType >

void Eigen::SuperLU< MatrixType >::factorize ( const MatrixType & matrix )

Performs a numeric decomposition of matrix

The given matrix must has the same sparcity than the matrix on which the symbolic decomposition has been performed.

See also: analyzePattern()

Definition at line 613 of file SuperLUSupport.h.

◆ init()

template<typename _MatrixType>

void Eigen::SuperLU< _MatrixType >::init ( )

inlineprotected

Definition at line 596 of file SuperLUSupport.h.

◆ matrixL()

template<typename _MatrixType>

const LMatrixType& Eigen::SuperLU< _MatrixType >::matrixL ( ) const

inline

Definition at line 543 of file SuperLUSupport.h.

◆ matrixU()

template<typename _MatrixType>

const UMatrixType& Eigen::SuperLU< _MatrixType >::matrixU ( ) const

inline

Definition at line 549 of file SuperLUSupport.h.

◆ permutationP()

template<typename _MatrixType>

const IntColVectorType& Eigen::SuperLU< _MatrixType >::permutationP ( ) const

inline

Definition at line 555 of file SuperLUSupport.h.

◆ permutationQ()

template<typename _MatrixType>

const IntRowVectorType& Eigen::SuperLU< _MatrixType >::permutationQ ( ) const

inline

Definition at line 561 of file SuperLUSupport.h.

The documentation for this class was generated from the following file:

SuperLUSupport.h
