picovoice_driver: stm32f4xx_hal_smbus.h File Reference

Header file of SMBUS HAL module. More...

#include "stm32f4xx_hal_def.h"

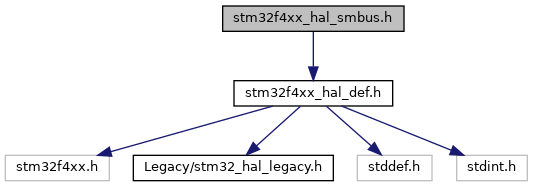

Include dependency graph for stm32f4xx_hal_smbus.h:

Classes
struct	__SMBUS_HandleTypeDef
	SMBUS handle Structure definition. More...

struct	SMBUS_InitTypeDef
	SMBUS Configuration Structure definition. More...

Macros
#define	__HAL_SMBUS_CLEAR_ADDRFLAG(__HANDLE__)
	Clears the SMBUS ADDR pending flag. More...

#define	__HAL_SMBUS_CLEAR_FLAG(__HANDLE__, __FLAG__) ((__HANDLE__)->Instance->SR1 = ~((__FLAG__) & SMBUS_FLAG_MASK))
	Clears the SMBUS pending flags which are cleared by writing 0 in a specific bit. More...

#define	__HAL_SMBUS_CLEAR_STOPFLAG(__HANDLE__)
	Clears the SMBUS STOPF pending flag. More...

#define	__HAL_SMBUS_DISABLE(__HANDLE__) ((__HANDLE__)->Instance->CR1 &= ~I2C_CR1_PE)
	Disable the SMBUS peripheral. More...

#define	__HAL_SMBUS_DISABLE_IT(__HANDLE__, __INTERRUPT__) ((__HANDLE__)->Instance->CR2 &= (~(__INTERRUPT__)))

#define	__HAL_SMBUS_ENABLE(__HANDLE__) ((__HANDLE__)->Instance->CR1 \|= I2C_CR1_PE)
	Enable the SMBUS peripheral. More...

#define	__HAL_SMBUS_ENABLE_IT(__HANDLE__, __INTERRUPT__) ((__HANDLE__)->Instance->CR2 \|= (__INTERRUPT__))
	Enable or disable the specified SMBUS interrupts. More...

#define	__HAL_SMBUS_GENERATE_NACK(__HANDLE__) (CLEAR_BIT((__HANDLE__)->Instance->CR1, I2C_CR1_ACK))
	Generate a Non-Acknowledge SMBUS peripheral in Slave mode. More...

#define	__HAL_SMBUS_GET_FLAG(__HANDLE__, __FLAG__)
	Checks whether the specified SMBUS flag is set or not. More...

#define	__HAL_SMBUS_GET_IT_SOURCE(__HANDLE__, __INTERRUPT__) ((((__HANDLE__)->Instance->CR2 & (__INTERRUPT__)) == (__INTERRUPT__)) ? SET : RESET)
	Checks if the specified SMBUS interrupt source is enabled or disabled. More...

#define	__HAL_SMBUS_RESET_HANDLE_STATE(__HANDLE__) ((__HANDLE__)->State = HAL_SMBUS_STATE_RESET)
	Reset SMBUS handle state. More...

#define	HAL_SMBUS_ERROR_AF 0x00000004U

#define	HAL_SMBUS_ERROR_ALERT 0x00000020U

#define	HAL_SMBUS_ERROR_ARLO 0x00000002U

#define	HAL_SMBUS_ERROR_BERR 0x00000001U

#define	HAL_SMBUS_ERROR_NONE 0x00000000U

#define	HAL_SMBUS_ERROR_OVR 0x00000008U

#define	HAL_SMBUS_ERROR_PECERR 0x00000040U

#define	HAL_SMBUS_ERROR_TIMEOUT 0x00000010U

#define	IS_SMBUS_ADDRESSING_MODE(ADDRESS)

#define	IS_SMBUS_CLOCK_SPEED(SPEED) (((SPEED) > 0U) && ((SPEED) <= 100000U))

#define	IS_SMBUS_DUAL_ADDRESS(ADDRESS)

#define	IS_SMBUS_GENERAL_CALL(CALL)

#define	IS_SMBUS_NO_STRETCH(STRETCH)

#define	IS_SMBUS_OWN_ADDRESS1(ADDRESS1) (((ADDRESS1) & 0xFFFFFC00U) == 0U)

#define	IS_SMBUS_OWN_ADDRESS2(ADDRESS2) (((ADDRESS2) & 0xFFFFFF01U) == 0U)

#define	IS_SMBUS_PEC(PEC)

#define	IS_SMBUS_PERIPHERAL_MODE(MODE)

#define	IS_SMBUS_TRANSFER_OPTIONS_REQUEST(REQUEST)

#define	SMBUS_10BIT_ADDRESS(__ADDRESS__) ((uint8_t)((uint16_t)((__ADDRESS__) & (uint16_t)0x00FF)))

#define	SMBUS_10BIT_HEADER_READ(__ADDRESS__) ((uint8_t)((uint16_t)((uint16_t)(((uint16_t)((__ADDRESS__) & (uint16_t)0x0300)) >> 7) \| (uint16_t)(0x00F1))))

#define	SMBUS_10BIT_HEADER_WRITE(__ADDRESS__) ((uint8_t)((uint16_t)((uint16_t)(((uint16_t)((__ADDRESS__) & (uint16_t)0x0300)) >> 7) \| (uint16_t)0x00F0)))

#define	SMBUS_7BIT_ADD_READ(__ADDRESS__) ((uint8_t)((__ADDRESS__) \| I2C_OAR1_ADD0))

#define	SMBUS_7BIT_ADD_WRITE(__ADDRESS__) ((uint8_t)((__ADDRESS__) & (~I2C_OAR1_ADD0)))

#define	SMBUS_ADDRESSINGMODE_10BIT (I2C_OAR1_ADDMODE \| 0x00004000U)

#define	SMBUS_ADDRESSINGMODE_7BIT 0x00004000U

#define	SMBUS_ANALOGFILTER_DISABLE I2C_FLTR_ANOFF

#define	SMBUS_ANALOGFILTER_ENABLE 0x00000000U

#define	SMBUS_DIRECTION_RECEIVE 0x00000000U

#define	SMBUS_DIRECTION_TRANSMIT 0x00000001U

#define	SMBUS_DUALADDRESS_DISABLE 0x00000000U

#define	SMBUS_DUALADDRESS_ENABLE I2C_OAR2_ENDUAL

#define	SMBUS_FIRST_AND_LAST_FRAME_NO_PEC 0x00000003U

#define	SMBUS_FIRST_AND_LAST_FRAME_WITH_PEC 0x00000005U

#define	SMBUS_FIRST_FRAME 0x00000001U

#define	SMBUS_FLAG_ADD10 0x00010008U

#define	SMBUS_FLAG_ADDR 0x00010002U

#define	SMBUS_FLAG_AF 0x00010400U

#define	SMBUS_FLAG_ARLO 0x00010200U

#define	SMBUS_FLAG_BERR 0x00010100U

#define	SMBUS_FLAG_BTF 0x00010004U

#define	SMBUS_FLAG_BUSY 0x00100002U

#define	SMBUS_FLAG_DUALF 0x00100080U

#define	SMBUS_FLAG_GENCALL 0x00100010U

#define	SMBUS_FLAG_MASK 0x0000FFFFU

#define	SMBUS_FLAG_MSL 0x00100001U

#define	SMBUS_FLAG_OVR 0x00010800U

#define	SMBUS_FLAG_PECERR 0x00011000U

#define	SMBUS_FLAG_RXNE 0x00010040U

#define	SMBUS_FLAG_SB 0x00010001U

#define	SMBUS_FLAG_SMBALERT 0x00018000U

#define	SMBUS_FLAG_SMBDEFAULT 0x00100020U

#define	SMBUS_FLAG_SMBHOST 0x00100040U

#define	SMBUS_FLAG_STOPF 0x00010010U

#define	SMBUS_FLAG_TIMEOUT 0x00014000U

#define	SMBUS_FLAG_TRA 0x00100004U

#define	SMBUS_FLAG_TXE 0x00010080U

#define	SMBUS_FREQRANGE(__PCLK__) ((__PCLK__)/1000000U)

#define	SMBUS_GENERALCALL_DISABLE 0x00000000U

#define	SMBUS_GENERALCALL_ENABLE I2C_CR1_ENGC

#define	SMBUS_GET_PEC_MODE(__HANDLE__) ((__HANDLE__)->Instance->CR1 & I2C_CR1_ENPEC)

#define	SMBUS_GET_PEC_VALUE(__HANDLE__) ((__HANDLE__)->XferPEC)

#define	SMBUS_IT_BUF I2C_CR2_ITBUFEN

#define	SMBUS_IT_ERR I2C_CR2_ITERREN

#define	SMBUS_IT_EVT I2C_CR2_ITEVTEN

#define	SMBUS_LAST_FRAME_NO_PEC 0x00000004U

#define	SMBUS_LAST_FRAME_WITH_PEC 0x00000006U

#define	SMBUS_NEXT_FRAME 0x00000002U

#define	SMBUS_NOSTRETCH_DISABLE 0x00000000U

#define	SMBUS_NOSTRETCH_ENABLE I2C_CR1_NOSTRETCH

#define	SMBUS_PEC_DISABLE 0x00000000U

#define	SMBUS_PEC_ENABLE I2C_CR1_ENPEC

#define	SMBUS_PERIPHERAL_MODE_SMBUS_HOST (uint32_t)(I2C_CR1_SMBUS \| I2C_CR1_SMBTYPE \| I2C_CR1_ENARP)

#define	SMBUS_PERIPHERAL_MODE_SMBUS_SLAVE I2C_CR1_SMBUS

#define	SMBUS_PERIPHERAL_MODE_SMBUS_SLAVE_ARP (uint32_t)(I2C_CR1_SMBUS \| I2C_CR1_ENARP)

#define	SMBUS_RISE_TIME(__FREQRANGE__) ( ((__FREQRANGE__) + 1U))

#define	SMBUS_SPEED_STANDARD(__PCLK__, __SPEED__) (((((__PCLK__)/((__SPEED__) << 1U)) & I2C_CCR_CCR) < 4U)? 4U:((__PCLK__) / ((__SPEED__) << 1U)))

Typedefs
typedef struct __SMBUS_HandleTypeDef	SMBUS_HandleTypeDef
	SMBUS handle Structure definition. More...

Enumerations
enum	HAL_SMBUS_ModeTypeDef { HAL_SMBUS_MODE_NONE = 0x00U, HAL_SMBUS_MODE_MASTER = 0x10U, HAL_SMBUS_MODE_SLAVE = 0x20U }
	HAL Mode structure definition. More...

enum	HAL_SMBUS_StateTypeDef { HAL_SMBUS_STATE_RESET = 0x00U, HAL_SMBUS_STATE_READY = 0x20U, HAL_SMBUS_STATE_BUSY = 0x24U, HAL_SMBUS_STATE_BUSY_TX = 0x21U, HAL_SMBUS_STATE_BUSY_RX = 0x22U, HAL_SMBUS_STATE_LISTEN = 0x28U, HAL_SMBUS_STATE_BUSY_TX_LISTEN = 0x29U, HAL_SMBUS_STATE_BUSY_RX_LISTEN = 0x2AU, HAL_SMBUS_STATE_ABORT = 0x60U, HAL_SMBUS_STATE_TIMEOUT = 0xA0U, HAL_SMBUS_STATE_ERROR = 0xE0U }
	HAL State structure definition. More...

Functions
void	HAL_SMBUS_AbortCpltCallback (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_AddrCallback (SMBUS_HandleTypeDef *hsmbus, uint8_t TransferDirection, uint16_t AddrMatchCode)

HAL_StatusTypeDef	HAL_SMBUS_DeInit (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_DisableAlert_IT (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_DisableListen_IT (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_EnableAlert_IT (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_EnableListen_IT (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_ER_IRQHandler (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_ErrorCallback (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_EV_IRQHandler (SMBUS_HandleTypeDef *hsmbus)

uint32_t	HAL_SMBUS_GetError (SMBUS_HandleTypeDef *hsmbus)

HAL_SMBUS_ModeTypeDef	HAL_SMBUS_GetMode (SMBUS_HandleTypeDef *hsmbus)

HAL_SMBUS_StateTypeDef	HAL_SMBUS_GetState (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_Init (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_IsDeviceReady (SMBUS_HandleTypeDef *hsmbus, uint16_t DevAddress, uint32_t Trials, uint32_t Timeout)

void	HAL_SMBUS_ListenCpltCallback (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_Master_Abort_IT (SMBUS_HandleTypeDef *hsmbus, uint16_t DevAddress)

HAL_StatusTypeDef	HAL_SMBUS_Master_Receive_IT (SMBUS_HandleTypeDef hsmbus, uint16_t DevAddress, uint8_t pData, uint16_t Size, uint32_t XferOptions)

HAL_StatusTypeDef	HAL_SMBUS_Master_Transmit_IT (SMBUS_HandleTypeDef hsmbus, uint16_t DevAddress, uint8_t pData, uint16_t Size, uint32_t XferOptions)

void	HAL_SMBUS_MasterRxCpltCallback (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_MasterTxCpltCallback (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_MspDeInit (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_MspInit (SMBUS_HandleTypeDef *hsmbus)

HAL_StatusTypeDef	HAL_SMBUS_Slave_Receive_IT (SMBUS_HandleTypeDef hsmbus, uint8_t pData, uint16_t Size, uint32_t XferOptions)

HAL_StatusTypeDef	HAL_SMBUS_Slave_Transmit_IT (SMBUS_HandleTypeDef hsmbus, uint8_t pData, uint16_t Size, uint32_t XferOptions)

void	HAL_SMBUS_SlaveRxCpltCallback (SMBUS_HandleTypeDef *hsmbus)

void	HAL_SMBUS_SlaveTxCpltCallback (SMBUS_HandleTypeDef *hsmbus)

Detailed Description

Header file of SMBUS HAL module.

Author: MCD Application Team

Attention

This software component is licensed by ST under BSD 3-Clause license, the "License"; You may not use this file except in compliance with the License. You may obtain a copy of the License at: opensource.org/licenses/BSD-3-Clause

Definition in file stm32f4xx_hal_smbus.h.
