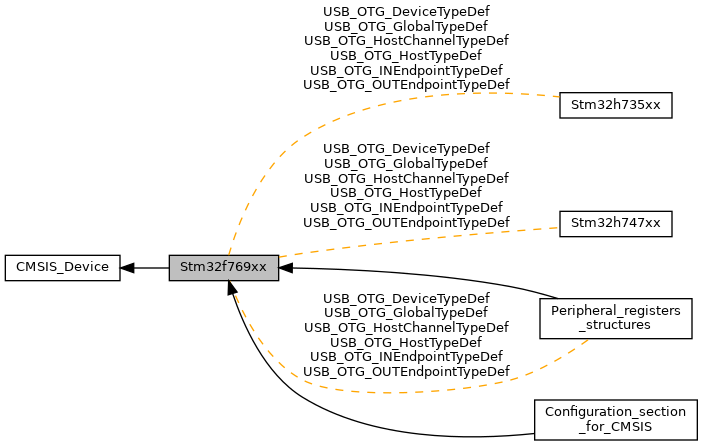

Collaboration diagram for Stm32f769xx:
Modules | |
| Configuration_section_for_CMSIS | |
| Peripheral_registers_structures | |
Classes | |
| struct | USB_OTG_DeviceTypeDef |
| USB_OTG_device_Registers. More... | |
| struct | USB_OTG_GlobalTypeDef |
| USB_OTG_Core_Registers. More... | |
| struct | USB_OTG_HostChannelTypeDef |
| USB_OTG_Host_Channel_Specific_Registers. More... | |
| struct | USB_OTG_HostTypeDef |
| USB_OTG_Host_Mode_Register_Structures. More... | |
| struct | USB_OTG_INEndpointTypeDef |
| USB_OTG_IN_Endpoint-Specific_Register. More... | |
| struct | USB_OTG_OUTEndpointTypeDef |
| USB_OTG_OUT_Endpoint-Specific_Registers. More... | |
Macros | |
| #define | __CM7_REV 0x0100U |
| Configuration of the Cortex-M7 Processor and Core Peripherals. More... | |
| #define | __DCACHE_PRESENT 1 |
| #define | __FPU_PRESENT 1 |
| #define | __ICACHE_PRESENT 1 |
| #define | __MPU_PRESENT 1 |
| #define | __NVIC_PRIO_BITS 4 |
| #define | __Vendor_SysTickConfig 0 |
Detailed Description
Macro Definition Documentation
◆ __CM7_REV
| #define __CM7_REV 0x0100U |
Configuration of the Cortex-M7 Processor and Core Peripherals.
Cortex-M7 revision r1p0
Definition at line 179 of file stm32f769xx.h.
◆ __DCACHE_PRESENT
| #define __DCACHE_PRESENT 1 |
CM7 data cache present
Cortex-M7 processor and core peripherals
Definition at line 185 of file stm32f769xx.h.
◆ __FPU_PRESENT
| #define __FPU_PRESENT 1 |
FPU present
Definition at line 183 of file stm32f769xx.h.
◆ __ICACHE_PRESENT
| #define __ICACHE_PRESENT 1 |
CM7 instruction cache present
Definition at line 184 of file stm32f769xx.h.
◆ __MPU_PRESENT
| #define __MPU_PRESENT 1 |
CM7 provides an MPU
Definition at line 180 of file stm32f769xx.h.
◆ __NVIC_PRIO_BITS
| #define __NVIC_PRIO_BITS 4 |
CM7 uses 4 Bits for the Priority Levels
Definition at line 181 of file stm32f769xx.h.
◆ __Vendor_SysTickConfig
| #define __Vendor_SysTickConfig 0 |
Set to 1 if different SysTick Config is used
Definition at line 182 of file stm32f769xx.h.
