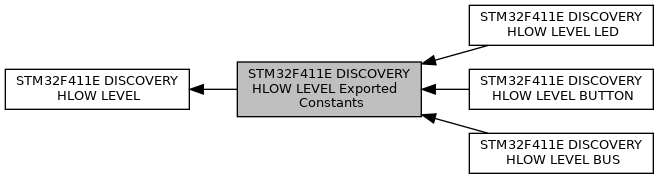

Modules | |
| STM32F411E DISCOVERY HLOW LEVEL LED | |
| STM32F411E DISCOVERY HLOW LEVEL BUTTON | |
| STM32F411E DISCOVERY HLOW LEVEL BUS | |
Macros | |
| #define | ACCELERO_DRDY_EXTI_IRQn TAMP_STAMP_IRQn |
| #define | ACCELERO_DRDY_GPIO_CLK_DISABLE() __HAL_RCC_GPIOE_CLK_DISABLE() |
| #define | ACCELERO_DRDY_GPIO_CLK_ENABLE() __HAL_RCC_GPIOE_CLK_ENABLE() |
| #define | ACCELERO_DRDY_GPIO_PORT GPIOE /* GPIOE */ |
| ACCELERO I2C1 Interface pins. More... | |
| #define | ACCELERO_DRDY_PIN GPIO_PIN_2 /* PE.02 */ |
| #define | ACCELERO_INT1_EXTI_IRQn EXTI4_IRQn |
| #define | ACCELERO_INT1_PIN GPIO_PIN_4 /* PE.04 */ |
| #define | ACCELERO_INT2_EXTI_IRQn EXTI9_5_IRQn |
| #define | ACCELERO_INT2_PIN GPIO_PIN_5 /* PE.05 */ |
| #define | ACCELERO_INT_GPIO_CLK_DISABLE() __HAL_RCC_GPIOE_CLK_DISABLE() |
| #define | ACCELERO_INT_GPIO_CLK_ENABLE() __HAL_RCC_GPIOE_CLK_ENABLE() |
| #define | ACCELERO_INT_GPIO_PORT GPIOE /* GPIOE */ |
| #define | USE_STM32F411E_DISCO |
| Define for STM32F411E_DISCOVERY board More... | |
Detailed Description
Macro Definition Documentation
◆ ACCELERO_DRDY_EXTI_IRQn
| #define ACCELERO_DRDY_EXTI_IRQn TAMP_STAMP_IRQn |
Definition at line 258 of file stm32f411e_discovery.h.
◆ ACCELERO_DRDY_GPIO_CLK_DISABLE
| #define ACCELERO_DRDY_GPIO_CLK_DISABLE | ( | ) | __HAL_RCC_GPIOE_CLK_DISABLE() |
Definition at line 256 of file stm32f411e_discovery.h.
◆ ACCELERO_DRDY_GPIO_CLK_ENABLE
| #define ACCELERO_DRDY_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOE_CLK_ENABLE() |
Definition at line 255 of file stm32f411e_discovery.h.
◆ ACCELERO_DRDY_GPIO_PORT
ACCELERO I2C1 Interface pins.
Definition at line 254 of file stm32f411e_discovery.h.
◆ ACCELERO_DRDY_PIN
| #define ACCELERO_DRDY_PIN GPIO_PIN_2 /* PE.02 */ |
Definition at line 257 of file stm32f411e_discovery.h.
◆ ACCELERO_INT1_EXTI_IRQn
| #define ACCELERO_INT1_EXTI_IRQn EXTI4_IRQn |
Definition at line 264 of file stm32f411e_discovery.h.
◆ ACCELERO_INT1_PIN
| #define ACCELERO_INT1_PIN GPIO_PIN_4 /* PE.04 */ |
Definition at line 263 of file stm32f411e_discovery.h.
◆ ACCELERO_INT2_EXTI_IRQn
| #define ACCELERO_INT2_EXTI_IRQn EXTI9_5_IRQn |
Definition at line 266 of file stm32f411e_discovery.h.
◆ ACCELERO_INT2_PIN
| #define ACCELERO_INT2_PIN GPIO_PIN_5 /* PE.05 */ |
Definition at line 265 of file stm32f411e_discovery.h.
◆ ACCELERO_INT_GPIO_CLK_DISABLE
| #define ACCELERO_INT_GPIO_CLK_DISABLE | ( | ) | __HAL_RCC_GPIOE_CLK_DISABLE() |
Definition at line 262 of file stm32f411e_discovery.h.
◆ ACCELERO_INT_GPIO_CLK_ENABLE
| #define ACCELERO_INT_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOE_CLK_ENABLE() |
Definition at line 261 of file stm32f411e_discovery.h.
◆ ACCELERO_INT_GPIO_PORT
Definition at line 260 of file stm32f411e_discovery.h.
◆ USE_STM32F411E_DISCO
| #define USE_STM32F411E_DISCO |
Define for STM32F411E_DISCOVERY board
Definition at line 93 of file stm32f411e_discovery.h.
