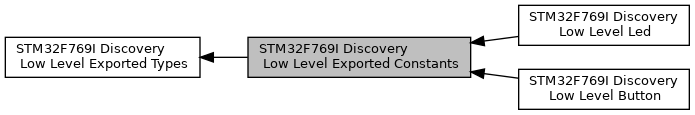

Modules | |
| STM32F769I Discovery Low Level Led | |
| STM32F769I Discovery Low Level Button | |
Detailed Description
Macro Definition Documentation
◆ AUDIO_I2C_ADDRESS
| #define AUDIO_I2C_ADDRESS ((uint16_t)0x34) |
Audio I2C Slave address.
Definition at line 229 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx
| #define DISCOVERY_AUDIO_I2Cx I2C4 |
User can use this section to tailor I2C4/I2C4 instance used and associated resources (audio codec). Definition for I2C4 clock resources.
Definition at line 246 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_CLK_ENABLE
| #define DISCOVERY_AUDIO_I2Cx_CLK_ENABLE | ( | ) | __HAL_RCC_I2C4_CLK_ENABLE() |
Definition at line 247 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_ER_IRQn
| #define DISCOVERY_AUDIO_I2Cx_ER_IRQn I2C4_ER_IRQn |
Definition at line 265 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_EV_IRQn
| #define DISCOVERY_AUDIO_I2Cx_EV_IRQn I2C4_EV_IRQn |
Definition of I2C4 interrupt requests.
Definition at line 264 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_FORCE_RESET
| #define DISCOVERY_AUDIO_I2Cx_FORCE_RESET | ( | ) | __HAL_RCC_I2C4_FORCE_RESET() |
Definition at line 251 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_RELEASE_RESET
| #define DISCOVERY_AUDIO_I2Cx_RELEASE_RESET | ( | ) | __HAL_RCC_I2C4_RELEASE_RESET() |
Definition at line 252 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SCL_AF
| #define DISCOVERY_AUDIO_I2Cx_SCL_AF GPIO_AF4_I2C4 |
Definition at line 257 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SCL_GPIO_CLK_ENABLE
| #define DISCOVERY_AUDIO_I2Cx_SCL_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOD_CLK_ENABLE() |
Definition at line 248 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SCL_GPIO_PORT
| #define DISCOVERY_AUDIO_I2Cx_SCL_GPIO_PORT GPIOD |
Definition at line 258 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SCL_PIN
| #define DISCOVERY_AUDIO_I2Cx_SCL_PIN GPIO_PIN_12 |
◆ DISCOVERY_AUDIO_I2Cx_SDA_AF
| #define DISCOVERY_AUDIO_I2Cx_SDA_AF GPIO_AF11_I2C4 |
Definition at line 260 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SDA_GPIO_CLK_ENABLE
| #define DISCOVERY_AUDIO_I2Cx_SDA_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOB_CLK_ENABLE() |
Definition at line 249 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SDA_GPIO_PORT
| #define DISCOVERY_AUDIO_I2Cx_SDA_GPIO_PORT GPIOB |
Definition at line 261 of file stm32f769i_discovery.h.
◆ DISCOVERY_AUDIO_I2Cx_SDA_PIN
| #define DISCOVERY_AUDIO_I2Cx_SDA_PIN GPIO_PIN_7 |
PB7
Definition at line 259 of file stm32f769i_discovery.h.
◆ DISCOVERY_DMAx_CLK_ENABLE
| #define DISCOVERY_DMAx_CLK_ENABLE | ( | ) | __HAL_RCC_DMA1_CLK_ENABLE() |
Definition at line 274 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx
| #define DISCOVERY_EXT_I2Cx I2C1 |
User can use this section to tailor I2C1/I2C1 instance used and associated resources. Definition for I2C1 clock resources.
Definition at line 272 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_CLK_ENABLE
| #define DISCOVERY_EXT_I2Cx_CLK_ENABLE | ( | ) | __HAL_RCC_I2C1_CLK_ENABLE() |
Definition at line 273 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_ER_IRQn
| #define DISCOVERY_EXT_I2Cx_ER_IRQn I2C1_ER_IRQn |
Definition at line 290 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_EV_IRQn
| #define DISCOVERY_EXT_I2Cx_EV_IRQn I2C1_EV_IRQn |
Definition of I2C interrupt requests.
Definition at line 289 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_FORCE_RESET
| #define DISCOVERY_EXT_I2Cx_FORCE_RESET | ( | ) | __HAL_RCC_I2C1_FORCE_RESET() |
Definition at line 277 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_RELEASE_RESET
| #define DISCOVERY_EXT_I2Cx_RELEASE_RESET | ( | ) | __HAL_RCC_I2C1_RELEASE_RESET() |
Definition at line 278 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_SCL_PIN
| #define DISCOVERY_EXT_I2Cx_SCL_PIN GPIO_PIN_8 |
◆ DISCOVERY_EXT_I2Cx_SCL_SDA_AF
| #define DISCOVERY_EXT_I2Cx_SCL_SDA_AF GPIO_AF4_I2C1 |
Definition at line 284 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_SCL_SDA_GPIO_CLK_ENABLE
| #define DISCOVERY_EXT_I2Cx_SCL_SDA_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOB_CLK_ENABLE() |
Definition at line 275 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_SCL_SDA_GPIO_PORT
| #define DISCOVERY_EXT_I2Cx_SCL_SDA_GPIO_PORT GPIOB |
Definition at line 283 of file stm32f769i_discovery.h.
◆ DISCOVERY_EXT_I2Cx_SDA_PIN
| #define DISCOVERY_EXT_I2Cx_SDA_PIN GPIO_PIN_9 |
PB9
Definition at line 285 of file stm32f769i_discovery.h.
◆ DISCOVERY_I2Cx_TIMING
| #define DISCOVERY_I2Cx_TIMING ((uint32_t)0x40912732) |
Definition at line 297 of file stm32f769i_discovery.h.
◆ EEPROM_I2C_ADDRESS_A01
| #define EEPROM_I2C_ADDRESS_A01 ((uint16_t)0xA0) |
EEPROM I2C Slave address 1.
Definition at line 234 of file stm32f769i_discovery.h.
◆ EEPROM_I2C_ADDRESS_A02
| #define EEPROM_I2C_ADDRESS_A02 ((uint16_t)0xA6) |
EEPROM I2C Slave address 2.
Definition at line 239 of file stm32f769i_discovery.h.
◆ LCD_DSI_ADDRESS
| #define LCD_DSI_ADDRESS TS_I2C_ADDRESS |
LCD DSI Slave I2C address 1.
Definition at line 219 of file stm32f769i_discovery.h.
◆ LCD_DSI_ADDRESS_A02
| #define LCD_DSI_ADDRESS_A02 TS_I2C_ADDRESS_A02 |
LCD DSI Slave I2C address 2.
Definition at line 224 of file stm32f769i_discovery.h.
◆ OTG_HS_OVER_CURRENT_PIN
| #define OTG_HS_OVER_CURRENT_PIN GPIO_PIN_4 |
USB OTG HS Over Current signal.
Definition at line 184 of file stm32f769i_discovery.h.
◆ OTG_HS_OVER_CURRENT_PORT
| #define OTG_HS_OVER_CURRENT_PORT GPIOD |
Definition at line 185 of file stm32f769i_discovery.h.
◆ OTG_HS_OVER_CURRENT_PORT_CLK_ENABLE
| #define OTG_HS_OVER_CURRENT_PORT_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOD_CLK_ENABLE() |
Definition at line 186 of file stm32f769i_discovery.h.
◆ SD_DETECT_EXTI_IRQn
| #define SD_DETECT_EXTI_IRQn EXTI15_10_IRQn |
Definition at line 195 of file stm32f769i_discovery.h.
◆ SD_DETECT_GPIO_CLK_DISABLE
| #define SD_DETECT_GPIO_CLK_DISABLE | ( | ) | __HAL_RCC_GPIOI_CLK_DISABLE() |
Definition at line 194 of file stm32f769i_discovery.h.
◆ SD_DETECT_GPIO_CLK_ENABLE
| #define SD_DETECT_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOI_CLK_ENABLE() |
Definition at line 193 of file stm32f769i_discovery.h.
◆ SD_DETECT_GPIO_PORT
| #define SD_DETECT_GPIO_PORT ((GPIO_TypeDef*)GPIOI) |
Definition at line 192 of file stm32f769i_discovery.h.
◆ SD_DETECT_PIN
| #define SD_DETECT_PIN ((uint32_t)GPIO_PIN_15) |
SD-detect signal.
Definition at line 191 of file stm32f769i_discovery.h.
◆ TS_I2C_ADDRESS
| #define TS_I2C_ADDRESS ((uint16_t)0x54) |
TouchScreen FT6206 Slave I2C address 1.
Definition at line 209 of file stm32f769i_discovery.h.
◆ TS_I2C_ADDRESS_A02
| #define TS_I2C_ADDRESS_A02 ((uint16_t)0x70) |
TouchScreen FT6336G Slave I2C address 2.
Definition at line 214 of file stm32f769i_discovery.h.
◆ TS_INT_EXTI_IRQn
| #define TS_INT_EXTI_IRQn EXTI15_10_IRQn |
Definition at line 204 of file stm32f769i_discovery.h.
◆ TS_INT_GPIO_CLK_DISABLE
| #define TS_INT_GPIO_CLK_DISABLE | ( | ) | __HAL_RCC_GPIOI_CLK_DISABLE() |
Definition at line 203 of file stm32f769i_discovery.h.
◆ TS_INT_GPIO_CLK_ENABLE
| #define TS_INT_GPIO_CLK_ENABLE | ( | ) | __HAL_RCC_GPIOI_CLK_ENABLE() |
Definition at line 202 of file stm32f769i_discovery.h.
◆ TS_INT_GPIO_PORT
| #define TS_INT_GPIO_PORT ((GPIO_TypeDef*)GPIOI) |
Definition at line 201 of file stm32f769i_discovery.h.
◆ TS_INT_PIN
| #define TS_INT_PIN ((uint32_t)GPIO_PIN_13) |
Touch screen interrupt signal.
Definition at line 200 of file stm32f769i_discovery.h.
