#include "libqhull_r/libqhull_r.h"#include <ctype.h>#include <math.h>#include <string.h>#include <stdio.h>#include <stdlib.h>

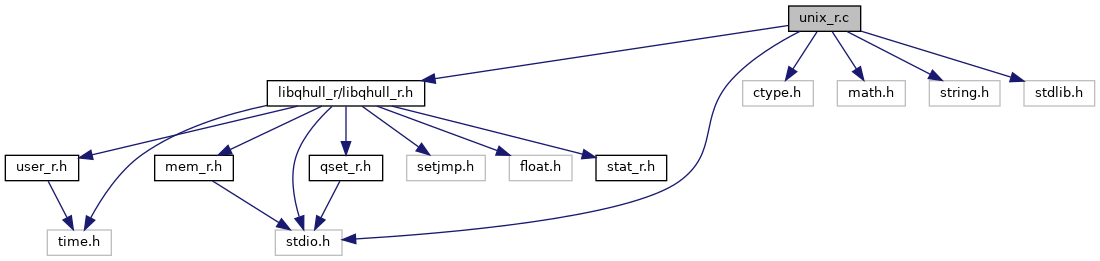

Include dependency graph for unix_r.c:
Go to the source code of this file.
Functions | |
| int | isatty (int) |
| int | main (int argc, char *argv[]) |
Variables | |
| char | qh_prompt2 [] |
| char | qh_prompt3 [] |
| char | qh_prompta [] |
| char | qh_promptb [] |
| char | qh_promptc [] |
| char | qh_promptd [] |
| char | qh_prompte [] |
Function Documentation
◆ isatty()
| int isatty | ( | int | ) |
◆ main()
Variable Documentation
◆ qh_prompt2
◆ qh_prompt3
◆ qh_prompta
◆ qh_promptb
| char qh_promptb[] |
Initial value:
= "\
Qf - partition point to furthest outside facet\n\
Qg - only build good facets (needs 'QGn', 'QVn', or 'PdD')\n\
Qm - only process points that would increase max_outside\n\
Qr - process random outside points instead of furthest ones\n\
Qs - search all points for the initial simplex\n\
Qu - for 'd' or 'v', compute upper hull without point at-infinity\n\
returns furthest-site Delaunay triangulation\n\
Qv - test vertex neighbors for convexity\n\
Qx - exact pre-merges (skips coplanar and angle-coplanar facets)\n\
Qz - add point-at-infinity to Delaunay triangulation\n\
QGn - good facet if visible from point n, -n for not visible\n\
QVn - good facet if it includes point n, -n if not\n\
Q0 - turn off default premerge with 'C-0'/'Qx'\n\
Q1 - sort merges by type instead of angle\n\
Q2 - merge all non-convex at once instead of independent sets\n\
Q3 - do not merge redundant vertices\n\
Q4 - avoid old->new merges\n\
Q5 - do not correct outer planes at end of qhull\n\
Q6 - do not pre-merge concave or coplanar facets\n\
Q7 - depth-first processing instead of breadth-first\n\
Q8 - do not process near-inside points\n\
Q9 - process furthest of furthest points\n\
Q10 - no special processing for narrow distributions\n\
Q11 - copy normals and recompute centrums for tricoplanar facets\n\
Q12 - no error on wide merge due to duplicate ridge\n\
\n\
"
◆ qh_promptc
◆ qh_promptd
◆ qh_prompte
| char qh_prompte[] |
Initial value:
= "\
Geomview options (2-d, 3-d, and 4-d; 2-d Voronoi)\n\
Ga - all points as dots\n\
Gp - coplanar points and vertices as radii\n\
Gv - vertices as spheres\n\
Gi - inner planes only\n\
Gn - no planes\n\
Go - outer planes only\n\
Gc - centrums\n\
Gh - hyperplane intersections\n\
Gr - ridges\n\
GDn - drop dimension n in 3-d and 4-d output\n\
Gt - for 3-d 'd', transparent outer ridges\n\
\n\
Print options:\n\
PAn - keep n largest facets by area\n\
Pdk:n - drop facet if normal[k] <= n (default 0.0)\n\
PDk:n - drop facet if normal[k] >= n\n\
Pg - print good facets (needs 'QGn' or 'QVn')\n\
PFn - keep facets whose area is at least n\n\
PG - print neighbors of good facets\n\
PMn - keep n facets with most merges\n\
Po - force output. If error, output neighborhood of facet\n\
Pp - do not report precision problems\n\
\n\
. - list of all options\n\
- - one line descriptions of all options\n\
-V - version\n\
"
