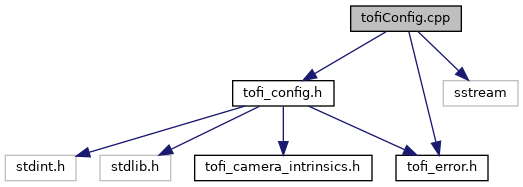

Include dependency graph for tofiConfig.cpp:
Go to the source code of this file.
Functions | |
| void | FreeTofiConfig (TofiConfig *p_tofi_cal_config) |
| uint32_t | GetXYZ_DealiasData (ConfigFileData *ccb_data, TofiXYZDealiasData *p_xyz_data) |
| std::string | iniFileContentFindKeyAndGetValue (std::istream &iniContent, const std::string &key) |
| TofiConfig * | InitTofiConfig (ConfigFileData *p_cal_file_data, ConfigFileData *p_config_file_data, ConfigFileData *p_ini_file_data, uint16_t mode, uint32_t *p_status) |
| Function to Initialize the configuration for TOFI cal config (p_tofi_cal_config) using calibration/config/INI file. More... | |
| TofiConfig * | InitTofiConfig_isp (ConfigFileData *p_ini_file_data, uint16_t mode, uint32_t *p_status, TofiXYZDealiasData *p_xyz_dealias_data) |
| Function to Initialize the configuration for TOFI cal config incase of isp. More... | |
| uint32_t | TofiGetINIParams (void *p_config_params, int params_group, const void *p_tofi_cal_config) |
| uint32_t | TofiSetINIParams (void *p_config_params, int params_group, const void *p_tofi_cal_config) |
Function Documentation
◆ FreeTofiConfig()
| void FreeTofiConfig | ( | TofiConfig * | p_tofi_cal_config | ) |
Function to release memory for configuration structure and Depth/AB/Confidence memory buffers
- Parameters
-
[in,out] TofiConfig *p_tofi_cal_config: pointer to the TOFI calibration configuration parameter structure to be freed
Definition at line 102 of file tofiConfig.cpp.
◆ GetXYZ_DealiasData()
| uint32_t GetXYZ_DealiasData | ( | ConfigFileData * | ccb_data, |
| TofiXYZDealiasData * | p_xyz_data | ||
| ) |
Definition at line 97 of file tofiConfig.cpp.
◆ iniFileContentFindKeyAndGetValue()
| std::string iniFileContentFindKeyAndGetValue | ( | std::istream & | iniContent, |
| const std::string & | key | ||
| ) |
Definition at line 34 of file tofiConfig.cpp.
◆ InitTofiConfig()
| TofiConfig* InitTofiConfig | ( | ConfigFileData * | p_cal_file_data, |
| ConfigFileData * | p_config_file_data, | ||
| ConfigFileData * | p_ini_file_data, | ||
| uint16_t | mode, | ||
| uint32_t * | p_status | ||
| ) |
Function to Initialize the configuration for TOFI cal config (p_tofi_cal_config) using calibration/config/INI file.
- Parameters
-
[in] ConfigFileData *p_cal_file_data: Pointer to cal data [in] ConfigFileData *p_config_file_data: pointer to json config data, it is initialized to default if NULL [in] ConfigFileData *p_ini_file_data: pointer to ini data, it is initialized to default if NULL [in] mode - uint16_t - mode of camera operation [out] uint32_t p_status: pointer to status, assigned as ADI_TOFI_SUCCESS on success, assigned as error code incase of failure
- Returns
- [out] TofiConfig *: returns p_tofi_config pointer on success, returns NULL on failure
Definition at line 9 of file tofiConfig.cpp.
◆ InitTofiConfig_isp()
| TofiConfig* InitTofiConfig_isp | ( | ConfigFileData * | p_ini_file_data, |
| uint16_t | mode, | ||
| uint32_t * | p_status, | ||
| TofiXYZDealiasData * | p_xyz_dealias_data | ||
| ) |
Function to Initialize the configuration for TOFI cal config incase of isp.
- Parameters
-
[in] ConfigFileData *p_cal_file_data: Pointer to cal data [in] ConfigFileData *p_ini_file_data: pointer to ini data, it is initialized to default if NULL [in] mode - uint16_t - mode of camera operation [in] TofiXYZDealiasData *p_xyz_dealias_data : pointer to XYZ and dealias data [out] uint32_t p_status: pointer to status, assigned as ADI_TOFI_SUCCESS on success, assigned as error code incase of failure
- Returns
- [out] TofiConfig *: returns p_tofi_config pointer on success, returns NULL on failure
Definition at line 52 of file tofiConfig.cpp.
◆ TofiGetINIParams()
| uint32_t TofiGetINIParams | ( | void * | p_config_params, |
| int | params_group, | ||
| const void * | p_tofi_cal_config | ||
| ) |
Definition at line 117 of file tofiConfig.cpp.
◆ TofiSetINIParams()
| uint32_t TofiSetINIParams | ( | void * | p_config_params, |
| int | params_group, | ||
| const void * | p_tofi_cal_config | ||
| ) |
Definition at line 113 of file tofiConfig.cpp.
