Public Member Functions | Public Attributes | Private Attributes | Static Private Attributes | List of all members
google.protobuf.descriptor.Descriptor Class Reference

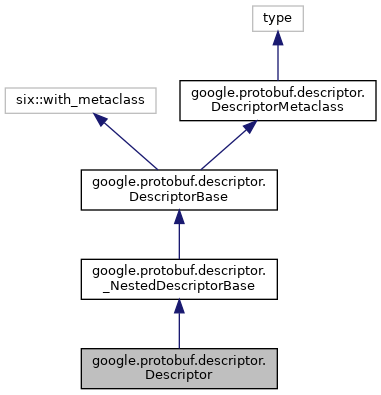

Inheritance diagram for google.protobuf.descriptor.Descriptor:
Inheritance graph
[legend]

Public Member Functions

def __init__ (self, name, full_name, filename, containing_type, fields, nested_types, enum_types, extensions, options=None, serialized_options=None, is_extendable=True, extension_ranges=None, oneofs=None, file=None, serialized_start=None, serialized_end=None, syntax=None)

def __new__ (cls, name, full_name, filename, containing_type, fields, nested_types, enum_types, extensions, options=None, serialized_options=None, is_extendable=True, extension_ranges=None, oneofs=None, file=None, serialized_start=None, serialized_end=None, syntax=None)

def CopyToProto (self, proto)

def EnumValueName (self, enum, value)

def fields_by_camelcase_name (self)

- Public Member Functions inherited from google.protobuf.descriptor._NestedDescriptorBase
def __init__ (self, options, options_class_name, name, full_name, file, containing_type, serialized_start=None, serialized_end=None, serialized_options=None)

- Public Member Functions inherited from google.protobuf.descriptor.DescriptorBase
def __init__ (self, options, serialized_options, options_class_name)

def GetOptions (self)

- Public Member Functions inherited from google.protobuf.descriptor.DescriptorMetaclass
def __instancecheck__ (cls, obj)


Public Attributes

 enum_types

 enum_types_by_name

 enum_values_by_name

 extension_ranges

 extensions

 extensions_by_name

 fields

 fields_by_name

 fields_by_number

 is_extendable

 nested_types

 nested_types_by_name

 oneofs

 oneofs_by_name

 syntax

- Public Attributes inherited from google.protobuf.descriptor._NestedDescriptorBase
 containing_type

 file

 full_name

 name

- Public Attributes inherited from google.protobuf.descriptor.DescriptorBase
 has_options


Private Attributes

 _fields_by_camelcase_name


Static Private Attributes

 _C_DESCRIPTOR_CLASS = _message.Descriptor


Detailed Description

Descriptor for a protocol message type.

A Descriptor instance has the following attributes:

  name: (str) Name of this protocol message type.
  full_name: (str) Fully-qualified name of this protocol message type,
    which will include protocol "package" name and the name of any
    enclosing types.

  containing_type: (Descriptor) Reference to the descriptor of the
    type containing us, or None if this is top-level.

  fields: (list of FieldDescriptors) Field descriptors for all
    fields in this type.
  fields_by_number: (dict int -> FieldDescriptor) Same FieldDescriptor
    objects as in |fields|, but indexed by "number" attribute in each
    FieldDescriptor.
  fields_by_name: (dict str -> FieldDescriptor) Same FieldDescriptor
    objects as in |fields|, but indexed by "name" attribute in each
    FieldDescriptor.
  fields_by_camelcase_name: (dict str -> FieldDescriptor) Same
    FieldDescriptor objects as in |fields|, but indexed by
    "camelcase_name" attribute in each FieldDescriptor.

  nested_types: (list of Descriptors) Descriptor references
    for all protocol message types nested within this one.
  nested_types_by_name: (dict str -> Descriptor) Same Descriptor
    objects as in |nested_types|, but indexed by "name" attribute
    in each Descriptor.

  enum_types: (list of EnumDescriptors) EnumDescriptor references
    for all enums contained within this type.
  enum_types_by_name: (dict str ->EnumDescriptor) Same EnumDescriptor
    objects as in |enum_types|, but indexed by "name" attribute
    in each EnumDescriptor.
  enum_values_by_name: (dict str -> EnumValueDescriptor) Dict mapping
    from enum value name to EnumValueDescriptor for that value.

  extensions: (list of FieldDescriptor) All extensions defined directly
    within this message type (NOT within a nested type).
  extensions_by_name: (dict, string -> FieldDescriptor) Same FieldDescriptor
    objects as |extensions|, but indexed by "name" attribute of each
    FieldDescriptor.

  is_extendable:  Does this type define any extension ranges?

  oneofs: (list of OneofDescriptor) The list of descriptors for oneof fields
    in this message.
  oneofs_by_name: (dict str -> OneofDescriptor) Same objects as in |oneofs|,
    but indexed by "name" attribute.

  file: (FileDescriptor) Reference to file descriptor.

Definition at line 222 of file descriptor.py.

Constructor & Destructor Documentation

◆ __init__()

def google.protobuf.descriptor.Descriptor.__init__ (   self,
  name,
  full_name,
  filename,
  containing_type,
  fields,
  nested_types,
  enum_types,
  extensions,
  options = None,
  serialized_options = None,
  is_extendable = True,
  extension_ranges = None,
  oneofs = None,
  file = None,
  serialized_start = None,
  serialized_end = None,
  syntax = None
)
Arguments to __init__() are as described in the description
of Descriptor fields above.

Note that filename is an obsolete argument, that is not used anymore.
Please use file.name to access this as an attribute.

Definition at line 293 of file descriptor.py.

Member Function Documentation

◆ __new__()

def google.protobuf.descriptor.Descriptor.__new__ (   cls,
  name,
  full_name,
  filename,
  containing_type,
  fields,
  nested_types,
  enum_types,
  extensions,
  options = None,
  serialized_options = None,
  is_extendable = True,
  extension_ranges = None,
  oneofs = None,
  file = None,
  serialized_start = None,
  serialized_end = None,
  syntax = None
)

Definition at line 281 of file descriptor.py.

◆ CopyToProto()

def google.protobuf.descriptor.Descriptor.CopyToProto (   self,
  proto
)
Copies this to a descriptor_pb2.DescriptorProto.

Args:
  proto: An empty descriptor_pb2.DescriptorProto.

Reimplemented from google.protobuf.descriptor._NestedDescriptorBase.

Definition at line 371 of file descriptor.py.

◆ EnumValueName()

def google.protobuf.descriptor.Descriptor.EnumValueName (   self,
  enum,
  value
)
Returns the string name of an enum value.

This is just a small helper method to simplify a common operation.

Args:
  enum: string name of the Enum.
  value: int, value of the enum.

Returns:
  string name of the enum value.

Raises:
  KeyError if either the Enum doesn't exist or the value is not a valid
value for the enum.

Definition at line 353 of file descriptor.py.

◆ fields_by_camelcase_name()

def google.protobuf.descriptor.Descriptor.fields_by_camelcase_name (   self)

Definition at line 347 of file descriptor.py.

Member Data Documentation

◆ _C_DESCRIPTOR_CLASS

google.protobuf.descriptor.Descriptor._C_DESCRIPTOR_CLASS = _message.Descriptor
staticprivate

Definition at line 279 of file descriptor.py.

◆ _fields_by_camelcase_name

google.protobuf.descriptor.Descriptor._fields_by_camelcase_name
private

Definition at line 315 of file descriptor.py.

◆ enum_types

google.protobuf.descriptor.Descriptor.enum_types

Definition at line 322 of file descriptor.py.

◆ enum_types_by_name

google.protobuf.descriptor.Descriptor.enum_types_by_name

Definition at line 325 of file descriptor.py.

◆ enum_values_by_name

google.protobuf.descriptor.Descriptor.enum_values_by_name

Definition at line 326 of file descriptor.py.

◆ extension_ranges

google.protobuf.descriptor.Descriptor.extension_ranges

Definition at line 334 of file descriptor.py.

◆ extensions

google.protobuf.descriptor.Descriptor.extensions

Definition at line 329 of file descriptor.py.

◆ extensions_by_name

google.protobuf.descriptor.Descriptor.extensions_by_name

Definition at line 332 of file descriptor.py.

◆ fields

google.protobuf.descriptor.Descriptor.fields

Definition at line 310 of file descriptor.py.

◆ fields_by_name

google.protobuf.descriptor.Descriptor.fields_by_name

Definition at line 314 of file descriptor.py.

◆ fields_by_number

google.protobuf.descriptor.Descriptor.fields_by_number

Definition at line 313 of file descriptor.py.

◆ is_extendable

google.protobuf.descriptor.Descriptor.is_extendable

Definition at line 333 of file descriptor.py.

◆ nested_types

google.protobuf.descriptor.Descriptor.nested_types

Definition at line 317 of file descriptor.py.

◆ nested_types_by_name

google.protobuf.descriptor.Descriptor.nested_types_by_name

Definition at line 320 of file descriptor.py.

◆ oneofs

google.protobuf.descriptor.Descriptor.oneofs

Definition at line 335 of file descriptor.py.

◆ oneofs_by_name

google.protobuf.descriptor.Descriptor.oneofs_by_name

Definition at line 336 of file descriptor.py.

◆ syntax

google.protobuf.descriptor.Descriptor.syntax

Definition at line 339 of file descriptor.py.

The documentation for this class was generated from the following file:
