#include <QhullPoint.h>

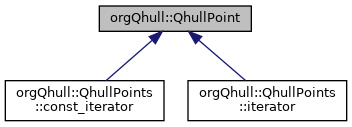

Inheritance diagram for orgQhull::QhullPoint:

Classes
struct	PrintPoint

Public Member Functions
Constructors
	QhullPoint ()

	QhullPoint (int pointDimension, coordT *c)

	QhullPoint (const Qhull &q)

	QhullPoint (const Qhull &q, coordT *c)

	QhullPoint (const Qhull &q, Coordinates &c)
	QhullPoint of Coordinates with point_dimension==c.count() More...

	QhullPoint (const Qhull &q, int pointDimension, coordT *c)

	QhullPoint (QhullQh *qqh)

	QhullPoint (QhullQh qqh, coordT c)

	QhullPoint (QhullQh *qqh, Coordinates &c)

	QhullPoint (QhullQh qqh, int pointDimension, coordT c)

	QhullPoint (const QhullPoint &other)
	Creates an alias. Does not make a deep copy of the point. Needed for return by value and parameter passing. More...

QhullPoint &	operator= (const QhullPoint &other)
	Creates an alias. Does not make a deep copy of the point. Needed for vector<QhullPoint> More...

	~QhullPoint ()

Conversions
std::vector< coordT >	toStdVector () const

GetSet
void	defineAs (coordT *c)

void	defineAs (int pointDimension, coordT *c)

void	defineAs (QhullPoint &other)

int	dimension () const

coordT *	getBaseT () const

countT	id () const

bool	isValid () const

bool	operator== (const QhullPoint &other) const

bool	operator!= (const QhullPoint &other) const

QhullQh *	qh ()

void	setCoordinates (coordT *c)

void	setDimension (int pointDimension)

foreach
iterator	begin ()

const_iterator	begin () const

const_iterator	constBegin () const

const_iterator	constEnd () const

int	count ()

iterator	end ()

const_iterator	end () const

size_t	size ()

Methods
void	advancePoint (countT idx)

double	distance (const QhullPoint &p) const
	Return distance between two points. More...

IO
PrintPoint	print (const char *message) const

PrintPoint	printWithIdentifier (const char *message) const

Protected Attributes
Fields
coordT *	point_coordinates
	Pointer to first coordinate, 0 if undefined. More...

QhullQh *	qh_qh

int	point_dimension
	Default dimension is qh_qh->hull_dim. More...

Iterators
typedef coordT *	base_type

typedef QhullPoint::iterator	Iterator

typedef QhullPoint::const_iterator	ConstIterator

const typedef coordT *	iterator

const typedef coordT *	const_iterator

Detailed Description

A QhullPoint is a dimension and an array of coordinates. With Qhull/QhullQh, a QhullPoint has an identifier. Point equality is relative to qh.distanceEpsilon

Definition at line 39 of file QhullPoint.h.

Member Typedef Documentation

◆ base_type

typedef coordT* orgQhull::QhullPoint::base_type

Definition at line 43 of file QhullPoint.h.

◆ ConstIterator

typedef QhullPoint::const_iterator orgQhull::QhullPoint::ConstIterator

Definition at line 47 of file QhullPoint.h.

◆ Iterator

typedef QhullPoint::iterator orgQhull::QhullPoint::Iterator

Definition at line 46 of file QhullPoint.h.

Constructor & Destructor Documentation

◆ QhullPoint() [1/11]

orgQhull::QhullPoint::QhullPoint ( )

inline

QhullPoint, PointCoordinates, and QhullPoints have similar constructors If Qhull/QhullQh is not initialized, then QhullPoint.dimension() is zero unless explicitly set Cannot define QhullPoints(int pointDimension) since it is ambiguous with QhullPoints(QhullQh *qqh)

Definition at line 62 of file QhullPoint.h.

◆ QhullPoint() [2/11]

orgQhull::QhullPoint::QhullPoint	(	int	pointDimension,
		coordT *	c
	)

inline

Definition at line 63 of file QhullPoint.h.

◆ QhullPoint() [3/11]

orgQhull::QhullPoint::QhullPoint ( const Qhull & q )

explicit

Definition at line 32 of file QhullPoint.cpp.

◆ QhullPoint() [4/11]

orgQhull::QhullPoint::QhullPoint	(	const Qhull &	q,
		coordT *	c
	)

Definition at line 40 of file QhullPoint.cpp.

◆ QhullPoint() [5/11]

orgQhull::QhullPoint::QhullPoint	(	const Qhull &	q,
		Coordinates &	c
	)

QhullPoint of Coordinates with point_dimension==c.count()

Definition at line 58 of file QhullPoint.cpp.

◆ QhullPoint() [6/11]

orgQhull::QhullPoint::QhullPoint	(	const Qhull &	q,
		int	pointDimension,
		coordT *	c
	)

Definition at line 49 of file QhullPoint.cpp.

◆ QhullPoint() [7/11]

orgQhull::QhullPoint::QhullPoint ( QhullQh * qqh )

inlineexplicit

Definition at line 68 of file QhullPoint.h.

◆ QhullPoint() [8/11]

orgQhull::QhullPoint::QhullPoint	(	QhullQh *	qqh,
		coordT *	c
	)

inline

Definition at line 69 of file QhullPoint.h.

◆ QhullPoint() [9/11]

orgQhull::QhullPoint::QhullPoint	(	QhullQh *	qqh,
		Coordinates &	c
	)

inline

Definition at line 70 of file QhullPoint.h.

◆ QhullPoint() [10/11]

orgQhull::QhullPoint::QhullPoint	(	QhullQh *	qqh,
		int	pointDimension,
		coordT *	c
	)

inline

Definition at line 71 of file QhullPoint.h.

◆ QhullPoint() [11/11]

orgQhull::QhullPoint::QhullPoint ( const QhullPoint & other )

inline

Creates an alias. Does not make a deep copy of the point. Needed for return by value and parameter passing.

Definition at line 73 of file QhullPoint.h.

◆ ~QhullPoint()

orgQhull::QhullPoint::~QhullPoint ( )

inline

Definition at line 76 of file QhullPoint.h.

Member Function Documentation

◆ advancePoint()

void orgQhull::QhullPoint::advancePoint ( countT idx )

inline

Definition at line 118 of file QhullPoint.h.

◆ begin() [1/2]

iterator orgQhull::QhullPoint::begin ( )

inline

Definition at line 108 of file QhullPoint.h.

◆ begin() [2/2]

const_iterator orgQhull::QhullPoint::begin ( ) const

inline

Definition at line 109 of file QhullPoint.h.

◆ constBegin()

const_iterator orgQhull::QhullPoint::constBegin ( ) const

inline

Definition at line 110 of file QhullPoint.h.

◆ constEnd()

const_iterator orgQhull::QhullPoint::constEnd ( ) const

inline

Definition at line 111 of file QhullPoint.h.

◆ count()

int orgQhull::QhullPoint::count ( )

inline

Definition at line 112 of file QhullPoint.h.

◆ defineAs() [1/3]

void orgQhull::QhullPoint::defineAs ( coordT * c )

inline

Definition at line 92 of file QhullPoint.h.

◆ defineAs() [2/3]

void orgQhull::QhullPoint::defineAs	(	int	pointDimension,
		coordT *	c
	)

inline

Definition at line 93 of file QhullPoint.h.

◆ defineAs() [3/3]

void orgQhull::QhullPoint::defineAs ( QhullPoint & other )

inline

Definition at line 94 of file QhullPoint.h.

◆ dimension()

int orgQhull::QhullPoint::dimension ( ) const

inline

Definition at line 95 of file QhullPoint.h.

◆ distance()

double orgQhull::QhullPoint::distance ( const QhullPoint & p ) const

Return distance between two points.

Definition at line 123 of file QhullPoint.cpp.

◆ end() [1/2]

iterator orgQhull::QhullPoint::end ( )

inline

Definition at line 113 of file QhullPoint.h.

◆ end() [2/2]

const_iterator orgQhull::QhullPoint::end ( ) const

inline

Definition at line 114 of file QhullPoint.h.

◆ getBaseT()

coordT* orgQhull::QhullPoint::getBaseT ( ) const

inline

Definition at line 96 of file QhullPoint.h.

◆ id()

countT orgQhull::QhullPoint::id ( ) const

inline

Definition at line 97 of file QhullPoint.h.

◆ isValid()

bool orgQhull::QhullPoint::isValid ( ) const

inline

Definition at line 98 of file QhullPoint.h.

◆ operator!=()

bool orgQhull::QhullPoint::operator!= ( const QhullPoint & other ) const

inline

Definition at line 100 of file QhullPoint.h.

◆ operator=()

QhullPoint& orgQhull::QhullPoint::operator= ( const QhullPoint & other )

inline

Creates an alias. Does not make a deep copy of the point. Needed for vector<QhullPoint>

Definition at line 75 of file QhullPoint.h.

◆ operator==()

bool orgQhull::QhullPoint::operator== ( const QhullPoint & other ) const

QhullPoint is equal if it has the same address and dimension If !qh_qh, returns true if dimension and coordinates are equal If qh_qh, returns true if the distance between points is less than qh_qh->distanceEpsilon()

Todo:: Compares distance with distance-to-hyperplane (distanceEpsilon). Is that correct?

Definition at line 89 of file QhullPoint.cpp.

◆ print()

PrintPoint orgQhull::QhullPoint::print ( const char * message ) const

inline

Definition at line 129 of file QhullPoint.h.

◆ printWithIdentifier()

PrintPoint orgQhull::QhullPoint::printWithIdentifier ( const char * message ) const

inline

Definition at line 130 of file QhullPoint.h.

◆ qh()

QhullQh* orgQhull::QhullPoint::qh ( )

inline

Definition at line 103 of file QhullPoint.h.

◆ setCoordinates()

void orgQhull::QhullPoint::setCoordinates ( coordT * c )

inline

Definition at line 104 of file QhullPoint.h.

◆ setDimension()

void orgQhull::QhullPoint::setDimension ( int pointDimension )

inline

Definition at line 105 of file QhullPoint.h.

◆ size()

size_t orgQhull::QhullPoint::size ( )

inline

Definition at line 115 of file QhullPoint.h.

◆ toStdVector()

std::vector< coordT > orgQhull::QhullPoint::toStdVector ( ) const

Definition at line 71 of file QhullPoint.cpp.

Member Data Documentation

◆ const_iterator

const typedef coordT* orgQhull::QhullPoint::const_iterator

Definition at line 45 of file QhullPoint.h.

◆ iterator

const typedef coordT* orgQhull::QhullPoint::iterator

Definition at line 44 of file QhullPoint.h.

◆ point_coordinates

coordT* orgQhull::QhullPoint::point_coordinates

protected

Pointer to first coordinate, 0 if undefined.

Definition at line 51 of file QhullPoint.h.

◆ point_dimension

int orgQhull::QhullPoint::point_dimension

protected

Default dimension is qh_qh->hull_dim.

Definition at line 55 of file QhullPoint.h.

◆ qh_qh

QhullQh* orgQhull::QhullPoint::qh_qh

protected

qhT for this instance of Qhull. 0 if undefined. operator==() returns true if points within sqrt(qh_qh->distanceEpsilon()) If !qh_qh, id() is -3, and operator==() requires equal coordinates

Definition at line 52 of file QhullPoint.h.
