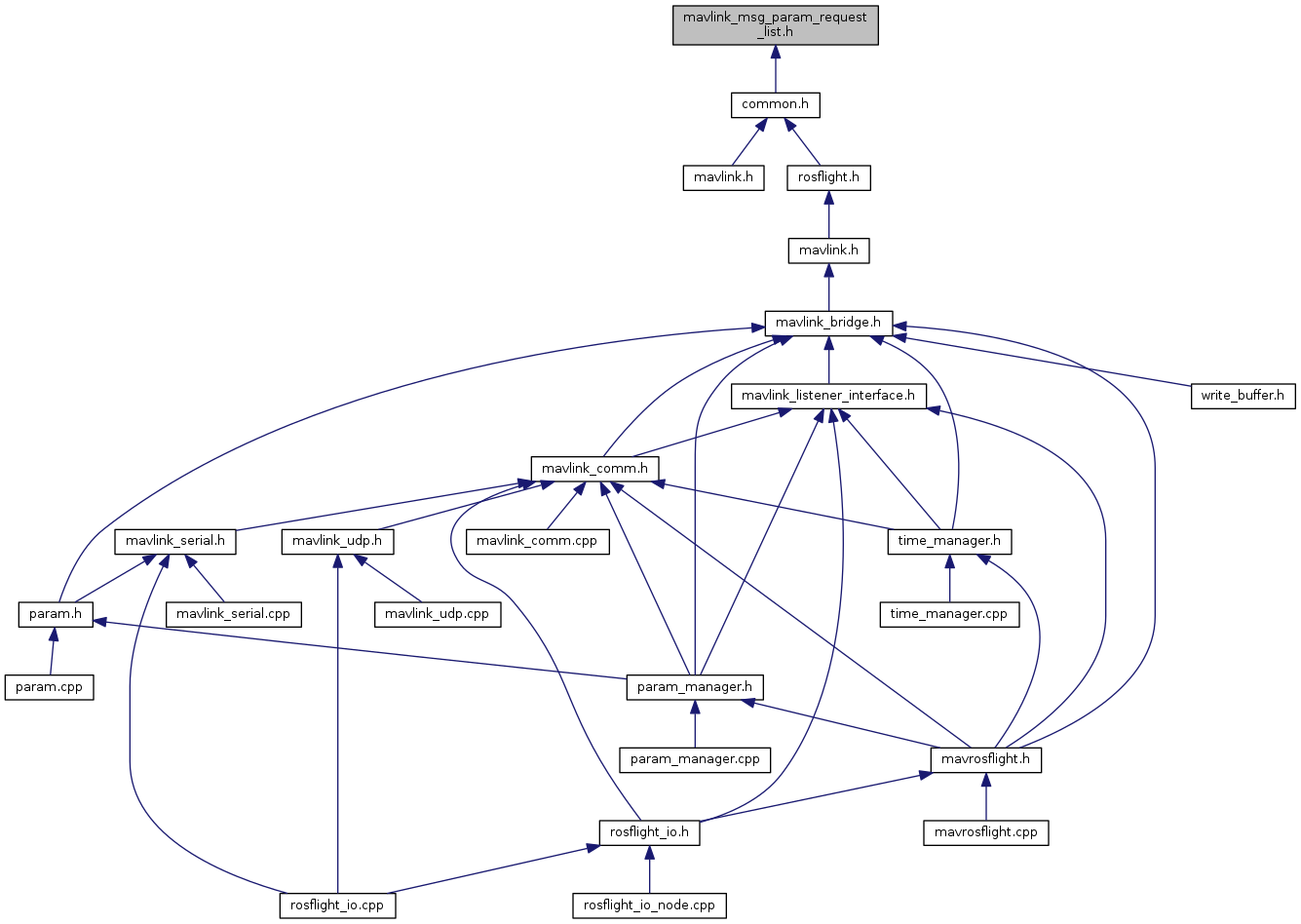

This graph shows which files directly or indirectly include this file:

Classes
struct	__mavlink_param_request_list_t

Macros
#define	MAVLINK_MESSAGE_INFO_PARAM_REQUEST_LIST

#define	MAVLINK_MSG_ID_21_CRC 159

#define	MAVLINK_MSG_ID_21_LEN 2

#define	MAVLINK_MSG_ID_PARAM_REQUEST_LIST 21

#define	MAVLINK_MSG_ID_PARAM_REQUEST_LIST_CRC 159

#define	MAVLINK_MSG_ID_PARAM_REQUEST_LIST_LEN 2

Typedefs
typedef struct __mavlink_param_request_list_t	mavlink_param_request_list_t

Functions
static void	mavlink_msg_param_request_list_decode (const mavlink_message_t msg, mavlink_param_request_list_t param_request_list)
	Decode a param_request_list message into a struct. More...

static uint16_t	mavlink_msg_param_request_list_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t msg, const mavlink_param_request_list_t param_request_list)
	Encode a param_request_list struct. More...

static uint16_t	mavlink_msg_param_request_list_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t msg, const mavlink_param_request_list_t param_request_list)
	Encode a param_request_list struct on a channel. More...

static uint8_t	mavlink_msg_param_request_list_get_target_component (const mavlink_message_t *msg)
	Get field target_component from param_request_list message. More...

static uint8_t	mavlink_msg_param_request_list_get_target_system (const mavlink_message_t *msg)
	Send a param_request_list message. More...

static uint16_t	mavlink_msg_param_request_list_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component)
	Pack a param_request_list message. More...

static uint16_t	mavlink_msg_param_request_list_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint8_t target_system, uint8_t target_component)
	Pack a param_request_list message on a channel. More...

Macro Definition Documentation

#define MAVLINK_MESSAGE_INFO_PARAM_REQUEST_LIST

Value:

{ \
        "PARAM_REQUEST_LIST", \
        2, \
        {  { "target_system", NULL, MAVLINK_TYPE_UINT8_T, 0, 0, offsetof(mavlink_param_request_list_t, target_system) }, \
         { "target_component", NULL, MAVLINK_TYPE_UINT8_T, 0, 1, offsetof(mavlink_param_request_list_t, target_component) }, \
         } \
}

Definition at line 19 of file mavlink_msg_param_request_list.h.

#define MAVLINK_MSG_ID_21_CRC 159

Definition at line 15 of file mavlink_msg_param_request_list.h.

#define MAVLINK_MSG_ID_21_LEN 2

Definition at line 12 of file mavlink_msg_param_request_list.h.

#define MAVLINK_MSG_ID_PARAM_REQUEST_LIST 21

Definition at line 3 of file mavlink_msg_param_request_list.h.

#define MAVLINK_MSG_ID_PARAM_REQUEST_LIST_CRC 159

Definition at line 14 of file mavlink_msg_param_request_list.h.

#define MAVLINK_MSG_ID_PARAM_REQUEST_LIST_LEN 2

Definition at line 11 of file mavlink_msg_param_request_list.h.

Typedef Documentation

typedef struct __mavlink_param_request_list_t mavlink_param_request_list_t

Function Documentation

static void mavlink_msg_param_request_list_decode	(	const mavlink_message_t *	msg,
		mavlink_param_request_list_t *	param_request_list
	)

inlinestatic

Decode a param_request_list message into a struct.

Parameters

msg	The message to decode
param_request_list	C-struct to decode the message contents into

Definition at line 225 of file mavlink_msg_param_request_list.h.

static uint16_t mavlink_msg_param_request_list_encode	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		const mavlink_param_request_list_t *	param_request_list
	)

inlinestatic

Encode a param_request_list struct.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
param_request_list	C-struct to read the message contents from

Definition at line 107 of file mavlink_msg_param_request_list.h.

static uint16_t mavlink_msg_param_request_list_encode_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		const mavlink_param_request_list_t *	param_request_list
	)

inlinestatic

Encode a param_request_list struct on a channel.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
param_request_list	C-struct to read the message contents from

Definition at line 121 of file mavlink_msg_param_request_list.h.

static uint8_t mavlink_msg_param_request_list_get_target_component ( const mavlink_message_t * msg )

inlinestatic

Get field target_component from param_request_list message.

Returns: Component ID

Definition at line 214 of file mavlink_msg_param_request_list.h.

static uint8_t mavlink_msg_param_request_list_get_target_system ( const mavlink_message_t * msg )

inlinestatic

Send a param_request_list message.

Parameters

chan	MAVLink channel to send the message
target_system	System ID
target_component	Component ID Get field target_system from param_request_list message

Returns: System ID

Definition at line 204 of file mavlink_msg_param_request_list.h.

static uint16_t mavlink_msg_param_request_list_pack	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		uint8_t	target_system,
		uint8_t	target_component
	)

inlinestatic

Pack a param_request_list message.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
target_system	System ID
target_component	Component ID

Returns: length of the message in bytes (excluding serial stream start sign)

Definition at line 38 of file mavlink_msg_param_request_list.h.

static uint16_t mavlink_msg_param_request_list_pack_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		uint8_t	target_system,
		uint8_t	target_component
	)

inlinestatic

Pack a param_request_list message on a channel.

Parameters

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
target_system	System ID
target_component	Component ID

Returns: length of the message in bytes (excluding serial stream start sign)

Definition at line 73 of file mavlink_msg_param_request_list.h.
