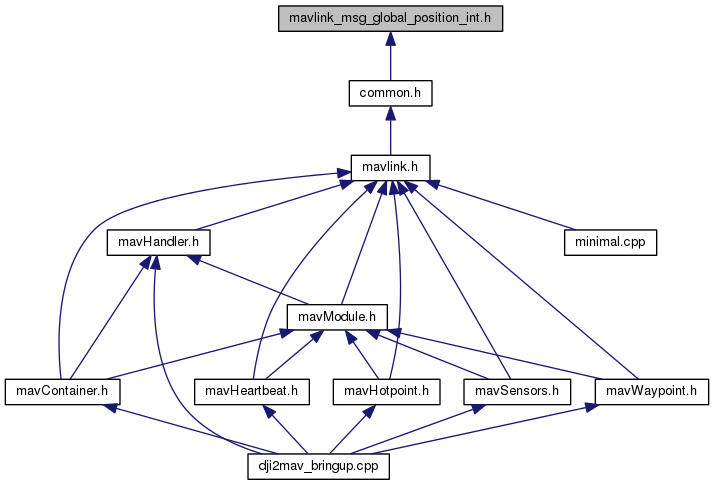

This graph shows which files directly or indirectly include this file:

Classes
struct	__mavlink_global_position_int_t
Defines
#define	MAVLINK_MESSAGE_INFO_GLOBAL_POSITION_INT
#define	MAVLINK_MSG_ID_33_CRC 104
#define	MAVLINK_MSG_ID_33_LEN 28
#define	MAVLINK_MSG_ID_GLOBAL_POSITION_INT 33
#define	MAVLINK_MSG_ID_GLOBAL_POSITION_INT_CRC 104
#define	MAVLINK_MSG_ID_GLOBAL_POSITION_INT_LEN 28
Typedefs
typedef struct __mavlink_global_position_int_t	mavlink_global_position_int_t
Functions
static void	mavlink_msg_global_position_int_decode (const mavlink_message_t msg, mavlink_global_position_int_t global_position_int)
	Decode a global_position_int message into a struct.
static uint16_t	mavlink_msg_global_position_int_encode (uint8_t system_id, uint8_t component_id, mavlink_message_t msg, const mavlink_global_position_int_t global_position_int)
	Encode a global_position_int struct.
static uint16_t	mavlink_msg_global_position_int_encode_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t msg, const mavlink_global_position_int_t global_position_int)
	Encode a global_position_int struct on a channel.
static int32_t	mavlink_msg_global_position_int_get_alt (const mavlink_message_t *msg)
	Get field alt from global_position_int message.
static uint16_t	mavlink_msg_global_position_int_get_hdg (const mavlink_message_t *msg)
	Get field hdg from global_position_int message.
static int32_t	mavlink_msg_global_position_int_get_lat (const mavlink_message_t *msg)
	Get field lat from global_position_int message.
static int32_t	mavlink_msg_global_position_int_get_lon (const mavlink_message_t *msg)
	Get field lon from global_position_int message.
static int32_t	mavlink_msg_global_position_int_get_relative_alt (const mavlink_message_t *msg)
	Get field relative_alt from global_position_int message.
static uint32_t	mavlink_msg_global_position_int_get_time_boot_ms (const mavlink_message_t *msg)
	Send a global_position_int message.
static int16_t	mavlink_msg_global_position_int_get_vx (const mavlink_message_t *msg)
	Get field vx from global_position_int message.
static int16_t	mavlink_msg_global_position_int_get_vy (const mavlink_message_t *msg)
	Get field vy from global_position_int message.
static int16_t	mavlink_msg_global_position_int_get_vz (const mavlink_message_t *msg)
	Get field vz from global_position_int message.
static uint16_t	mavlink_msg_global_position_int_pack (uint8_t system_id, uint8_t component_id, mavlink_message_t *msg, uint32_t time_boot_ms, int32_t lat, int32_t lon, int32_t alt, int32_t relative_alt, int16_t vx, int16_t vy, int16_t vz, uint16_t hdg)
	Pack a global_position_int message.
static uint16_t	mavlink_msg_global_position_int_pack_chan (uint8_t system_id, uint8_t component_id, uint8_t chan, mavlink_message_t *msg, uint32_t time_boot_ms, int32_t lat, int32_t lon, int32_t alt, int32_t relative_alt, int16_t vx, int16_t vy, int16_t vz, uint16_t hdg)
	Pack a global_position_int message on a channel.

Define Documentation

#define MAVLINK_MESSAGE_INFO_GLOBAL_POSITION_INT

Value:

{ \
        "GLOBAL_POSITION_INT", \
        9, \
        {  { "time_boot_ms", NULL, MAVLINK_TYPE_UINT32_T, 0, 0, offsetof(mavlink_global_position_int_t, time_boot_ms) }, \
         { "lat", NULL, MAVLINK_TYPE_INT32_T, 0, 4, offsetof(mavlink_global_position_int_t, lat) }, \
         { "lon", NULL, MAVLINK_TYPE_INT32_T, 0, 8, offsetof(mavlink_global_position_int_t, lon) }, \
         { "alt", NULL, MAVLINK_TYPE_INT32_T, 0, 12, offsetof(mavlink_global_position_int_t, alt) }, \
         { "relative_alt", NULL, MAVLINK_TYPE_INT32_T, 0, 16, offsetof(mavlink_global_position_int_t, relative_alt) }, \
         { "vx", NULL, MAVLINK_TYPE_INT16_T, 0, 20, offsetof(mavlink_global_position_int_t, vx) }, \
         { "vy", NULL, MAVLINK_TYPE_INT16_T, 0, 22, offsetof(mavlink_global_position_int_t, vy) }, \
         { "vz", NULL, MAVLINK_TYPE_INT16_T, 0, 24, offsetof(mavlink_global_position_int_t, vz) }, \
         { "hdg", NULL, MAVLINK_TYPE_UINT16_T, 0, 26, offsetof(mavlink_global_position_int_t, hdg) }, \
         } \
}

Definition at line 26 of file mavlink_msg_global_position_int.h.

#define MAVLINK_MSG_ID_33_CRC 104

Definition at line 22 of file mavlink_msg_global_position_int.h.

#define MAVLINK_MSG_ID_33_LEN 28

Definition at line 19 of file mavlink_msg_global_position_int.h.

#define MAVLINK_MSG_ID_GLOBAL_POSITION_INT 33

Definition at line 3 of file mavlink_msg_global_position_int.h.

#define MAVLINK_MSG_ID_GLOBAL_POSITION_INT_CRC 104

Definition at line 21 of file mavlink_msg_global_position_int.h.

#define MAVLINK_MSG_ID_GLOBAL_POSITION_INT_LEN 28

Definition at line 18 of file mavlink_msg_global_position_int.h.

Typedef Documentation

typedef struct __mavlink_global_position_int_t mavlink_global_position_int_t

Function Documentation

static void mavlink_msg_global_position_int_decode	(	const mavlink_message_t *	msg,
		mavlink_global_position_int_t *	global_position_int
	)		`[inline, static]`

Decode a global_position_int message into a struct.

Parameters:

msg	The message to decode
global_position_int	C-struct to decode the message contents into

Definition at line 386 of file mavlink_msg_global_position_int.h.

static uint16_t mavlink_msg_global_position_int_encode	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		const mavlink_global_position_int_t *	global_position_int
	)		`[inline, static]`

Encode a global_position_int struct.

Parameters:

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
global_position_int	C-struct to read the message contents from

Definition at line 163 of file mavlink_msg_global_position_int.h.

static uint16_t mavlink_msg_global_position_int_encode_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		const mavlink_global_position_int_t *	global_position_int
	)		`[inline, static]`

Encode a global_position_int struct on a channel.

Parameters:

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
global_position_int	C-struct to read the message contents from

Definition at line 177 of file mavlink_msg_global_position_int.h.

static int32_t mavlink_msg_global_position_int_get_alt ( const mavlink_message_t * msg ) [inline, static]

Get field alt from global_position_int message.

Returns:: Altitude in meters, expressed as * 1000 (millimeters), AMSL (not WGS84 - note that virtually all GPS modules provide the AMSL as well)

Definition at line 325 of file mavlink_msg_global_position_int.h.

static uint16_t mavlink_msg_global_position_int_get_hdg ( const mavlink_message_t * msg ) [inline, static]

Get field hdg from global_position_int message.

Returns:: Compass heading in degrees * 100, 0.0..359.99 degrees. If unknown, set to: UINT16_MAX

Definition at line 375 of file mavlink_msg_global_position_int.h.

static int32_t mavlink_msg_global_position_int_get_lat ( const mavlink_message_t * msg ) [inline, static]

Get field lat from global_position_int message.

Returns:: Latitude, expressed as * 1E7

Definition at line 305 of file mavlink_msg_global_position_int.h.

static int32_t mavlink_msg_global_position_int_get_lon ( const mavlink_message_t * msg ) [inline, static]

Get field lon from global_position_int message.

Returns:: Longitude, expressed as * 1E7

Definition at line 315 of file mavlink_msg_global_position_int.h.

static int32_t mavlink_msg_global_position_int_get_relative_alt ( const mavlink_message_t * msg ) [inline, static]

Get field relative_alt from global_position_int message.

Returns:: Altitude above ground in meters, expressed as * 1000 (millimeters)

Definition at line 335 of file mavlink_msg_global_position_int.h.

static uint32_t mavlink_msg_global_position_int_get_time_boot_ms ( const mavlink_message_t * msg ) [inline, static]

Send a global_position_int message.

Parameters:

chan	MAVLink channel to send the message
time_boot_ms	Timestamp (milliseconds since system boot)
lat	Latitude, expressed as * 1E7
lon	Longitude, expressed as * 1E7
alt	Altitude in meters, expressed as * 1000 (millimeters), AMSL (not WGS84 - note that virtually all GPS modules provide the AMSL as well)
relative_alt	Altitude above ground in meters, expressed as * 1000 (millimeters)
vx	Ground X Speed (Latitude), expressed as m/s * 100
vy	Ground Y Speed (Longitude), expressed as m/s * 100
vz	Ground Z Speed (Altitude), expressed as m/s * 100
hdg	Compass heading in degrees * 100, 0.0..359.99 degrees. If unknown, set to: UINT16_MAX Get field time_boot_ms from global_position_int message

Returns:: Timestamp (milliseconds since system boot)

Definition at line 295 of file mavlink_msg_global_position_int.h.

static int16_t mavlink_msg_global_position_int_get_vx ( const mavlink_message_t * msg ) [inline, static]

Get field vx from global_position_int message.

Returns:: Ground X Speed (Latitude), expressed as m/s * 100

Definition at line 345 of file mavlink_msg_global_position_int.h.

static int16_t mavlink_msg_global_position_int_get_vy ( const mavlink_message_t * msg ) [inline, static]

Get field vy from global_position_int message.

Returns:: Ground Y Speed (Longitude), expressed as m/s * 100

Definition at line 355 of file mavlink_msg_global_position_int.h.

static int16_t mavlink_msg_global_position_int_get_vz ( const mavlink_message_t * msg ) [inline, static]

Get field vz from global_position_int message.

Returns:: Ground Z Speed (Altitude), expressed as m/s * 100

Definition at line 365 of file mavlink_msg_global_position_int.h.

static uint16_t mavlink_msg_global_position_int_pack	(	uint8_t	system_id,
		uint8_t	component_id,
		mavlink_message_t *	msg,
		uint32_t	time_boot_ms,
		int32_t	lat,
		int32_t	lon,
		int32_t	alt,
		int32_t	relative_alt,
		int16_t	vx,
		int16_t	vy,
		int16_t	vz,
		uint16_t	hdg
	)		`[inline, static]`

Pack a global_position_int message.

Parameters:

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
msg	The MAVLink message to compress the data into
time_boot_ms	Timestamp (milliseconds since system boot)
lat	Latitude, expressed as * 1E7
lon	Longitude, expressed as * 1E7
alt	Altitude in meters, expressed as * 1000 (millimeters), AMSL (not WGS84 - note that virtually all GPS modules provide the AMSL as well)
relative_alt	Altitude above ground in meters, expressed as * 1000 (millimeters)
vx	Ground X Speed (Latitude), expressed as m/s * 100
vy	Ground Y Speed (Longitude), expressed as m/s * 100
vz	Ground Z Speed (Altitude), expressed as m/s * 100
hdg	Compass heading in degrees * 100, 0.0..359.99 degrees. If unknown, set to: UINT16_MAX

Returns:: length of the message in bytes (excluding serial stream start sign)

Definition at line 59 of file mavlink_msg_global_position_int.h.

static uint16_t mavlink_msg_global_position_int_pack_chan	(	uint8_t	system_id,
		uint8_t	component_id,
		uint8_t	chan,
		mavlink_message_t *	msg,
		uint32_t	time_boot_ms,
		int32_t	lat,
		int32_t	lon,
		int32_t	alt,
		int32_t	relative_alt,
		int16_t	vx,
		int16_t	vy,
		int16_t	vz,
		uint16_t	hdg
	)		`[inline, static]`

Pack a global_position_int message on a channel.

Parameters:

system_id	ID of this system
component_id	ID of this component (e.g. 200 for IMU)
chan	The MAVLink channel this message will be sent over
msg	The MAVLink message to compress the data into
time_boot_ms	Timestamp (milliseconds since system boot)
lat	Latitude, expressed as * 1E7
lon	Longitude, expressed as * 1E7
alt	Altitude in meters, expressed as * 1000 (millimeters), AMSL (not WGS84 - note that virtually all GPS modules provide the AMSL as well)
relative_alt	Altitude above ground in meters, expressed as * 1000 (millimeters)
vx	Ground X Speed (Latitude), expressed as m/s * 100
vy	Ground Y Speed (Longitude), expressed as m/s * 100
vz	Ground Z Speed (Altitude), expressed as m/s * 100
hdg	Compass heading in degrees * 100, 0.0..359.99 degrees. If unknown, set to: UINT16_MAX

Returns:: length of the message in bytes (excluding serial stream start sign)

Definition at line 115 of file mavlink_msg_global_position_int.h.
