OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M > Class Template Reference

#include <RuleInterfaceT.hh>

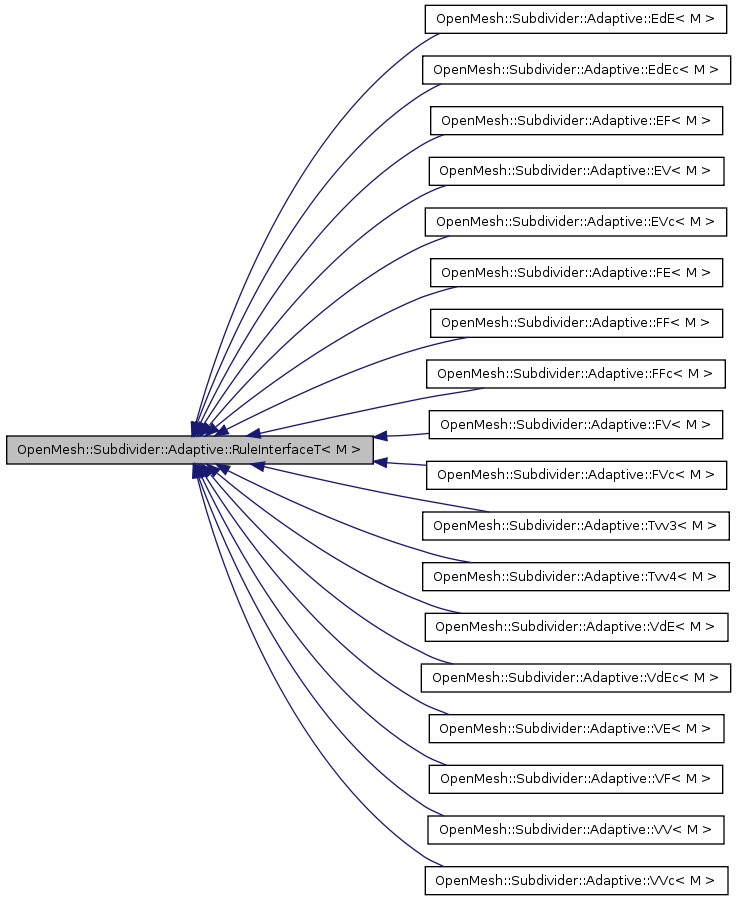

Inheritance diagram for OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >:

[legend]

List of all members.

Public Types
typedef M	Mesh
typedef RuleHandleT< Self >	Rule
typedef M::Scalar	scalar_t
typedef RuleInterfaceT< M >	Self
Public Member Functions
int	number () const
	Position in rule sequence.
int	subdiv_type () const
	Type of split operation, if it is a topological operator.
virtual const char *	type () const =0
void	update (typename M::VertexHandle &_vh, state_t _target_state)
void	update (typename M::EdgeHandle &_eh, state_t _target_state)
void	update (typename M::FaceHandle &_fh, state_t _target_state)
virtual	~RuleInterfaceT ()
	Destructor.
Parameterization of rule
scalar_t	coeff () const
	Get coefficient - ignored by non-parameterized rules.
virtual void	set_coeff (scalar_t _coeff)
	Set coefficient - ignored by non-parameterized rules.
Raise item
virtual void	raise (typename M::VertexHandle &_vh, state_t _target_state)
virtual void	raise (typename M::EdgeHandle &_eh, state_t _target_state)
virtual void	raise (typename M::FaceHandle &_fh, state_t _target_state)
	Raise item to target state _target_state.
Protected Member Functions
int	n_rules ()
Self *	prev_rule ()
	RuleInterfaceT (Mesh &_mesh)
	Default constructor.
void	set_n_rules (int _n)
void	set_number (int _n)
void	set_prev_rule (Self *&_p)
void	set_subdiv_rule (Self *&_n)
void	set_subdiv_type (int _n)
Self *	subdiv_rule ()
Protected Attributes
Mesh &	mesh_
Private Member Functions
RuleInterfaceT &	operator= (const RuleInterfaceT &)
	RuleInterfaceT (const RuleInterfaceT &)
Private Attributes
scalar_t	coeff_
int	n_rules_
int	number_
Self *	prev_rule_
Self *	subdiv_rule_
int	subdiv_type_
Friends
class	CompositeT< M >

---

Detailed Description

template<typename M>
class OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >

Base class for adaptive composite subdivision rules

See also:

class CompositeT

Definition at line 106 of file RuleInterfaceT.hh.

---

Member Typedef Documentation

template<typename M >

typedef M OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::Mesh

Definition at line 110 of file RuleInterfaceT.hh.

template<typename M >

typedef RuleHandleT< Self > OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::Rule

Definition at line 112 of file RuleInterfaceT.hh.

template<typename M >

typedef M::Scalar OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::scalar_t

Definition at line 114 of file RuleInterfaceT.hh.

template<typename M >

typedef RuleInterfaceT<M> OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::Self

Definition at line 111 of file RuleInterfaceT.hh.

---

Constructor & Destructor Documentation

template<typename M >

OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::RuleInterfaceT

(

Mesh &

_mesh

)

[inline, protected]

Default constructor.

Definition at line 119 of file RuleInterfaceT.hh.

template<typename M >

virtual OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::~RuleInterfaceT

(

)

[inline, virtual]

Destructor.

Definition at line 124 of file RuleInterfaceT.hh.

template<typename M >

OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::RuleInterfaceT

(

const RuleInterfaceT< M > &

)

[private]

---

Member Function Documentation

template<typename M >

scalar_t OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::coeff

(

)

const [inline]

Get coefficient - ignored by non-parameterized rules.

Definition at line 349 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::n_rules

(

)

[inline, protected]

Definition at line 364 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::number

(

)

const [inline]

Position in rule sequence.

Definition at line 340 of file RuleInterfaceT.hh.

template<typename M >

RuleInterfaceT& OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::operator=

(

const RuleInterfaceT< M > &

)

[private]

template<typename M >

Self* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::prev_rule

(

)

[inline, protected]

Definition at line 356 of file RuleInterfaceT.hh.

template<typename M >

virtual void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::raise	(	typename M::VertexHandle &	_vh,
		state_t	_target_state
	)			[inline, virtual]

Reimplemented in OpenMesh::Subdivider::Adaptive::Tvv3< M >, OpenMesh::Subdivider::Adaptive::Tvv4< M >, OpenMesh::Subdivider::Adaptive::FV< M >, OpenMesh::Subdivider::Adaptive::FVc< M >, OpenMesh::Subdivider::Adaptive::VV< M >, OpenMesh::Subdivider::Adaptive::VVc< M >, OpenMesh::Subdivider::Adaptive::EV< M >, and OpenMesh::Subdivider::Adaptive::EVc< M >.

Definition at line 152 of file RuleInterfaceT.hh.

template<typename M >

virtual void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::raise	(	typename M::EdgeHandle &	_eh,
		state_t	_target_state
	)			[inline, virtual]

Reimplemented in OpenMesh::Subdivider::Adaptive::Tvv4< M >, OpenMesh::Subdivider::Adaptive::VE< M >, OpenMesh::Subdivider::Adaptive::VdE< M >, OpenMesh::Subdivider::Adaptive::VdEc< M >, OpenMesh::Subdivider::Adaptive::FE< M >, OpenMesh::Subdivider::Adaptive::EdE< M >, and OpenMesh::Subdivider::Adaptive::EdEc< M >.

Definition at line 144 of file RuleInterfaceT.hh.

template<typename M >

virtual void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::raise	(	typename M::FaceHandle &	_fh,
		state_t	_target_state
	)			[inline, virtual]

Raise item to target state _target_state.

Reimplemented in OpenMesh::Subdivider::Adaptive::Tvv3< M >, OpenMesh::Subdivider::Adaptive::Tvv4< M >, OpenMesh::Subdivider::Adaptive::VF< M >, OpenMesh::Subdivider::Adaptive::FF< M >, OpenMesh::Subdivider::Adaptive::FFc< M >, and OpenMesh::Subdivider::Adaptive::EF< M >.

Definition at line 136 of file RuleInterfaceT.hh.

template<typename M >

virtual void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_coeff

(

scalar_t

_coeff

)

[inline, virtual]

Set coefficient - ignored by non-parameterized rules.

Definition at line 346 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_n_rules

(

int

_n

)

[inline, protected]

Definition at line 363 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_number

(

int

_n

)

[inline, protected]

Definition at line 361 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_prev_rule

(

Self *&

_p

)

[inline, protected]

Definition at line 355 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_subdiv_rule

(

Self *&

_n

)

[inline, protected]

Definition at line 358 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::set_subdiv_type

(

int

_n

)

[inline, protected]

Definition at line 366 of file RuleInterfaceT.hh.

template<typename M >

Self* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::subdiv_rule

(

)

[inline, protected]

Definition at line 359 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::subdiv_type

(

)

const [inline]

Type of split operation, if it is a topological operator.

Definition at line 336 of file RuleInterfaceT.hh.

template<typename M >

virtual const char* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::type

(

)

const [pure virtual]

Returns the name of the rule. Use define COMPOSITE_RULE to overload this function in a derived class.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::update	(	typename M::VertexHandle &	_vh,
		state_t	_target_state
	)			[inline]

Definition at line 287 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::update	(	typename M::EdgeHandle &	_eh,
		state_t	_target_state
	)			[inline]

Definition at line 255 of file RuleInterfaceT.hh.

template<typename M >

void OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::update	(	typename M::FaceHandle &	_fh,
		state_t	_target_state
	)			[inline]

Definition at line 161 of file RuleInterfaceT.hh.

---

Friends And Related Function Documentation

template<typename M >

friend class CompositeT< M > [friend]

Definition at line 369 of file RuleInterfaceT.hh.

---

Member Data Documentation

template<typename M >

scalar_t OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::coeff_ [private]

Definition at line 384 of file RuleInterfaceT.hh.

template<typename M >

Mesh& OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::mesh_ [protected]

Definition at line 373 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::n_rules_ [private]

Definition at line 382 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::number_ [private]

Definition at line 381 of file RuleInterfaceT.hh.

template<typename M >

Self* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::prev_rule_ [private]

Definition at line 377 of file RuleInterfaceT.hh.

template<typename M >

Self* OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::subdiv_rule_ [private]

Definition at line 378 of file RuleInterfaceT.hh.

template<typename M >

int OpenMesh::Subdivider::Adaptive::RuleInterfaceT< M >::subdiv_type_ [private]

Definition at line 380 of file RuleInterfaceT.hh.

---

The documentation for this class was generated from the following file:

• RuleInterfaceT.hh
