OpenMesh::Decimater::ModQuadricT< DecimaterType > Class Template Reference

#include <ModQuadricT.hh>

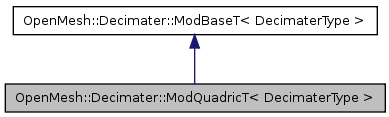

Inheritance diagram for OpenMesh::Decimater::ModQuadricT< DecimaterType >:

[legend]

List of all members.

Public Member Functions
virtual float	collapse_priority (const CollapseInfo &_ci)
	DECIMATING_MODULE (ModQuadricT, DecimaterType, Quadric)
virtual void	initialize (void)
	Initalize the module and prepare the mesh for decimation.
double	max_err () const
	Return value of max. allowed error.
	ModQuadricT (DecimaterType &_dec)
virtual void	postprocess_collapse (const CollapseInfo &_ci)
	Post-process halfedge collapse (accumulate quadrics).
void	set_max_err (double _err, bool _binary=true)
void	unset_max_err (void)
virtual	~ModQuadricT ()
	Destructor.
Private Attributes
double	max_err_
VPropHandleT < Geometry::QuadricT< double > >	quadrics_

---

Detailed Description

template<class DecimaterType>
class OpenMesh::Decimater::ModQuadricT< DecimaterType >

Mesh decimation module computing collapse priority based on error quadrics.

This module can be used as a binary and non-binary module.

Definition at line 76 of file ModQuadricT.hh.

---

Constructor & Destructor Documentation

template<class DecimaterType >

OpenMesh::Decimater::ModQuadricT< DecimaterType >::ModQuadricT

(

DecimaterType &

_dec

)

[inline]

Constructor

Definition at line 89 of file ModQuadricT.hh.

template<class DecimaterType >

virtual OpenMesh::Decimater::ModQuadricT< DecimaterType >::~ModQuadricT

(

)

[inline, virtual]

Destructor.

Definition at line 98 of file ModQuadricT.hh.

---

Member Function Documentation

template<class DecimaterType >

virtual float OpenMesh::Decimater::ModQuadricT< DecimaterType >::collapse_priority

(

const CollapseInfo &

_ci

)

[inline, virtual]

Compute collapse priority based on error quadrics.

See also:

ModBaseT::collapse_priority() for return values

set_max_err()

Definition at line 114 of file ModQuadricT.hh.

template<class DecimaterType >

OpenMesh::Decimater::ModQuadricT< DecimaterType >::DECIMATING_MODULE	(	ModQuadricT< DecimaterType >	,
		DecimaterType	,
		Quadric
	)

template<class DecimaterType >

void OpenMesh::Decimater::ModQuadricT< DecimaterType >::initialize

(

void

)

[inline, virtual]

Initalize the module and prepare the mesh for decimation.

Reimplemented from OpenMesh::Decimater::ModBaseT< DecimaterType >.

Definition at line 66 of file ModQuadricT.cc.

template<class DecimaterType >

double OpenMesh::Decimater::ModQuadricT< DecimaterType >::max_err

(

)

const [inline]

Return value of max. allowed error.

Definition at line 166 of file ModQuadricT.hh.

template<class DecimaterType >

virtual void OpenMesh::Decimater::ModQuadricT< DecimaterType >::postprocess_collapse

(

const CollapseInfo &

_ci

)

[inline, virtual]

Post-process halfedge collapse (accumulate quadrics).

Definition at line 135 of file ModQuadricT.hh.

template<class DecimaterType >

void OpenMesh::Decimater::ModQuadricT< DecimaterType >::set_max_err	(	double	_err,
		bool	_binary = true
	)			[inline]

Set maximum quadric error constraint and enable binary mode.

Parameters:

	_err	Maximum error allowed
	_binary	Let the module work in non-binary mode in spite of the enabled constraint.

See also:

unset_max_err()

Definition at line 151 of file ModQuadricT.hh.

template<class DecimaterType >

void OpenMesh::Decimater::ModQuadricT< DecimaterType >::unset_max_err

(

void

)

[inline]

Unset maximum quadric error constraint and restore non-binary mode.

See also:

set_max_err()

Definition at line 159 of file ModQuadricT.hh.

---

Member Data Documentation

template<class DecimaterType >

double OpenMesh::Decimater::ModQuadricT< DecimaterType >::max_err_ [private]

Definition at line 172 of file ModQuadricT.hh.

template<class DecimaterType >

VPropHandleT< Geometry::QuadricT<double> > OpenMesh::Decimater::ModQuadricT< DecimaterType >::quadrics_ [private]

Definition at line 175 of file ModQuadricT.hh.

---

The documentation for this class was generated from the following files:

• ModQuadricT.hh
• ModQuadricT.cc
