#include "miniaudio.h"
#include "pv_circular_buffer.h"
#include "pv_recorder.h"

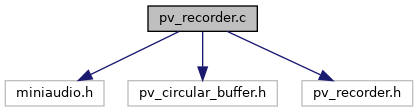

Include dependency graph for pvrecorder/src/pv_recorder.c:

Classes
struct	pv_recorder

Macros
#define	MINIAUDIO_IMPLEMENTATION

Functions
PV_API void	pv_recorder_delete (pv_recorder_t *object)

PV_API void	pv_recorder_free_device_list (int32_t count, char **devices)

PV_API pv_recorder_status_t	pv_recorder_get_audio_devices (int32_t count, char **devices)

const PV_API char *	pv_recorder_get_selected_device (pv_recorder_t *object)

PV_API pv_recorder_status_t	pv_recorder_init (int32_t device_index, int32_t frame_length, int32_t buffer_size_msec, bool log_overflow, pv_recorder_t **object)

static void	pv_recorder_ma_callback (ma_device device, void output, const void *input, ma_uint32 frame_count)

PV_API pv_recorder_status_t	pv_recorder_read (pv_recorder_t object, int16_t pcm)

PV_API pv_recorder_status_t	pv_recorder_start (pv_recorder_t *object)

const PV_API char *	pv_recorder_status_to_string (pv_recorder_status_t status)

PV_API pv_recorder_status_t	pv_recorder_stop (pv_recorder_t *object)

const PV_API char *	pv_recorder_version (void)

Variables
static const int32_t	READ_RETRY_COUNT = 500

static const int32_t	READ_SLEEP_MILLI_SECONDS = 2

Macro Definition Documentation

◆ MINIAUDIO_IMPLEMENTATION

#define MINIAUDIO_IMPLEMENTATION

Definition at line 16 of file pvrecorder/src/pv_recorder.c.

Function Documentation

◆ pv_recorder_delete()

PV_API void pv_recorder_delete ( pv_recorder_t * object )

Destructor.

Parameters

object PV_Recorder object.

Definition at line 162 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_free_device_list()

PV_API void pv_recorder_free_device_list	(	int32_t	count,
		char **	devices
	)

Frees the device list initialized by pv_recorder_get_audio_devices. The function does not do any checks, providing correct count and pointer is up to the caller.

Parameters

count	The number of audio devices.
devices	The array containing the list of audio devices.

Definition at line 314 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_get_audio_devices()

PV_API pv_recorder_status_t pv_recorder_get_audio_devices	(	int32_t *	count,
		char ***	devices
	)

Gets the input audio devices currently available. Each device name has a separate pointer, so the caller must free each item in the output array individually and free the output array itself. The utility function pv_recorder_free_device_list is provided to free the device list.

Parameters

[out]	count	The number of audio devices.
[out]	devices	The output array containing the list of audio devices.

Returns: Status Code. Returns PV_RECORDER_STATUS_OUT_OF_MEMORY, PV_RECORDER_STATUS_BACKEND_ERROR or PV_RECORDER_STATUS_INVALID_ARGUMENT on failure.

Definition at line 256 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_get_selected_device()

const PV_API char* pv_recorder_get_selected_device ( pv_recorder_t * object )

Getter to get the current selected audio device name.

Parameters

object PV_Recorder object.

Returns: A string containing the name of the device.

Definition at line 249 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_init()

PV_API pv_recorder_status_t pv_recorder_init	(	int32_t	device_index,
		int32_t	frame_length,
		int32_t	buffer_size_msec,
		bool	log_overflow,
		pv_recorder_t **	object
	)

Constructor for Picovoice Audio Recorder.

Parameters

	device_index	The index of the audio device to use. A value of (-1) will resort to default device.
	frame_length	The length of audio frame to get for each read call.
	buffer_size_msec	Time in milliseconds to store audio frames to a temporary buffer.
	log_overflow	Boolean variable to enable overflow logs. This will enable warning logs when buffer overflow occurs.
[out]	object	Audio Recorder object to initialize.

Returns: Status Code. PV_RECORDER_STATUS_INVALID_ARGUMENT, PV_RECORDER_STATUS_BACKEND_ERROR, PV_RECORDER_STATUS_DEVICE_INITIALIZED or PV_RECORDER_STATUS_OUT_OF_MEMORY on failure.

Definition at line 51 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_ma_callback()

static void pv_recorder_ma_callback	(	ma_device *	device,
		void *	output,
		const void *	input,
		ma_uint32	frame_count
	)

static

Definition at line 38 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_read()

PV_API pv_recorder_status_t pv_recorder_read	(	pv_recorder_t *	object,
		int16_t *	pcm
	)

Synchronous call to read frames. Copies param ${length} amount of frames to param ${pcm} array provided to input.

Parameters

object	PV_Recorder object.
pcm[out]	An array for the frames to be copied to.

Returns: Status Code. Returns PV_RECORDER_STATUS_INVALID_ARGUMENT, PV_RECORDER_INVALID_STATE or PV_RECORDER_IO_ERROR on failure. Returns PV_RECORDER_STATUS_BUFFER_OVERFLOW if audio frames aren't being read fast enough. This means old audio frames are being replaced by new audio frames.

Definition at line 213 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_start()

PV_API pv_recorder_status_t pv_recorder_start ( pv_recorder_t * object )

Starts recording audio and processing audio frames.

Parameters

object PV_Recorder object. @returnStatus Status Code. Returns PV_RECORDER_STATUS_INVALID_ARGUMENT, PV_RECORDER_STATUS_DEVICE_NOT_INITIALIZED or PV_RECORDER_STATUS_INVALID_STATE on failure.

Definition at line 172 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_status_to_string()

const PV_API char* pv_recorder_status_to_string ( pv_recorder_status_t status )

Provides string representations of status codes.

Parameters

status Status code.

Returns: String representation.

Definition at line 323 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_stop()

PV_API pv_recorder_status_t pv_recorder_stop ( pv_recorder_t * object )

Stops recording audio.

Parameters

object PV_Recorder object.

Returns: Status Code. Returns PV_RECORDER_STATUS_INVALID_ARGUMENT, PV_RECORDER_STATUS_DEVICE_NOT_INITIALIZED or PV_RECORDER_STATUS_INVALID_STATE on failure.

Definition at line 192 of file pvrecorder/src/pv_recorder.c.

◆ pv_recorder_version()

const PV_API char* pv_recorder_version ( void )

Getter for version.

Returns: Version.

Definition at line 343 of file pvrecorder/src/pv_recorder.c.

Variable Documentation

◆ READ_RETRY_COUNT

const int32_t READ_RETRY_COUNT = 500

static

Definition at line 25 of file pvrecorder/src/pv_recorder.c.

◆ READ_SLEEP_MILLI_SECONDS

const int32_t READ_SLEEP_MILLI_SECONDS = 2

static

Definition at line 26 of file pvrecorder/src/pv_recorder.c.
