pvrecorder/src/pv_circular_buffer.c File Reference

#include <stdlib.h>
#include <string.h>
#include "pv_circular_buffer.h"

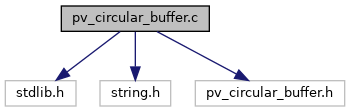

Include dependency graph for pvrecorder/src/pv_circular_buffer.c:

Go to the source code of this file.

Classes
struct	pv_circular_buffer

Functions
void	pv_circular_buffer_delete (pv_circular_buffer_t *object)
pv_circular_buffer_status_t	pv_circular_buffer_init (int32_t capacity, int32_t element_size, pv_circular_buffer_t **object)
int32_t	pv_circular_buffer_read (pv_circular_buffer_t *object, void *buffer, int32_t length)
void	pv_circular_buffer_reset (pv_circular_buffer_t *object)
const char *	pv_circular_buffer_status_to_string (pv_circular_buffer_status_t status)
pv_circular_buffer_status_t	pv_circular_buffer_write (pv_circular_buffer_t *object, const void *buffer, int32_t length)

Function Documentation

pv_circular_buffer_delete()

void pv_circular_buffer_delete

(

pv_circular_buffer_t *

object

)

Destructor for PV_circular_buffer object.

Parameters

object

Circular buffer object.

Definition at line 61 of file pvrecorder/src/pv_circular_buffer.c.

pv_circular_buffer_init()

pv_circular_buffer_status_t pv_circular_buffer_init	(	int32_t	capacity,
		int32_t	element_size,
		pv_circular_buffer_t **	object
	)

Constructor for PV_circular_buffer object.

Parameters

capacity	Capacity of the buffer to read and write.
element_size	Size of each element in the buffer.
object[out]	Circular buffer object.

Returns

Status Code. Returns PV_CIRCULAR_BUFFER_STATUS_OUT_OF_MEMORY or PV_CIRCULAR_BUFFER_STATUS_INVALID_ARGUMENT on failure.

Definition at line 26 of file pvrecorder/src/pv_circular_buffer.c.

pv_circular_buffer_read()

int32_t pv_circular_buffer_read	(	pv_circular_buffer_t *	object,
		void *	buffer,
		int32_t	length
	)

Reads and copies the elements to the provided buffer.

Parameters

object	Circular buffer object.
buffer[out]	A pointer to copy the elements into.
length	The amount to copy to read from the buffer. is not PV_CIRCULAR_BUFFER_STATUS_SUCCESS.

Returns

Returns the total length of frames copied to buffer.

Definition at line 68 of file pvrecorder/src/pv_circular_buffer.c.

pv_circular_buffer_reset()

void pv_circular_buffer_reset

(

pv_circular_buffer_t *

object

)

Reset the buffer pointers to start.

Parameters

object

Circular buffer object.

Definition at line 152 of file pvrecorder/src/pv_circular_buffer.c.

pv_circular_buffer_status_to_string()

const char* pv_circular_buffer_status_to_string

(

pv_circular_buffer_status_t

status

)

Provides string representations of status codes.

Parameters

status

Status code.

Returns

String representation.

Definition at line 158 of file pvrecorder/src/pv_circular_buffer.c.

pv_circular_buffer_write()

pv_circular_buffer_status_t pv_circular_buffer_write	(	pv_circular_buffer_t *	object,
		const void *	buffer,
		int32_t	length
	)

Writes and copies the elements of param ${buffer} to the object's buffer. Overwrites existing frames if the buffer is full and returns PV_CIRCULAR_BUFFER_STATUS_WRITE_OVERFLOW which is not a failure.

Parameters

object	Circular buffer object.
buffer	A pointer to copy its elements to the object's buffer.
length	The amount of elements to copy.

Returns

Status Code. Returns PV_CIRCULAR_BUFFER_STATUS_INVALID_ARGUMENT on failure.

Definition at line 108 of file pvrecorder/src/pv_circular_buffer.c.
