defs.h File Reference

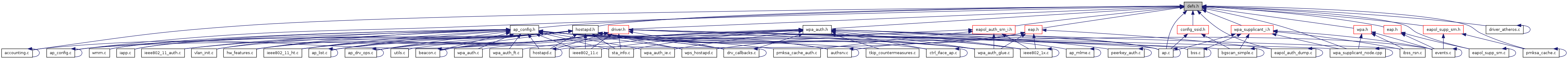

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines

#define MLME_SETPROTECTION_KEY_TYPE_GROUP   0
#define MLME_SETPROTECTION_KEY_TYPE_PAIRWISE   1
#define MLME_SETPROTECTION_PROTECT_TYPE_NONE   0
#define MLME_SETPROTECTION_PROTECT_TYPE_RX   1
#define MLME_SETPROTECTION_PROTECT_TYPE_RX_TX   3
#define MLME_SETPROTECTION_PROTECT_TYPE_TX   2
#define WPA_AUTH_ALG_FT   BIT(3)
#define WPA_AUTH_ALG_LEAP   BIT(2)
#define WPA_AUTH_ALG_OPEN   BIT(0)
#define WPA_AUTH_ALG_SHARED   BIT(1)
#define WPA_CIPHER_CCMP   BIT(4)
#define WPA_CIPHER_NONE   BIT(0)
#define WPA_CIPHER_TKIP   BIT(3)
#define WPA_CIPHER_WEP104   BIT(2)
#define WPA_CIPHER_WEP40   BIT(1)
#define WPA_KEY_MGMT_FT_IEEE8021X   BIT(5)
#define WPA_KEY_MGMT_FT_PSK   BIT(6)
#define WPA_KEY_MGMT_IEEE8021X   BIT(0)
#define WPA_KEY_MGMT_IEEE8021X_NO_WPA   BIT(3)
#define WPA_KEY_MGMT_IEEE8021X_SHA256   BIT(7)
#define WPA_KEY_MGMT_NONE   BIT(2)
#define WPA_KEY_MGMT_PSK   BIT(1)
#define WPA_KEY_MGMT_PSK_SHA256   BIT(8)
#define WPA_KEY_MGMT_WPA_NONE   BIT(4)
#define WPA_KEY_MGMT_WPS   BIT(9)
#define WPA_PROTO_RSN   BIT(1)
#define WPA_PROTO_WPA   BIT(0)

Enumerations

enum  Boolean { FALSE = 0, TRUE = 1 }
enum  hostapd_hw_mode { HOSTAPD_MODE_IEEE80211B, HOSTAPD_MODE_IEEE80211G, HOSTAPD_MODE_IEEE80211A, NUM_HOSTAPD_MODES }
enum  mfp_options { NO_MGMT_FRAME_PROTECTION = 0, MGMT_FRAME_PROTECTION_OPTIONAL = 1, MGMT_FRAME_PROTECTION_REQUIRED = 2 }
enum  wpa_alg {
  WPA_ALG_NONE, WPA_ALG_WEP, WPA_ALG_TKIP, WPA_ALG_CCMP,
  WPA_ALG_IGTK, WPA_ALG_PMK
}
enum  wpa_cipher {
  CIPHER_NONE, CIPHER_WEP40, CIPHER_TKIP, CIPHER_CCMP,
  CIPHER_WEP104
}
enum  wpa_key_mgmt {
  KEY_MGMT_802_1X, KEY_MGMT_PSK, KEY_MGMT_NONE, KEY_MGMT_802_1X_NO_WPA,
  KEY_MGMT_WPA_NONE, KEY_MGMT_FT_802_1X, KEY_MGMT_FT_PSK, KEY_MGMT_802_1X_SHA256,
  KEY_MGMT_PSK_SHA256, KEY_MGMT_WPS
}
enum  wpa_states {
  WPA_DISCONNECTED, WPA_INACTIVE, WPA_SCANNING, WPA_AUTHENTICATING,
  WPA_ASSOCIATING, WPA_ASSOCIATED, WPA_4WAY_HANDSHAKE, WPA_GROUP_HANDSHAKE,
  WPA_COMPLETED
}

Functions

static int wpa_key_mgmt_ft (int akm)
static int wpa_key_mgmt_sha256 (int akm)
static int wpa_key_mgmt_wpa_ieee8021x (int akm)
static int wpa_key_mgmt_wpa_psk (int akm)

Define Documentation

#define MLME_SETPROTECTION_KEY_TYPE_GROUP   0

Definition at line 232 of file defs.h.

#define MLME_SETPROTECTION_KEY_TYPE_PAIRWISE   1

Definition at line 233 of file defs.h.

#define MLME_SETPROTECTION_PROTECT_TYPE_NONE   0

Definition at line 227 of file defs.h.

#define MLME_SETPROTECTION_PROTECT_TYPE_RX   1

Definition at line 228 of file defs.h.

#define MLME_SETPROTECTION_PROTECT_TYPE_RX_TX   3

Definition at line 230 of file defs.h.

#define MLME_SETPROTECTION_PROTECT_TYPE_TX   2

Definition at line 229 of file defs.h.

#define WPA_AUTH_ALG_FT   BIT(3)

Definition at line 80 of file defs.h.

#define WPA_AUTH_ALG_LEAP   BIT(2)

Definition at line 79 of file defs.h.

#define WPA_AUTH_ALG_OPEN   BIT(0)

Definition at line 77 of file defs.h.

#define WPA_AUTH_ALG_SHARED   BIT(1)

Definition at line 78 of file defs.h.

#define WPA_CIPHER_CCMP   BIT(4)

Definition at line 31 of file defs.h.

#define WPA_CIPHER_NONE   BIT(0)

Definition at line 27 of file defs.h.

#define WPA_CIPHER_TKIP   BIT(3)

Definition at line 30 of file defs.h.

#define WPA_CIPHER_WEP104   BIT(2)

Definition at line 29 of file defs.h.

#define WPA_CIPHER_WEP40   BIT(1)

Definition at line 28 of file defs.h.

#define WPA_KEY_MGMT_FT_IEEE8021X   BIT(5)

Definition at line 41 of file defs.h.

#define WPA_KEY_MGMT_FT_PSK   BIT(6)

Definition at line 42 of file defs.h.

#define WPA_KEY_MGMT_IEEE8021X   BIT(0)

Definition at line 36 of file defs.h.

#define WPA_KEY_MGMT_IEEE8021X_NO_WPA   BIT(3)

Definition at line 39 of file defs.h.

#define WPA_KEY_MGMT_IEEE8021X_SHA256   BIT(7)

Definition at line 43 of file defs.h.

#define WPA_KEY_MGMT_NONE   BIT(2)

Definition at line 38 of file defs.h.

#define WPA_KEY_MGMT_PSK   BIT(1)

Definition at line 37 of file defs.h.

#define WPA_KEY_MGMT_PSK_SHA256   BIT(8)

Definition at line 44 of file defs.h.

#define WPA_KEY_MGMT_WPA_NONE   BIT(4)

Definition at line 40 of file defs.h.

#define WPA_KEY_MGMT_WPS   BIT(9)

Definition at line 45 of file defs.h.

#define WPA_PROTO_RSN   BIT(1)

Definition at line 75 of file defs.h.

#define WPA_PROTO_WPA   BIT(0)

Definition at line 74 of file defs.h.


Enumeration Type Documentation

enum Boolean
Enumerator:
FALSE
TRUE

Definition at line 24 of file defs.h.

enum hostapd_hw_mode - Hardware mode

Enumerator:
HOSTAPD_MODE_IEEE80211B
HOSTAPD_MODE_IEEE80211G
HOSTAPD_MODE_IEEE80211A
NUM_HOSTAPD_MODES

Definition at line 248 of file defs.h.

enum mfp_options - Management frame protection (IEEE 802.11w) options

Enumerator:
NO_MGMT_FRAME_PROTECTION
MGMT_FRAME_PROTECTION_OPTIONAL
MGMT_FRAME_PROTECTION_REQUIRED

Definition at line 239 of file defs.h.

enum wpa_alg
Enumerator:
WPA_ALG_NONE
WPA_ALG_WEP
WPA_ALG_TKIP
WPA_ALG_CCMP
WPA_ALG_IGTK
WPA_ALG_PMK

Definition at line 83 of file defs.h.

enum wpa_cipher

enum wpa_cipher - Cipher suites

Enumerator:
CIPHER_NONE
CIPHER_WEP40
CIPHER_TKIP
CIPHER_CCMP
CIPHER_WEP104

Definition at line 95 of file defs.h.

enum wpa_key_mgmt - Key management suites

Enumerator:
KEY_MGMT_802_1X
KEY_MGMT_PSK
KEY_MGMT_NONE
KEY_MGMT_802_1X_NO_WPA
KEY_MGMT_WPA_NONE
KEY_MGMT_FT_802_1X
KEY_MGMT_FT_PSK
KEY_MGMT_802_1X_SHA256
KEY_MGMT_PSK_SHA256
KEY_MGMT_WPS

Definition at line 106 of file defs.h.

enum wpa_states

enum wpa_states - wpa_supplicant state

These enumeration values are used to indicate the current wpa_supplicant state (wpa_s->wpa_state). The current state can be retrieved with wpa_supplicant_get_state() function and the state can be changed by calling wpa_supplicant_set_state(). In WPA state machine (wpa.c and preauth.c), the wrapper functions wpa_sm_get_state() and wpa_sm_set_state() should be used to access the state variable.

Enumerator:
WPA_DISCONNECTED

WPA_DISCONNECTED - Disconnected state

This state indicates that client is not associated, but is likely to start looking for an access point. This state is entered when a connection is lost.

WPA_INACTIVE

WPA_INACTIVE - Inactive state (wpa_supplicant disabled)

This state is entered if there are no enabled networks in the configuration. wpa_supplicant is not trying to associate with a new network and external interaction (e.g., ctrl_iface call to add or enable a network) is needed to start association.

WPA_SCANNING

WPA_SCANNING - Scanning for a network

This state is entered when wpa_supplicant starts scanning for a network.

WPA_AUTHENTICATING

WPA_AUTHENTICATING - Trying to authenticate with a BSS/SSID

This state is entered when wpa_supplicant has found a suitable BSS to authenticate with and the driver is configured to try to authenticate with this BSS. This state is used only with drivers that use wpa_supplicant as the SME.

WPA_ASSOCIATING

WPA_ASSOCIATING - Trying to associate with a BSS/SSID

This state is entered when wpa_supplicant has found a suitable BSS to associate with and the driver is configured to try to associate with this BSS in ap_scan=1 mode. When using ap_scan=2 mode, this state is entered when the driver is configured to try to associate with a network using the configured SSID and security policy.

WPA_ASSOCIATED

WPA_ASSOCIATED - Association completed

This state is entered when the driver reports that association has been successfully completed with an AP. If IEEE 802.1X is used (with or without WPA/WPA2), wpa_supplicant remains in this state until the IEEE 802.1X/EAPOL authentication has been completed.

WPA_4WAY_HANDSHAKE

WPA_4WAY_HANDSHAKE - WPA 4-Way Key Handshake in progress

This state is entered when WPA/WPA2 4-Way Handshake is started. In case of WPA-PSK, this happens when receiving the first EAPOL-Key frame after association. In case of WPA-EAP, this state is entered when the IEEE 802.1X/EAPOL authentication has been completed.

WPA_GROUP_HANDSHAKE

WPA_GROUP_HANDSHAKE - WPA Group Key Handshake in progress

This state is entered when 4-Way Key Handshake has been completed (i.e., when the supplicant sends out message 4/4) and when Group Key rekeying is started by the AP (i.e., when supplicant receives message 1/2).

WPA_COMPLETED

WPA_COMPLETED - All authentication completed

This state is entered when the full authentication process is completed. In case of WPA2, this happens when the 4-Way Handshake is successfully completed. With WPA, this state is entered after the Group Key Handshake; with IEEE 802.1X (non-WPA) connection is completed after dynamic keys are received (or if not used, after the EAP authentication has been completed). With static WEP keys and plaintext connections, this state is entered when an association has been completed.

This state indicates that the supplicant has completed its processing for the association phase and that data connection is fully configured.

Definition at line 129 of file defs.h.


Function Documentation

static int wpa_key_mgmt_ft ( int  akm  )  [inline, static]

Definition at line 61 of file defs.h.

static int wpa_key_mgmt_sha256 ( int  akm  )  [inline, static]

Definition at line 67 of file defs.h.

static int wpa_key_mgmt_wpa_ieee8021x ( int  akm  )  [inline, static]

Definition at line 47 of file defs.h.

static int wpa_key_mgmt_wpa_psk ( int  akm  )  [inline, static]

Definition at line 54 of file defs.h.
