industrial::joint_traj::JointTraj Class Reference

Class encapsulated joint trajectory For simplicity and cross platform compliance, this is implemented as a fixed size array. The size of the trajectory cannot exceed the max size of the array. More...

#include <joint_traj.h>

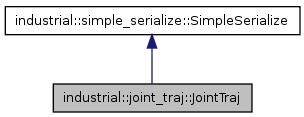

Inheritance diagram for industrial::joint_traj::JointTraj:

[legend]

List of all members.

Public Member Functions
bool	addPoint (industrial::joint_traj_pt::JointTrajPt &point)
	Adds a point value to the end of the buffer.
unsigned int	byteLength ()
	Virtual method returns the object size when packed into a ByteArray.
void	copyFrom (JointTraj &src)
	Copies the passed in value.
int	getMaxNumPoints () const
	returns the maximum number of points the message holds
bool	getPoint (industrial::shared_types::shared_int index, industrial::joint_traj_pt::JointTrajPt &point)
	Gets a point value within the buffer.
void	init ()
	Initializes a empty joint data.
bool	isFull ()
	returns True if buffer is full
	JointTraj (void)
	Default constructor.
bool	load (industrial::byte_array::ByteArray *buffer)
	Virtual method for loading an object into a ByteArray.
bool	operator== (JointTraj &rhs)
	== operator implementation
industrial::shared_types::shared_int	size ()
	Gets a size of trajectory.
bool	unload (industrial::byte_array::ByteArray *buffer)
	Virtual method for unloading an object from a ByteArray.
	~JointTraj (void)
	Destructor.
Private Attributes
industrial::joint_traj_pt::JointTrajPt	points_ [MAX_NUM_POINTS]
	internal data buffer
industrial::shared_types::shared_int	size_
	size of trajectory
Static Private Attributes
static const industrial::shared_types::shared_int	MAX_NUM_POINTS = 200
	maximum number of joints positions that can be held in the message.

---

Detailed Description

Class encapsulated joint trajectory For simplicity and cross platform compliance, this is implemented as a fixed size array. The size of the trajectory cannot exceed the max size of the array.

THIS CLASS IS NOT THREAD-SAFE

Definition at line 69 of file joint_traj.h.

---

Constructor & Destructor Documentation

industrial::joint_traj::JointTraj::JointTraj

(

void

)

Default constructor.

This method creates empty data.

Definition at line 51 of file joint_traj.cpp.

industrial::joint_traj::JointTraj::~JointTraj

(

void

)

Destructor.

Definition at line 55 of file joint_traj.cpp.

---

Member Function Documentation

bool industrial::joint_traj::JointTraj::addPoint

(

industrial::joint_traj_pt::JointTrajPt &

point

)

Adds a point value to the end of the buffer.

Parameters:

point

value

Returns:

true if value set, otherwise false (buffer is full)

Definition at line 71 of file joint_traj.cpp.

unsigned int industrial::joint_traj::JointTraj::byteLength

(

)

[inline, virtual]

Virtual method returns the object size when packed into a ByteArray.

Returns:

object size (in bytes)

Implements industrial::simple_serialize::SimpleSerialize.

Definition at line 157 of file joint_traj.h.

void industrial::joint_traj::JointTraj::copyFrom

(

JointTraj &

src

)

Copies the passed in value.

Parameters:

src

(value to copy)

Definition at line 107 of file joint_traj.cpp.

int industrial::joint_traj::JointTraj::getMaxNumPoints

(

)

const [inline]

returns the maximum number of points the message holds

Returns:

max number of points

Definition at line 135 of file joint_traj.h.

bool industrial::joint_traj::JointTraj::getPoint	(	industrial::shared_types::shared_int	index,
		industrial::joint_traj_pt::JointTrajPt &	point
	)

Gets a point value within the buffer.

Parameters:

	point	index
	point	value

Returns:

true if value set, otherwise false (index greater than size)

void industrial::joint_traj::JointTraj::init

(

)

Initializes a empty joint data.

Definition at line 60 of file joint_traj.cpp.

bool industrial::joint_traj::JointTraj::isFull

(

)

[inline]

returns True if buffer is full

Returns:

true if buffer is full

Definition at line 125 of file joint_traj.h.

bool industrial::joint_traj::JointTraj::load

(

industrial::byte_array::ByteArray *

buffer

)

[virtual]

Virtual method for loading an object into a ByteArray.

This method should load all the required data to reconstruct the class object into the buffer

Parameters:

buffer

pointer to ByteArray

Returns:

true on success, false otherwise (buffer not large enough)

Implements industrial::simple_serialize::SimpleSerialize.

Definition at line 151 of file joint_traj.cpp.

bool industrial::joint_traj::JointTraj::operator==

(

JointTraj &

rhs

)

== operator implementation

Returns:

true if equal

Definition at line 119 of file joint_traj.cpp.

industrial::shared_types::shared_int industrial::joint_traj::JointTraj::size

(

)

[inline]

Gets a size of trajectory.

Returns:

trajectory size

Definition at line 115 of file joint_traj.h.

bool industrial::joint_traj::JointTraj::unload

(

industrial::byte_array::ByteArray *

buffer

)

[virtual]

Virtual method for unloading an object from a ByteArray.

This method should unload all the required data to reconstruct the class object (in place)

Parameters:

buffer

pointer to ByteArray

Returns:

true on success, false otherwise (buffer not large enough)

Implements industrial::simple_serialize::SimpleSerialize.

Definition at line 177 of file joint_traj.cpp.

---

Member Data Documentation

const industrial::shared_types::shared_int industrial::joint_traj::JointTraj::MAX_NUM_POINTS = 200 [static, private]

maximum number of joints positions that can be held in the message.

Definition at line 168 of file joint_traj.h.

industrial::joint_traj_pt::JointTrajPt industrial::joint_traj::JointTraj::points_[MAX_NUM_POINTS] [private]

internal data buffer

Definition at line 172 of file joint_traj.h.

industrial::shared_types::shared_int industrial::joint_traj::JointTraj::size_ [private]

size of trajectory

Definition at line 176 of file joint_traj.h.

---

The documentation for this class was generated from the following files:

• joint_traj.h
• joint_traj.cpp
