OpenMesh::DefaultTraits Class Reference

#include <OpenMesh/Mesh/Traits.hh>

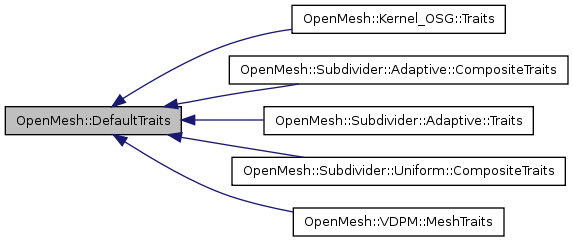

Inheritance diagram for OpenMesh::DefaultTraits:

[legend]

List of all members.

Public Types
typedef Vec3uc	Color
	The default color type is OpenMesh::Vec3uc.
typedef Vec3f	Normal
	The default normal type is OpenMesh::Vec3f.
typedef Vec3f	Point
	The default coordinate type is OpenMesh::Vec3f.
typedef float	TexCoord1D
	The default 1D texture coordinate type is float.
typedef Vec2f	TexCoord2D
	The default 2D texture coordinate type is OpenMesh::Vec2f.
typedef Vec3f	TexCoord3D
	The default 3D texture coordinate type is OpenMesh::Vec3f.
typedef int	TextureIndex
	The default texture index type.
Public Member Functions
	EdgeAttributes (0)
	FaceAttributes (0)
	HalfedgeAttributes (Attributes::PrevHalfedge)
	VertexAttributes (0)

---

Detailed Description

Base class for all traits. All user traits should be derived from this class. You may enrich all basic items by additional properties or define one or more of the types Point, Normal, TexCoord, or Color.

See also:

The Mesh docu section on mesh_type.

Traits.hh for a list of macros for traits classes.

Definition at line 119 of file Core/Mesh/Traits.hh.

---

Member Typedef Documentation

typedef Vec3uc OpenMesh::DefaultTraits::Color

The default color type is OpenMesh::Vec3uc.

Reimplemented in OpenMesh::Kernel_OSG::Traits.

Definition at line 138 of file Core/Mesh/Traits.hh.

typedef Vec3f OpenMesh::DefaultTraits::Normal

The default normal type is OpenMesh::Vec3f.

Reimplemented in OpenMesh::Kernel_OSG::Traits.

Definition at line 125 of file Core/Mesh/Traits.hh.

typedef Vec3f OpenMesh::DefaultTraits::Point

The default coordinate type is OpenMesh::Vec3f.

Reimplemented in OpenMesh::Kernel_OSG::Traits.

Definition at line 122 of file Core/Mesh/Traits.hh.

typedef float OpenMesh::DefaultTraits::TexCoord1D

The default 1D texture coordinate type is float.

Definition at line 128 of file Core/Mesh/Traits.hh.

typedef Vec2f OpenMesh::DefaultTraits::TexCoord2D

The default 2D texture coordinate type is OpenMesh::Vec2f.

Definition at line 130 of file Core/Mesh/Traits.hh.

typedef Vec3f OpenMesh::DefaultTraits::TexCoord3D

The default 3D texture coordinate type is OpenMesh::Vec3f.

Definition at line 132 of file Core/Mesh/Traits.hh.

typedef int OpenMesh::DefaultTraits::TextureIndex

The default texture index type.

Definition at line 135 of file Core/Mesh/Traits.hh.

---

Member Function Documentation

OpenMesh::DefaultTraits::EdgeAttributes

(

0

)

OpenMesh::DefaultTraits::FaceAttributes

(

0

)

OpenMesh::DefaultTraits::HalfedgeAttributes

(

Attributes::PrevHalfedge

)

OpenMesh::DefaultTraits::VertexAttributes

(

0

)

---

The documentation for this class was generated from the following file:

• Core/Mesh/Traits.hh
