OpenMesh::Smoother::SmootherT< Mesh > Class Template Reference

#include <SmootherT.hh>

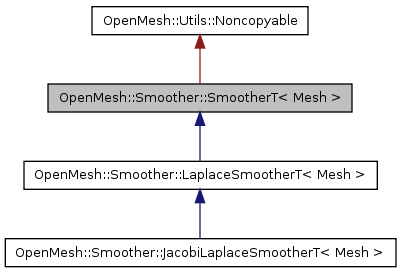

Inheritance diagram for OpenMesh::Smoother::SmootherT< Mesh >:

[legend]

List of all members.

Public Types
enum	Component { Tangential, Normal, Tangential_and_Normal }
enum	Continuity { C0, C1, C2 }
typedef Mesh::EdgeHandle	EdgeHandle
typedef Mesh::Normal	NormalType
typedef Mesh::Point	Point
typedef Mesh::Scalar	Scalar
typedef Mesh::VertexHandle	VertexHandle
Public Member Functions
void	initialize (Component _comp, Continuity _cont)
void	set_active_vertices ()
	Find active vertices. Resets tagged status !
void	skip_features (bool _state)
	enable or disable feature handling
virtual void	smooth (unsigned int _n)
	Do _n smoothing iterations.
	SmootherT (Mesh &_mesh)
	constructor & destructor
virtual	~SmootherT ()
void	disable_local_error_check ()
void	set_absolute_local_error (Scalar _err)
void	set_relative_local_error (Scalar _err)
	Set local error.
Protected Member Functions
Component	component () const
virtual void	compute_new_positions_C0 ()=0
virtual void	compute_new_positions_C1 ()=0
Continuity	continuity () const
bool	is_active (VertexHandle _vh) const
const Point &	new_position (VertexHandle _vh) const
const NormalType &	orig_normal (VertexHandle _vh) const
const Point &	orig_position (VertexHandle _vh) const
void	set_new_position (VertexHandle _vh, const Point &_p)
Protected Attributes
Mesh &	mesh_
bool	skip_features_
Private Member Functions
void	compute_new_positions ()
void	local_error_check ()
void	move_points ()
void	project_to_tangent_plane ()
Private Attributes
Component	component_
Continuity	continuity_
OpenMesh::VPropHandleT< bool >	is_active_
OpenMesh::VPropHandleT< Point >	new_positions_
Scalar	normal_deviation_
OpenMesh::VPropHandleT < NormalType >	original_normals_
OpenMesh::VPropHandleT< Point >	original_positions_
Scalar	tolerance_

---

Detailed Description

template<class Mesh>
class OpenMesh::Smoother::SmootherT< Mesh >

Base class for smoothing algorithms.

Definition at line 74 of file SmootherT.hh.

---

Member Typedef Documentation

template<class Mesh>

typedef Mesh::EdgeHandle OpenMesh::Smoother::SmootherT< Mesh >::EdgeHandle

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 82 of file SmootherT.hh.

template<class Mesh>

typedef Mesh::Normal OpenMesh::Smoother::SmootherT< Mesh >::NormalType

Definition at line 80 of file SmootherT.hh.

template<class Mesh>

typedef Mesh::Point OpenMesh::Smoother::SmootherT< Mesh >::Point

Definition at line 79 of file SmootherT.hh.

template<class Mesh>

typedef Mesh::Scalar OpenMesh::Smoother::SmootherT< Mesh >::Scalar

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 78 of file SmootherT.hh.

template<class Mesh>

typedef Mesh::VertexHandle OpenMesh::Smoother::SmootherT< Mesh >::VertexHandle

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 81 of file SmootherT.hh.

---

Member Enumeration Documentation

template<class Mesh>

enum OpenMesh::Smoother::SmootherT::Component

Enumerator:

Tangential	Smooth tangential direction.
Normal	Smooth normal direction.
Tangential_and_Normal	Smooth tangential and normal direction.

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 85 of file SmootherT.hh.

template<class Mesh>

enum OpenMesh::Smoother::SmootherT::Continuity

Enumerator:

C0
C1
C2

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 91 of file SmootherT.hh.

---

Constructor & Destructor Documentation

template<class Mesh >

OpenMesh::Smoother::SmootherT< Mesh >::SmootherT

(

Mesh &

_mesh

)

[inline]

constructor & destructor

Parameters:

_mesh

Reference to the mesh

Definition at line 71 of file SmootherT.cc.

template<class Mesh >

OpenMesh::Smoother::SmootherT< Mesh >::~SmootherT

(

)

[inline, virtual]

Definition at line 99 of file SmootherT.cc.

---

Member Function Documentation

template<class Mesh>

Component OpenMesh::Smoother::SmootherT< Mesh >::component

(

)

const [inline, protected]

Definition at line 176 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::compute_new_positions

(

)

[inline, private]

Definition at line 328 of file SmootherT.cc.

template<class Mesh>

virtual void OpenMesh::Smoother::SmootherT< Mesh >::compute_new_positions_C0

(

)

[protected, pure virtual]

Implemented in OpenMesh::Smoother::JacobiLaplaceSmootherT< Mesh >.

template<class Mesh>

virtual void OpenMesh::Smoother::SmootherT< Mesh >::compute_new_positions_C1

(

)

[protected, pure virtual]

Implemented in OpenMesh::Smoother::JacobiLaplaceSmootherT< Mesh >.

template<class Mesh>

Continuity OpenMesh::Smoother::SmootherT< Mesh >::continuity

(

)

const [inline, protected]

Definition at line 177 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::disable_local_error_check

(

)

[inline]

Definition at line 289 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::initialize	(	Component	_comp,
		Continuity	_cont
	)			[inline]

Initialize smoother

Parameters:

	_comp	Determine component to smooth
	_cont	Determine Continuity

Reimplemented in OpenMesh::Smoother::LaplaceSmootherT< Mesh >.

Definition at line 120 of file SmootherT.cc.

template<class Mesh>

bool OpenMesh::Smoother::SmootherT< Mesh >::is_active

(

VertexHandle

_vh

)

const [inline, protected]

Definition at line 173 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::local_error_check

(

)

[inline, private]

Definition at line 382 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::move_points

(

)

[inline, private]

Definition at line 416 of file SmootherT.cc.

template<class Mesh>

const Point& OpenMesh::Smoother::SmootherT< Mesh >::new_position

(

VertexHandle

_vh

)

const [inline, protected]

Definition at line 167 of file SmootherT.hh.

template<class Mesh>

const NormalType& OpenMesh::Smoother::SmootherT< Mesh >::orig_normal

(

VertexHandle

_vh

)

const [inline, protected]

Definition at line 164 of file SmootherT.hh.

template<class Mesh>

const Point& OpenMesh::Smoother::SmootherT< Mesh >::orig_position

(

VertexHandle

_vh

)

const [inline, protected]

Definition at line 161 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::project_to_tangent_plane

(

)

[inline, private]

Definition at line 352 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_absolute_local_error

(

Scalar

_err

)

[inline]

Definition at line 277 of file SmootherT.cc.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_active_vertices

(

)

[inline]

Find active vertices. Resets tagged status !

Definition at line 150 of file SmootherT.cc.

template<class Mesh>

void OpenMesh::Smoother::SmootherT< Mesh >::set_new_position	(	VertexHandle	_vh,
		const Point &	_p
	)			[inline, protected]

Definition at line 170 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::set_relative_local_error

(

Scalar

_err

)

[inline]

Set local error.

Definition at line 247 of file SmootherT.cc.

template<class Mesh>

void OpenMesh::Smoother::SmootherT< Mesh >::skip_features

(

bool

_state

)

[inline]

enable or disable feature handling

Parameters:

_state

true : If features are selected on the mesh, they will be left unmodified false : Features will be ignored

Definition at line 128 of file SmootherT.hh.

template<class Mesh >

void OpenMesh::Smoother::SmootherT< Mesh >::smooth

(

unsigned int

_n

)

[inline, virtual]

Do _n smoothing iterations.

Reimplemented in OpenMesh::Smoother::JacobiLaplaceSmootherT< Mesh >.

Definition at line 301 of file SmootherT.cc.

---

Member Data Documentation

template<class Mesh>

Component OpenMesh::Smoother::SmootherT< Mesh >::component_ [private]

Definition at line 189 of file SmootherT.hh.

template<class Mesh>

Continuity OpenMesh::Smoother::SmootherT< Mesh >::continuity_ [private]

Definition at line 190 of file SmootherT.hh.

template<class Mesh>

OpenMesh::VPropHandleT<bool> OpenMesh::Smoother::SmootherT< Mesh >::is_active_ [private]

Definition at line 195 of file SmootherT.hh.

template<class Mesh>

Mesh& OpenMesh::Smoother::SmootherT< Mesh >::mesh_ [protected]

Definition at line 181 of file SmootherT.hh.

template<class Mesh>

OpenMesh::VPropHandleT<Point> OpenMesh::Smoother::SmootherT< Mesh >::new_positions_ [private]

Definition at line 194 of file SmootherT.hh.

template<class Mesh>

Scalar OpenMesh::Smoother::SmootherT< Mesh >::normal_deviation_ [private]

Definition at line 188 of file SmootherT.hh.

template<class Mesh>

OpenMesh::VPropHandleT<NormalType> OpenMesh::Smoother::SmootherT< Mesh >::original_normals_ [private]

Definition at line 193 of file SmootherT.hh.

template<class Mesh>

OpenMesh::VPropHandleT<Point> OpenMesh::Smoother::SmootherT< Mesh >::original_positions_ [private]

Definition at line 192 of file SmootherT.hh.

template<class Mesh>

bool OpenMesh::Smoother::SmootherT< Mesh >::skip_features_ [protected]

Definition at line 182 of file SmootherT.hh.

template<class Mesh>

Scalar OpenMesh::Smoother::SmootherT< Mesh >::tolerance_ [private]

Definition at line 187 of file SmootherT.hh.

---

The documentation for this class was generated from the following files:

• SmootherT.hh
• SmootherT.cc
