OpenMesh::Decimater::ModProgMeshT< DecimaterType > Class Template Reference

#include <ModProgMeshT.hh>

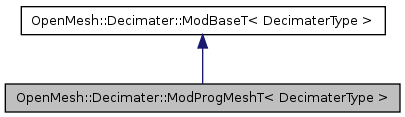

Inheritance diagram for OpenMesh::Decimater::ModProgMeshT< DecimaterType >:

[legend]

List of all members.

Classes
struct	Info
Public Types
typedef std::vector< Info >	InfoList
	Type of the list storing the progressive mesh info Info.
Public Member Functions
	DECIMATING_MODULE (ModProgMeshT, DecimaterType, ProgMesh)
const InfoList &	infolist () const
	Reference to collected information.
bool	is_binary (void) const
	Returns true if criteria returns a binary value.
	ModProgMeshT (DecimaterType &_dec)
	Constructor.
const InfoList &	pmi () const
void	postprocess_collapse (const CollapseInfo &_ci)
bool	write (const std::string &_ofname)
	~ModProgMeshT ()
	Destructor.
Private Member Functions
void	set_binary (bool _b)
	Set whether module is binary or not.
Private Attributes
VPropHandleT< int >	idx_
InfoList	pmi_

---

Detailed Description

template<class DecimaterType>
class OpenMesh::Decimater::ModProgMeshT< DecimaterType >

Collect progressive mesh information while decimating.

The progressive mesh data is stored in an internal structure, which can be evaluated after the decimation process and (!) before calling the garbage collection of the decimated mesh.

Definition at line 78 of file ModProgMeshT.hh.

---

Member Typedef Documentation

template<class DecimaterType >

typedef std::vector<Info> OpenMesh::Decimater::ModProgMeshT< DecimaterType >::InfoList

Type of the list storing the progressive mesh info Info.

Definition at line 103 of file ModProgMeshT.hh.

---

Constructor & Destructor Documentation

template<class DecimaterType >

OpenMesh::Decimater::ModProgMeshT< DecimaterType >::ModProgMeshT

(

DecimaterType &

_dec

)

[inline]

Constructor.

Definition at line 109 of file ModProgMeshT.hh.

template<class DecimaterType >

OpenMesh::Decimater::ModProgMeshT< DecimaterType >::~ModProgMeshT

(

)

[inline]

Destructor.

Definition at line 116 of file ModProgMeshT.hh.

---

Member Function Documentation

template<class DecimaterType >

OpenMesh::Decimater::ModProgMeshT< DecimaterType >::DECIMATING_MODULE	(	ModProgMeshT< DecimaterType >	,
		DecimaterType	,
		ProgMesh
	)

template<class DecimaterType >

const InfoList& OpenMesh::Decimater::ModProgMeshT< DecimaterType >::infolist

(

)

const [inline]

Reference to collected information.

Definition at line 168 of file ModProgMeshT.hh.

template<class DecimaterType >

bool OpenMesh::Decimater::ModProgMeshT< DecimaterType >::is_binary

(

void

)

const [inline]

Returns true if criteria returns a binary value.

Reimplemented from OpenMesh::Decimater::ModBaseT< DecimaterType >.

Definition at line 137 of file ModProgMeshT.hh.

template<class DecimaterType >

const InfoList& OpenMesh::Decimater::ModProgMeshT< DecimaterType >::pmi

(

)

const [inline]

Definition at line 121 of file ModProgMeshT.hh.

template<class DecimaterType >

void OpenMesh::Decimater::ModProgMeshT< DecimaterType >::postprocess_collapse

(

const CollapseInfo &

_ci

)

[inline]

Stores collapse information in a queue.

See also:

infolist()

Definition at line 131 of file ModProgMeshT.hh.

template<class DecimaterType >

void OpenMesh::Decimater::ModProgMeshT< DecimaterType >::set_binary

(

bool

_b

)

[inline, private]

Set whether module is binary or not.

Reimplemented from OpenMesh::Decimater::ModBaseT< DecimaterType >.

Definition at line 173 of file ModProgMeshT.hh.

template<class DecimaterType >

bool OpenMesh::Decimater::ModProgMeshT< DecimaterType >::write

(

const std::string &

_ofname

)

[inline]

Write progressive mesh data to a file in proprietary binary format .pm.

The methods uses the collected data to write a progressive mesh file. It's a binary format with little endian byte ordering:

• The first 8 bytes contain the word "ProgMesh".
• 32-bit int for the number of vertices NV in the base mesh.
• 32-bit int for the number of faces in the base mesh.
• 32-bit int for the number of halfedge collapses (now vertex splits)
• Positions of vertices of the base mesh (32-bit float triplets).
  [x,y,z][x,y,z]...
• Triplets of indices (32-bit int) for each triangle (index in the list of vertices of the base mesh defined by the positions.
  [v0,v1,v2][v0,v1,v2]...
• For each collapse/split a detail information package made of 3 32-bit floats for the positions of vertex v0, and 3 32-bit int indices for v1, vl, and vr. The index for vl or vr might be -1, if the face on this side of the edge does not exists.

Remarks:

Write file before calling the garbage collection of the mesh.

Parameters:

_ofname

Name of the file, where to write the progressive mesh

Returns:

true on success of the operation, else false.

Definition at line 75 of file ModProgMeshT.cc.

---

Member Data Documentation

template<class DecimaterType >

VPropHandleT<int> OpenMesh::Decimater::ModProgMeshT< DecimaterType >::idx_ [private]

Definition at line 176 of file ModProgMeshT.hh.

template<class DecimaterType >

InfoList OpenMesh::Decimater::ModProgMeshT< DecimaterType >::pmi_ [private]

Definition at line 175 of file ModProgMeshT.hh.

---

The documentation for this class was generated from the following files:

• ModProgMeshT.hh
• ModProgMeshT.cc
