ModBaseT.hh File Reference

#include <OpenMesh/Core/Utils/Noncopyable.hh>
#include <OpenMesh/Tools/Decimater/CollapseInfoT.hh>
#include <string>

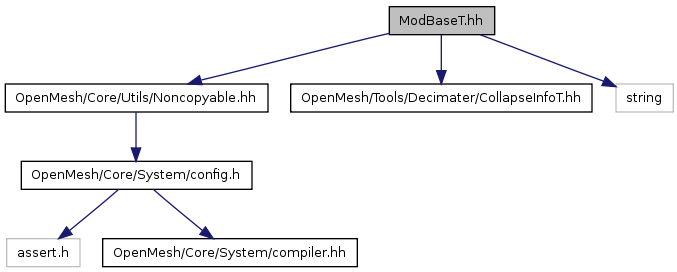

Include dependency graph for ModBaseT.hh:

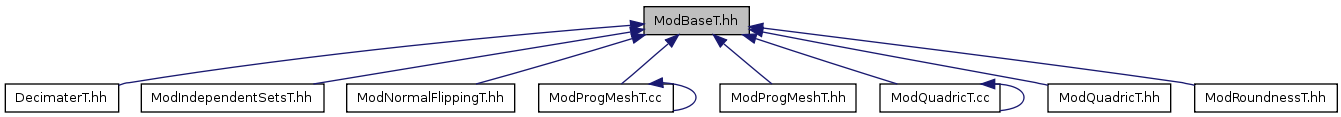

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	OpenMesh::Decimater::ModBaseT< DecimaterType >
class	OpenMesh::Decimater::ModHandleT< Module >
Namespaces
namespace	OpenMesh
namespace	OpenMesh::Decimater
Defines
#define	DECIMATER_MODNAME(_mod_name)
#define	DECIMATING_MODULE(Classname, DecimaterT, Name)

---

Detailed Description

Base class for all decimation modules.

Definition in file ModBaseT.hh.

---

Define Documentation

#define DECIMATER_MODNAME

(

_mod_name

)

Value:

virtual const std::string& name() const { \
  static std::string _s_modname_(#_mod_name); return _s_modname_; \
}

Macro that sets up the name() function

Definition at line 127 of file ModBaseT.hh.

#define DECIMATING_MODULE	(	Classname,
		DecimaterT,
		Name		)

Value:

typedef Classname < DecimaterT >    Self;               \
  typedef OpenMesh::Decimater::ModHandleT< Self >     Handle; \
  typedef OpenMesh::Decimater::ModBaseT< DecimaterT > Base;   \
  typedef typename Base::Mesh         Mesh;             \
  typedef typename Base::CollapseInfo CollapseInfo;     \
  DECIMATER_MODNAME( Name )

Convenience macro, to be used in derived modules The macro defines the types

• Handle, type of the module's handle.
• Base, type of ModBaseT<>.
• Mesh, type of the associated mesh passed by the decimater type.
• CollapseInfo, to your convenience and uses DECIMATER_MODNAME() to define the name of the module.

Parameters:

	Classname	The name of the derived class.
	DecimaterT	Pass here the decimater type, which is the template parameter passed to ModBaseT.
	Name	Give the module a name.

Definition at line 146 of file ModBaseT.hh.
