#include "lanelet2_core/geometry/Polygon.h"#include "lanelet2_core/primitives/Area.h"#include "lanelet2_core/primitives/Lanelet.h"#include "impl/Area.h"

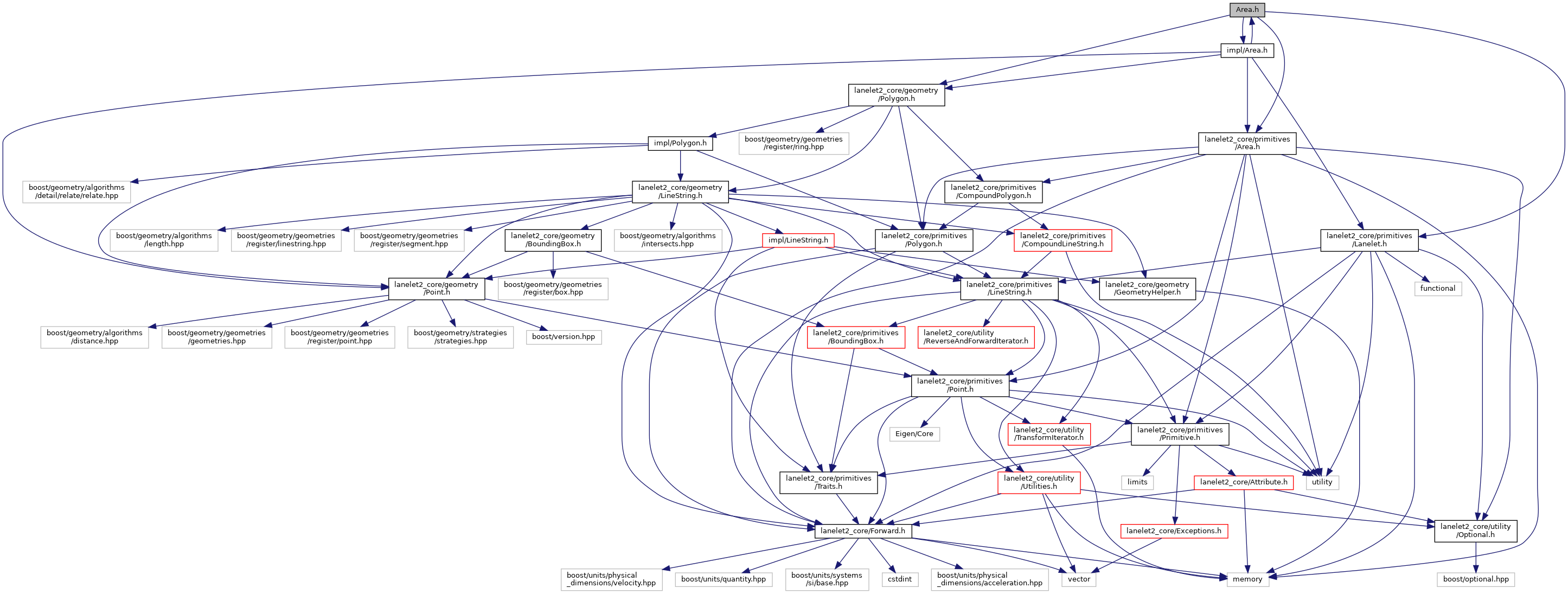

Include dependency graph for geometry/Area.h:

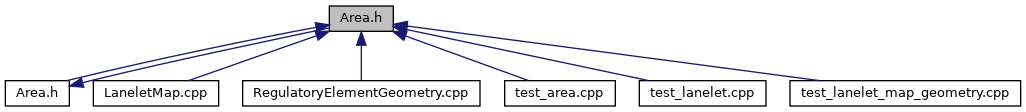

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Namespaces | |
| lanelet | |
| lanelet::geometry | |
Functions | |
| bool | lanelet::geometry::adjacent (const ConstArea &area1, const ConstArea &area2) |
| Test if two areas are adjacent. More... | |
| template<typename AreaT > | |
| IfAr< AreaT, BoundingBox2d > | lanelet::geometry::boundingBox2d (const AreaT &area) |
| calculates an up-right 2d bounding box More... | |
| template<typename AreaT > | |
| IfAr< AreaT, BoundingBox3d > | lanelet::geometry::boundingBox3d (const AreaT &area) |
| calculates 3d bounding box More... | |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLine (const ConstArea &ar, const ConstLanelet &ll) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLine (const ConstArea &ar1, const ConstArea &ar2) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineFollowing (const ConstArea &ar, const ConstLanelet &ll) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineFollowingOrPreceding (const ConstArea &ar, const ConstLanelet &ll) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineLeft (const ConstLanelet &right, const ConstArea &left) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLinePreceding (const ConstLanelet &ll, const ConstArea &ar) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineRight (const ConstLanelet &left, const ConstArea &right) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineSideways (const ConstArea &ar, const ConstLanelet &ll) |
| Optional< ConstLineString3d > | lanelet::geometry::determineCommonLineSideways (const ConstLanelet &ll, const ConstArea &ar) |
| bool | lanelet::geometry::follows (const ConstArea &prev, const ConstLanelet &next) |
| Test whether lanelet follows area. More... | |
| bool | lanelet::geometry::follows (const ConstLanelet &prev, const ConstArea &next) |
| Test whether area follows lanelet. More... | |
| template<typename AreaT > | |
| IfAr< AreaT, bool > | lanelet::geometry::inside (const AreaT &area, const BasicPoint2d &point) |
| Checks whether a point is within or at the border of a area. More... | |
| template<typename Area1T , typename Area2T > | |
| IfAr< Area1T, bool > | lanelet::geometry::intersects2d (const Area1T &area, const Area2T &otherArea) |
| test whether two areas intersect in 2d. More... | |
| bool | lanelet::geometry::leftOf (const ConstLanelet &right, const ConstArea &left) |
| Test whether area is left of lanelet. More... | |
| template<typename AreaT > | |
| IfAr< AreaT, bool > | lanelet::geometry::overlaps2d (const AreaT &area, const AreaT &otherArea) |
| template<typename AreaT , typename LaneletT > | |
| IfAr< AreaT, IfLL< LaneletT, bool > > | lanelet::geometry::overlaps2d (const AreaT &area, const LaneletT &lanelet) |
| template<typename AreaT > | |
| IfAr< AreaT, bool > | lanelet::geometry::overlaps3d (const AreaT &area, const AreaT &otherArea, double heightTolerance) |
| template<typename AreaT , typename LaneletT > | |
| IfAr< AreaT, IfLL< LaneletT, bool > > | lanelet::geometry::overlaps3d (const AreaT &area, const LaneletT &lanelet, double heightTolerance) |
| bool | lanelet::geometry::rightOf (const ConstLanelet &left, const ConstArea &area) |
| Test whether area is right of lanelet. More... | |
