component/icm.h File Reference

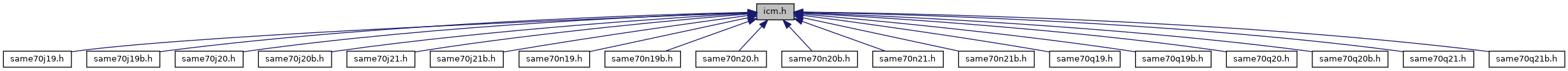

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  Icm
 Icm hardware registers. More...


Macros

#define ICM_ADDRSIZE_ADDRSIZE_Msk   (0xffffu << ICM_ADDRSIZE_ADDRSIZE_Pos)
 (ICM_ADDRSIZE) Peripheral Bus Address Area Size More...

#define ICM_ADDRSIZE_ADDRSIZE_Pos   0

#define ICM_CFG_ASCD   (0x1u << 8)
 (ICM_CFG) Automatic Switch To Compare Digest More...

#define ICM_CFG_BBC(value)   ((ICM_CFG_BBC_Msk & ((value) << ICM_CFG_BBC_Pos)))

#define ICM_CFG_BBC_Msk   (0xfu << ICM_CFG_BBC_Pos)
 (ICM_CFG) Bus Burden Control More...

#define ICM_CFG_BBC_Pos   4

#define ICM_CFG_DAPROT(value)   ((ICM_CFG_DAPROT_Msk & ((value) << ICM_CFG_DAPROT_Pos)))

#define ICM_CFG_DAPROT_Msk   (0x3fu << ICM_CFG_DAPROT_Pos)
 (ICM_CFG) Region Descriptor Area Protection More...

#define ICM_CFG_DAPROT_Pos   24

#define ICM_CFG_DUALBUFF   (0x1u << 9)
 (ICM_CFG) Dual Input Buffer More...

#define ICM_CFG_EOMDIS   (0x1u << 1)
 (ICM_CFG) End of Monitoring Disable More...

#define ICM_CFG_HAPROT(value)   ((ICM_CFG_HAPROT_Msk & ((value) << ICM_CFG_HAPROT_Pos)))

#define ICM_CFG_HAPROT_Msk   (0x3fu << ICM_CFG_HAPROT_Pos)
 (ICM_CFG) Region Hash Area Protection More...

#define ICM_CFG_HAPROT_Pos   16

#define ICM_CFG_SLBDIS   (0x1u << 2)
 (ICM_CFG) Secondary List Branching Disable More...

#define ICM_CFG_UALGO(value)   ((ICM_CFG_UALGO_Msk & ((value) << ICM_CFG_UALGO_Pos)))

#define ICM_CFG_UALGO_Msk   (0x7u << ICM_CFG_UALGO_Pos)
 (ICM_CFG) User SHA Algorithm More...

#define ICM_CFG_UALGO_Pos   13

#define ICM_CFG_UALGO_SHA1   (0x0u << 13)
 (ICM_CFG) SHA1 algorithm processed More...

#define ICM_CFG_UALGO_SHA224   (0x4u << 13)
 (ICM_CFG) SHA224 algorithm processed More...

#define ICM_CFG_UALGO_SHA256   (0x1u << 13)
 (ICM_CFG) SHA256 algorithm processed More...

#define ICM_CFG_UIHASH   (0x1u << 12)
 (ICM_CFG) User Initial Hash Value More...

#define ICM_CFG_WBDIS   (0x1u << 0)
 (ICM_CFG) Write Back Disable More...

#define ICM_CTRL_DISABLE   (0x1u << 1)
 (ICM_CTRL) ICM Disable Register More...

#define ICM_CTRL_ENABLE   (0x1u << 0)
 (ICM_CTRL) ICM Enable More...

#define ICM_CTRL_REHASH(value)   ((ICM_CTRL_REHASH_Msk & ((value) << ICM_CTRL_REHASH_Pos)))

#define ICM_CTRL_REHASH_Msk   (0xfu << ICM_CTRL_REHASH_Pos)
 (ICM_CTRL) Recompute Internal Hash More...

#define ICM_CTRL_REHASH_Pos   4

#define ICM_CTRL_RMDIS(value)   ((ICM_CTRL_RMDIS_Msk & ((value) << ICM_CTRL_RMDIS_Pos)))

#define ICM_CTRL_RMDIS_Msk   (0xfu << ICM_CTRL_RMDIS_Pos)
 (ICM_CTRL) Region Monitoring Disable More...

#define ICM_CTRL_RMDIS_Pos   8

#define ICM_CTRL_RMEN(value)   ((ICM_CTRL_RMEN_Msk & ((value) << ICM_CTRL_RMEN_Pos)))

#define ICM_CTRL_RMEN_Msk   (0xfu << ICM_CTRL_RMEN_Pos)
 (ICM_CTRL) Region Monitoring Enable More...

#define ICM_CTRL_RMEN_Pos   12

#define ICM_CTRL_SWRST   (0x1u << 2)
 (ICM_CTRL) Software Reset More...

#define ICM_DSCR_DASA(value)   ((ICM_DSCR_DASA_Msk & ((value) << ICM_DSCR_DASA_Pos)))

#define ICM_DSCR_DASA_Msk   (0x3ffffffu << ICM_DSCR_DASA_Pos)
 (ICM_DSCR) Descriptor Area Start Address More...

#define ICM_DSCR_DASA_Pos   6

#define ICM_FEATURES_BTYP   (0x1u << 8)
 (ICM_FEATURES) Bridge Type More...

#define ICM_FEATURES_CFGALGO   (0x1u << 0)
 (ICM_FEATURES) Configurable Algorithms More...

#define ICM_FEATURES_CFGPP   (0x1u << 2)
 (ICM_FEATURES) Configurable Processing Period More...

#define ICM_FEATURES_EF   (0x1u << 6)
 (ICM_FEATURES) Embedded LFSR More...

#define ICM_FEATURES_HDPP   (0x1u << 3)
 (ICM_FEATURES) Hardcoded Processing Period More...

#define ICM_FEATURES_HSHA1   (0x1u << 16)
 (ICM_FEATURES) SHA1 Hardcoded Mode More...

#define ICM_FEATURES_HSHA224   (0x1u << 17)
 (ICM_FEATURES) SHA224 Hardcoded Mode More...

#define ICM_FEATURES_HSHA256   (0x1u << 18)
 (ICM_FEATURES) SHA256 Hardcoded Mode More...

#define ICM_FEATURES_HSHA384   (0x1u << 19)
 (ICM_FEATURES) SHA384 Hardcoded Mode More...

#define ICM_FEATURES_HSHA512   (0x1u << 20)
 (ICM_FEATURES) SHA512 Hardcoded Mode More...

#define ICM_FEATURES_NAIS   (0x1u << 5)
 (ICM_FEATURES) No Access to Intermediate State More...

#define ICM_FEATURES_PDC   (0x1u << 4)
 (ICM_FEATURES) Peripheral DMA Logic More...

#define ICM_FEATURES_PDCOFF0C   (0x1u << 9)
 (ICM_FEATURES) PDC Offset is 0x0C More...

#define ICM_FEATURES_RFU   (0x1u << 1)
 (ICM_FEATURES) Reserved for Future Use More...

#define ICM_FEATURES_SI   (0x1u << 7)
 (ICM_FEATURES) Scan Intrusion More...

#define ICM_HASH_HASA(value)   ((ICM_HASH_HASA_Msk & ((value) << ICM_HASH_HASA_Pos)))

#define ICM_HASH_HASA_Msk   (0x1ffffffu << ICM_HASH_HASA_Pos)
 (ICM_HASH) Hash Area Start Address More...

#define ICM_HASH_HASA_Pos   7

#define ICM_IDR_RBE(value)   ((ICM_IDR_RBE_Msk & ((value) << ICM_IDR_RBE_Pos)))

#define ICM_IDR_RBE_Msk   (0xfu << ICM_IDR_RBE_Pos)
 (ICM_IDR) Region Bus Error Interrupt Disable More...

#define ICM_IDR_RBE_Pos   8

#define ICM_IDR_RDM(value)   ((ICM_IDR_RDM_Msk & ((value) << ICM_IDR_RDM_Pos)))

#define ICM_IDR_RDM_Msk   (0xfu << ICM_IDR_RDM_Pos)
 (ICM_IDR) Region Digest Mismatch Interrupt Disable More...

#define ICM_IDR_RDM_Pos   4

#define ICM_IDR_REC(value)   ((ICM_IDR_REC_Msk & ((value) << ICM_IDR_REC_Pos)))

#define ICM_IDR_REC_Msk   (0xfu << ICM_IDR_REC_Pos)
 (ICM_IDR) Region End bit Condition detected Interrupt Disable More...

#define ICM_IDR_REC_Pos   16

#define ICM_IDR_RHC(value)   ((ICM_IDR_RHC_Msk & ((value) << ICM_IDR_RHC_Pos)))

#define ICM_IDR_RHC_Msk   (0xfu << ICM_IDR_RHC_Pos)
 (ICM_IDR) Region Hash Completed Interrupt Disable More...

#define ICM_IDR_RHC_Pos   0

#define ICM_IDR_RSU(value)   ((ICM_IDR_RSU_Msk & ((value) << ICM_IDR_RSU_Pos)))

#define ICM_IDR_RSU_Msk   (0xfu << ICM_IDR_RSU_Pos)
 (ICM_IDR) Region Status Updated Interrupt Disable More...

#define ICM_IDR_RSU_Pos   20

#define ICM_IDR_RWC(value)   ((ICM_IDR_RWC_Msk & ((value) << ICM_IDR_RWC_Pos)))

#define ICM_IDR_RWC_Msk   (0xfu << ICM_IDR_RWC_Pos)
 (ICM_IDR) Region Wrap Condition Detected Interrupt Disable More...

#define ICM_IDR_RWC_Pos   12

#define ICM_IDR_URAD   (0x1u << 24)
 (ICM_IDR) Undefined Register Access Detection Interrupt Disable More...

#define ICM_IER_RBE(value)   ((ICM_IER_RBE_Msk & ((value) << ICM_IER_RBE_Pos)))

#define ICM_IER_RBE_Msk   (0xfu << ICM_IER_RBE_Pos)
 (ICM_IER) Region Bus Error Interrupt Enable More...

#define ICM_IER_RBE_Pos   8

#define ICM_IER_RDM(value)   ((ICM_IER_RDM_Msk & ((value) << ICM_IER_RDM_Pos)))

#define ICM_IER_RDM_Msk   (0xfu << ICM_IER_RDM_Pos)
 (ICM_IER) Region Digest Mismatch Interrupt Enable More...

#define ICM_IER_RDM_Pos   4

#define ICM_IER_REC(value)   ((ICM_IER_REC_Msk & ((value) << ICM_IER_REC_Pos)))

#define ICM_IER_REC_Msk   (0xfu << ICM_IER_REC_Pos)
 (ICM_IER) Region End bit Condition Detected Interrupt Enable More...

#define ICM_IER_REC_Pos   16

#define ICM_IER_RHC(value)   ((ICM_IER_RHC_Msk & ((value) << ICM_IER_RHC_Pos)))

#define ICM_IER_RHC_Msk   (0xfu << ICM_IER_RHC_Pos)
 (ICM_IER) Region Hash Completed Interrupt Enable More...

#define ICM_IER_RHC_Pos   0

#define ICM_IER_RSU(value)   ((ICM_IER_RSU_Msk & ((value) << ICM_IER_RSU_Pos)))

#define ICM_IER_RSU_Msk   (0xfu << ICM_IER_RSU_Pos)
 (ICM_IER) Region Status Updated Interrupt Disable More...

#define ICM_IER_RSU_Pos   20

#define ICM_IER_RWC(value)   ((ICM_IER_RWC_Msk & ((value) << ICM_IER_RWC_Pos)))

#define ICM_IER_RWC_Msk   (0xfu << ICM_IER_RWC_Pos)
 (ICM_IER) Region Wrap Condition detected Interrupt Enable More...

#define ICM_IER_RWC_Pos   12

#define ICM_IER_URAD   (0x1u << 24)
 (ICM_IER) Undefined Register Access Detection Interrupt Enable More...

#define ICM_IMR_RBE_Msk   (0xfu << ICM_IMR_RBE_Pos)
 (ICM_IMR) Region Bus Error Interrupt Mask More...

#define ICM_IMR_RBE_Pos   8

#define ICM_IMR_RDM_Msk   (0xfu << ICM_IMR_RDM_Pos)
 (ICM_IMR) Region Digest Mismatch Interrupt Mask More...

#define ICM_IMR_RDM_Pos   4

#define ICM_IMR_REC_Msk   (0xfu << ICM_IMR_REC_Pos)
 (ICM_IMR) Region End bit Condition Detected Interrupt Mask More...

#define ICM_IMR_REC_Pos   16

#define ICM_IMR_RHC_Msk   (0xfu << ICM_IMR_RHC_Pos)
 (ICM_IMR) Region Hash Completed Interrupt Mask More...

#define ICM_IMR_RHC_Pos   0

#define ICM_IMR_RSU_Msk   (0xfu << ICM_IMR_RSU_Pos)
 (ICM_IMR) Region Status Updated Interrupt Mask More...

#define ICM_IMR_RSU_Pos   20

#define ICM_IMR_RWC_Msk   (0xfu << ICM_IMR_RWC_Pos)
 (ICM_IMR) Region Wrap Condition Detected Interrupt Mask More...

#define ICM_IMR_RWC_Pos   12

#define ICM_IMR_URAD   (0x1u << 24)
 (ICM_IMR) Undefined Register Access Detection Interrupt Mask More...

#define ICM_IPNAME_IPNAME_Msk   (0xffffffffu << ICM_IPNAME_IPNAME_Pos)
 (ICM_IPNAME[2]) IP Name in ASCII Format More...

#define ICM_IPNAME_IPNAME_Pos   0

#define ICM_ISR_RBE_Msk   (0xfu << ICM_ISR_RBE_Pos)
 (ICM_ISR) Region Bus Error More...

#define ICM_ISR_RBE_Pos   8

#define ICM_ISR_RDM_Msk   (0xfu << ICM_ISR_RDM_Pos)
 (ICM_ISR) Region Digest Mismatch More...

#define ICM_ISR_RDM_Pos   4

#define ICM_ISR_REC_Msk   (0xfu << ICM_ISR_REC_Pos)
 (ICM_ISR) Region End bit Condition Detected More...

#define ICM_ISR_REC_Pos   16

#define ICM_ISR_RHC_Msk   (0xfu << ICM_ISR_RHC_Pos)
 (ICM_ISR) Region Hash Completed More...

#define ICM_ISR_RHC_Pos   0

#define ICM_ISR_RSU_Msk   (0xfu << ICM_ISR_RSU_Pos)
 (ICM_ISR) Region Status Updated Detected More...

#define ICM_ISR_RSU_Pos   20

#define ICM_ISR_RWC_Msk   (0xfu << ICM_ISR_RWC_Pos)
 (ICM_ISR) Region Wrap Condition Detected More...

#define ICM_ISR_RWC_Pos   12

#define ICM_ISR_URAD   (0x1u << 24)
 (ICM_ISR) Undefined Register Access Detection Status More...

#define ICM_SR_ENABLE   (0x1u << 0)
 (ICM_SR) ICM Controller Enable Register More...

#define ICM_SR_RAWRMDIS(value)   ((ICM_SR_RAWRMDIS_Msk & ((value) << ICM_SR_RAWRMDIS_Pos)))

#define ICM_SR_RAWRMDIS_Msk   (0xfu << ICM_SR_RAWRMDIS_Pos)
 (ICM_SR) RAW Region Monitoring Disabled Status More...

#define ICM_SR_RAWRMDIS_Pos   8

#define ICM_SR_RMDIS(value)   ((ICM_SR_RMDIS_Msk & ((value) << ICM_SR_RMDIS_Pos)))

#define ICM_SR_RMDIS_Msk   (0xfu << ICM_SR_RMDIS_Pos)
 (ICM_SR) Region Monitoring Disabled Status More...

#define ICM_SR_RMDIS_Pos   12

#define ICM_UASR_URAT_ICM_CFG_MODIFIED   (0x1u << 0)
 (ICM_UASR) ICM_CFG modified during active monitoring. More...

#define ICM_UASR_URAT_ICM_DSCR_MODIFIED   (0x2u << 0)
 (ICM_UASR) ICM_DSCR modified during active monitoring. More...

#define ICM_UASR_URAT_ICM_HASH_MODIFIED   (0x3u << 0)
 (ICM_UASR) ICM_HASH modified during active monitoring More...

#define ICM_UASR_URAT_Msk   (0x7u << ICM_UASR_URAT_Pos)
 (ICM_UASR) Undefined Register Access Trace More...

#define ICM_UASR_URAT_Pos   0

#define ICM_UASR_URAT_READ_ACCESS   (0x4u << 0)
 (ICM_UASR) Write-only register read access More...

#define ICM_UASR_URAT_UNSPEC_STRUCT_MEMBER   (0x0u << 0)
 (ICM_UASR) Unspecified structure member set to one detected when the descriptor is loaded. More...

#define ICM_UIHVAL_VAL(value)   ((ICM_UIHVAL_VAL_Msk & ((value) << ICM_UIHVAL_VAL_Pos)))

#define ICM_UIHVAL_VAL_Msk   (0xffffffffu << ICM_UIHVAL_VAL_Pos)
 (ICM_UIHVAL[8]) Initial Hash Value More...

#define ICM_UIHVAL_VAL_Pos   0

#define ICM_VERSION_MFN_Msk   (0x7u << ICM_VERSION_MFN_Pos)
 (ICM_VERSION) Metal Fix Number More...

#define ICM_VERSION_MFN_Pos   16

#define ICM_VERSION_VERSION_Msk   (0xfffu << ICM_VERSION_VERSION_Pos)
 (ICM_VERSION) Version of the Hardware Module More...

#define ICM_VERSION_VERSION_Pos   0


Detailed Description

Copyright (c) 2015-2018 Microchip Technology Inc. and its subsidiaries.

Definition in file component/icm.h.
