USBRequests.h File Reference

#include <stdint.h>

Include dependency graph for USBRequests.h:

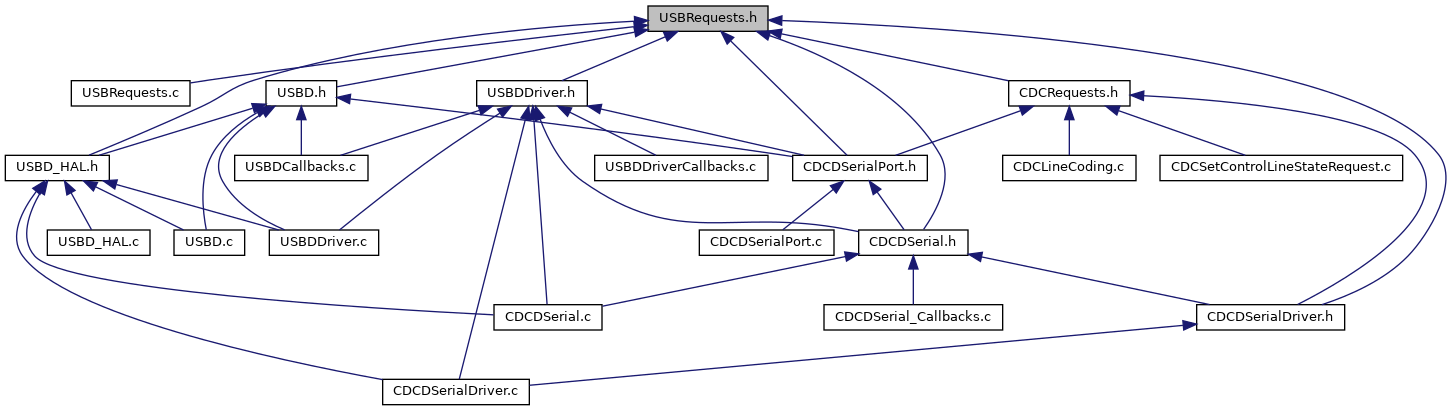

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	USBGenericRequest

Macros
#define	USBFeatureRequest_DEVICEREMOTEWAKEUP   1
#define	USBFeatureRequest_ENDPOINTHALT   0
#define	USBFeatureRequest_OTG   0x0B
#define	USBFeatureRequest_OTG_A_ALT_HNP_SUPPORT   5
#define	USBFeatureRequest_OTG_A_HNP_SUPPORT   4
#define	USBFeatureRequest_OTG_B_HNP_ENABLE   3
#define	USBFeatureRequest_TESTFORCEENABLE   5
#define	USBFeatureRequest_TESTJ   1
#define	USBFeatureRequest_TESTK   2
#define	USBFeatureRequest_TESTMODE   2
#define	USBFeatureRequest_TESTPACKET   4
#define	USBFeatureRequest_TESTSE0NAK   3
#define	USBFeatureRequest_TESTSENDZLP   6
#define	USBGenericRequest_CLASS   1
#define	USBGenericRequest_CLEARFEATURE   1
#define	USBGenericRequest_DEVICE   0
#define	USBGenericRequest_ENDPOINT   2
#define	USBGenericRequest_GETCONFIGURATION   8
#define	USBGenericRequest_GETDESCRIPTOR   6
#define	USBGenericRequest_GETINTERFACE   10
#define	USBGenericRequest_GETSTATUS   0
#define	USBGenericRequest_IN   1
#define	USBGenericRequest_INTERFACE   1
#define	USBGenericRequest_OTHER   3
#define	USBGenericRequest_OUT   0
#define	USBGenericRequest_SETADDRESS   5
#define	USBGenericRequest_SETCONFIGURATION   9
#define	USBGenericRequest_SETDESCRIPTOR   7
#define	USBGenericRequest_SETFEATURE   3
#define	USBGenericRequest_SETINTERFACE   11
#define	USBGenericRequest_STANDARD   0
#define	USBGenericRequest_SYNCHFRAME   12
#define	USBGenericRequest_VENDOR   2

Typedefs
typedef uint8_t	USBHS_Add_t
typedef uint8_t	USBHS_Ep_t

Functions
uint8_t	USBFeatureRequest_GetFeatureSelector (const USBGenericRequest *request)
uint8_t	USBFeatureRequest_GetTestSelector (const USBGenericRequest *request)
uint8_t	USBGenericRequest_GetDirection (const USBGenericRequest *request)
uint8_t	USBGenericRequest_GetEndpointNumber (const USBGenericRequest *request)
uint16_t	USBGenericRequest_GetIndex (const USBGenericRequest *request)
uint16_t	USBGenericRequest_GetLength (const USBGenericRequest *request)
uint8_t	USBGenericRequest_GetRecipient (const USBGenericRequest *request)
uint8_t	USBGenericRequest_GetRequest (const USBGenericRequest *request)
uint8_t	USBGenericRequest_GetType (const USBGenericRequest *request)
uint16_t	USBGenericRequest_GetValue (const USBGenericRequest *request)
uint8_t	USBGetDescriptorRequest_GetDescriptorIndex (const USBGenericRequest *request)
uint8_t	USBGetDescriptorRequest_GetDescriptorType (const USBGenericRequest *request)
uint8_t	USBInterfaceRequest_GetAlternateSetting (const USBGenericRequest *request)
uint8_t	USBInterfaceRequest_GetInterface (const USBGenericRequest *request)
uint8_t	USBSetAddressRequest_GetAddress (const USBGenericRequest *request)
uint8_t	USBSetConfigurationRequest_GetConfiguration (const USBGenericRequest *request)

Detailed Description

Purpose

Definitions and methods for USB request structures described by the USB specification.

Usage

Definition in file USBRequests.h.
