usbd_dfu_core.c File Reference

This file provides the high layer firmware functions to manage the following functionalities of the USB DFU Class: More...

#include "usbd_dfu_core.h"
#include "usbd_desc.h"
#include "usbd_req.h"
#include "usb_bsp.h"

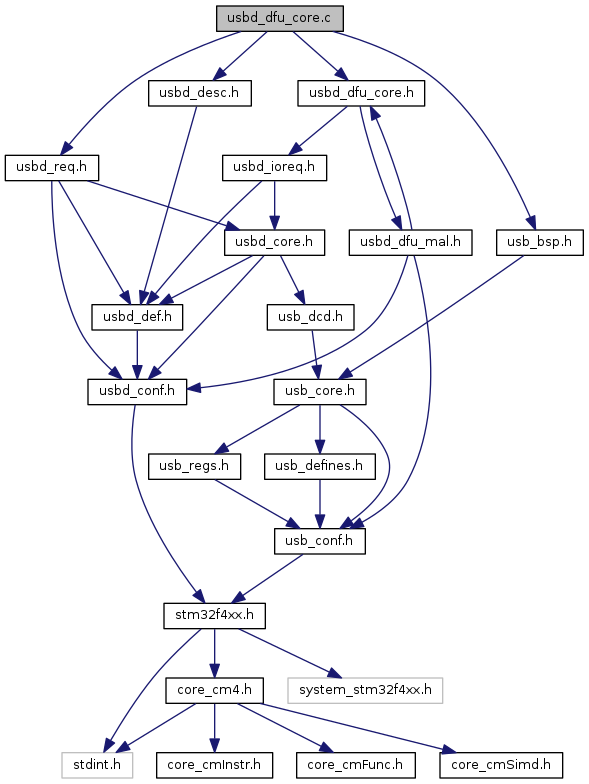

Include dependency graph for usbd_dfu_core.c:

Go to the source code of this file.

Functions
static void	DFU_LeaveDFUMode (void *pdev)
	DFU_LeaveDFUMode Handles the sub-protocol DFU leave DFU mode request (leaves DFU mode and resets device to jump to user loaded code). More...
static void	DFU_Req_ABORT (void *pdev)
	DFU_Req_ABORT Handles the DFU ABORT request. More...
static void	DFU_Req_CLRSTATUS (void *pdev)
	DFU_Req_CLRSTATUS Handles the DFU CLRSTATUS request. More...
static void	DFU_Req_DETACH (void *pdev, USB_SETUP_REQ *req)
	DFU_Req_DETACH Handles the DFU DETACH request. More...
static void	DFU_Req_DNLOAD (void *pdev, USB_SETUP_REQ *req)
	DFU_Req_DNLOAD Handles the DFU DNLOAD request. More...
static void	DFU_Req_GETSTATE (void *pdev)
	DFU_Req_GETSTATE Handles the DFU GETSTATE request. More...
static void	DFU_Req_GETSTATUS (void *pdev)
	DFU_Req_GETSTATUS Handles the DFU GETSTATUS request. More...
static void	DFU_Req_UPLOAD (void *pdev, USB_SETUP_REQ *req)
	DFU_Req_UPLOAD Handles the DFU UPLOAD request. More...
static uint8_t	EP0_RxReady (void *pdev)
	EP0_RxReady Handles the DFU control endpoint data OUT stage. More...
static uint8_t	EP0_TxSent (void *pdev)
	EP0_TxSent Handles the DFU control endpoint data IN stage. More...
static uint8_t	usbd_dfu_DeInit (void *pdev, uint8_t cfgidx)
	usbd_dfu_Init De-initializes the DFU layer. More...
static uint8_t *	USBD_DFU_GetCfgDesc (uint8_t speed, uint16_t *length)
	USBD_DFU_GetCfgDesc Returns configuration descriptor. More...
static uint8_t *	USBD_DFU_GetUsrStringDesc (uint8_t speed, uint8_t index, uint16_t *length)
	USBD_DFU_GetUsrStringDesc Manages the transfer of memory interfaces string descriptors. More...
static uint8_t	usbd_dfu_Init (void *pdev, uint8_t cfgidx)
	usbd_dfu_Init Initializes the DFU interface. More...
static uint8_t	usbd_dfu_Setup (void *pdev, USB_SETUP_REQ *req)
	usbd_dfu_Setup Handles the DFU request parsing. More...

Variables
__ALIGN_BEGIN uint8_t usbd_dfu_CfgDesc[USB_DFU_CONFIG_DESC_SIZ]	__ALIGN_END
uint8_t	DeviceState
uint8_t	DeviceStatus [6]
USBD_Class_cb_TypeDef	DFU_cb
uint8_t	MAL_Buffer []
uint32_t	Manifest_State = Manifest_complete
static uint32_t	Pointer = APP_DEFAULT_ADD
static __IO uint32_t	usbd_dfu_AltSet = 0
const uint8_t *	usbd_dfu_StringDesc []
static uint32_t	wBlockNum = 0
static uint32_t	wlength = 0

Detailed Description

This file provides the high layer firmware functions to manage the following functionalities of the USB DFU Class:

Author

MCD Application Team

Version

V1.1.0

Date

19-March-2012

• Initialization and Configuration of high and low layer
• Enumeration as DFU Device (and enumeration for each implemented memory interface)
• Transfers to/from memory interfaces
• Easy-to-customize "plug-in-like" modules for adding/removing memory interfaces.
• Error management

*
*          ===================================================================
*                                DFU Class Driver Description
*          ===================================================================
*           This driver manages the DFU class V1.1 following the "Device Class Specification for
*           Device Firmware Upgrade Version 1.1 Aug 5, 2004".
*           This driver implements the following aspects of the specification:
*             - Device descriptor management
*             - Configuration descriptor management
*             - Enumeration as DFU device (in DFU mode only)
*             - Requests management (supporting ST DFU sub-protocol)
*             - Memory operations management (Download/Upload/Erase/Detach/GetState/GetStatus)
*             - DFU state machine implementation.
*
*           @note
*            ST DFU sub-protocol is compliant with DFU protocol and use sub-requests to manage
*            memory addressing, commands processing, specific memories operations (ie. Erase) ...
*            As required by the DFU specification, only endpoint 0 is used in this application.
*            Other endpoints and functions may be added to the application (ie. DFU ...)
*
*           These aspects may be enriched or modified for a specific user application.
*
*           This driver doesn't implement the following aspects of the specification
*           (but it is possible to manage these features with some modifications on this driver):
*             - Manifestation Tolerant mode
*
*

Attention

© COPYRIGHT 2012 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file usbd_dfu_core.c.
