usbd_desc.h File Reference

header file for the usbd_desc.c file More...

#include "usbd_def.h"

Include dependency graph for usbd_desc.h:

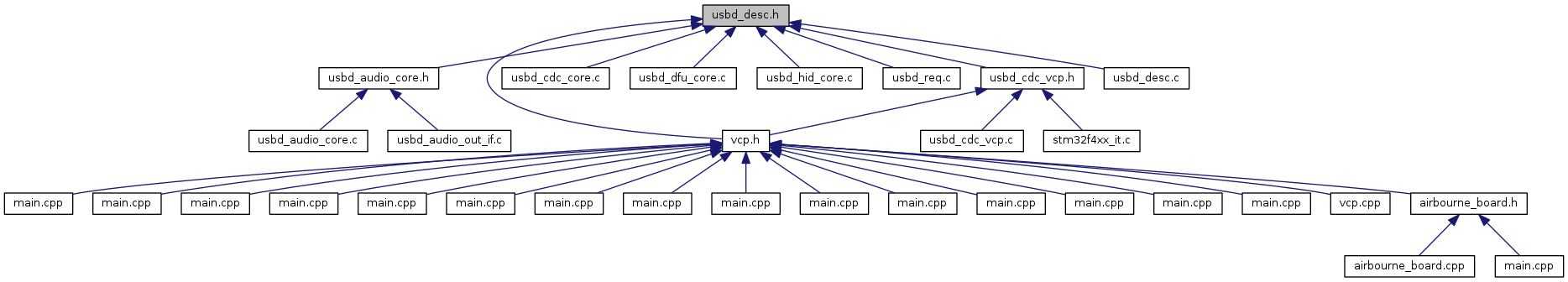

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	USB_CONFIGURATION_DESCRIPTOR_TYPE   0x02
#define	USB_DEVICE_DESCRIPTOR_TYPE   0x01
#define	USB_ENDPOINT_DESCRIPTOR_TYPE   0x05
#define	USB_INTERFACE_DESCRIPTOR_TYPE   0x04
#define	USB_SIZ_DEVICE_DESC   18
#define	USB_SIZ_STRING_LANGID   4
#define	USB_STRING_DESCRIPTOR_TYPE   0x03

Functions
uint8_t *	USBD_MSC_ConfigStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_DeviceDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_InterfaceStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_LangIDStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_ManufacturerStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_ProductStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_MSC_SerialStrDescriptor (uint8_t speed, uint16_t *length)
uint8_t *	USBD_USR_ConfigStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_ConfigStrDescriptor return the configuration string descriptor. More...
uint8_t *	USBD_USR_DeviceDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_DeviceDescriptor return the device descriptor. More...
uint8_t *	USBD_USR_InterfaceStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_InterfaceStrDescriptor return the interface string descriptor. More...
uint8_t *	USBD_USR_LangIDStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_LangIDStrDescriptor return the LangID string descriptor. More...
uint8_t *	USBD_USR_ManufacturerStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_ManufacturerStrDescriptor return the manufacturer string descriptor. More...
uint8_t *	USBD_USR_ProductStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_ProductStrDescriptor return the product string descriptor. More...
uint8_t *	USBD_USR_SerialStrDescriptor (uint8_t speed, uint16_t *length)
	USBD_USR_SerialStrDescriptor return the serial number string descriptor. More...

Variables
USBD_DEVICE	MSC_desc
uint8_t	USBD_DeviceDesc [USB_SIZ_DEVICE_DESC]
uint8_t	USBD_DeviceDesc_MSC [USB_SIZ_DEVICE_DESC]
uint8_t	USBD_DeviceQualifierDesc [USB_LEN_DEV_QUALIFIER_DESC]
uint8_t	USBD_DeviceQualifierDesc_MSC [USB_LEN_DEV_QUALIFIER_DESC]
uint8_t	USBD_LangIDDesc [USB_SIZ_STRING_LANGID]
uint8_t	USBD_LangIDDesc_MSC [USB_SIZ_STRING_LANGID]
uint8_t	USBD_OtherSpeedCfgDesc [USB_LEN_CFG_DESC]
uint8_t	USBD_OtherSpeedCfgDesc_MSC [USB_LEN_CFG_DESC]
uint8_t	USBD_StrDesc [USB_MAX_STR_DESC_SIZ]
uint8_t	USBD_StrDesc_MSC [USB_MAX_STR_DESC_SIZ]
USBD_DEVICE	USR_desc

Detailed Description

header file for the usbd_desc.c file

Author

MCD Application Team

Version

V1.0.0

Date

19-September-2011

Attention

THE PRESENT FIRMWARE WHICH IS FOR GUIDANCE ONLY AIMS AT PROVIDING CUSTOMERS WITH CODING INFORMATION REGARDING THEIR PRODUCTS IN ORDER FOR THEM TO SAVE TIME. AS A RESULT, STMICROELECTRONICS SHALL NOT BE HELD LIABLE FOR ANY DIRECT, INDIRECT OR CONSEQUENTIAL DAMAGES WITH RESPECT TO ANY CLAIMS ARISING FROM THE CONTENT OF SUCH FIRMWARE AND/OR THE USE MADE BY CUSTOMERS OF THE CODING INFORMATION CONTAINED HEREIN IN CONNECTION WITH THEIR PRODUCTS.

© COPYRIGHT 2011 STMicroelectronics

Definition in file usbd_desc.h.
