usbd_def.h File Reference

general defines for the usb device library More...

#include "usbd_conf.h"

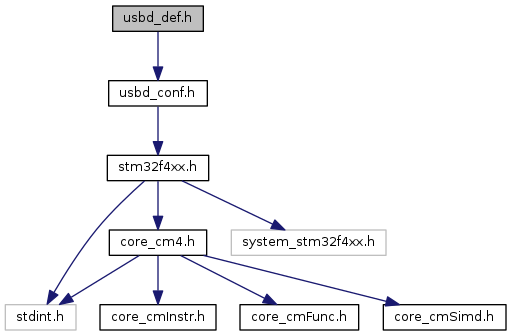

Include dependency graph for usbd_def.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define HIBYTE(x)   ((uint8_t)(((x) & 0xFF00) >>8))

#define LOBYTE(x)   ((uint8_t)((x) & 0x00FF))

#define NULL   0

#define SWAPBYTE(addr)

#define USB_CONFIG_REMOTE_WAKEUP   2

#define USB_CONFIG_SELF_POWERED   1

#define USB_DESC_TYPE_BOS   0x0F

#define USB_DESC_TYPE_CONFIGURATION   2

#define USB_DESC_TYPE_DEVICE   1

#define USB_DESC_TYPE_DEVICE_QUALIFIER   6

#define USB_DESC_TYPE_ENDPOINT   5

#define USB_DESC_TYPE_INTERFACE   4

#define USB_DESC_TYPE_OTHER_SPEED_CONFIGURATION   7

#define USB_DESC_TYPE_STRING   3

#define USB_FEATURE_EP_HALT   0

#define USB_FEATURE_REMOTE_WAKEUP   1

#define USB_FEATURE_TEST_MODE   2

#define USB_LEN_CFG_DESC   0x09

#define USB_LEN_DEV_DESC   0x12

#define USB_LEN_DEV_QUALIFIER_DESC   0x0A

#define USB_LEN_EP_DESC   0x07

#define USB_LEN_IF_DESC   0x09

#define USB_LEN_OTG_DESC   0x03

#define USB_REQ_CLEAR_FEATURE   0x01

#define USB_REQ_GET_CONFIGURATION   0x08

#define USB_REQ_GET_DESCRIPTOR   0x06

#define USB_REQ_GET_INTERFACE   0x0A

#define USB_REQ_GET_STATUS   0x00

#define USB_REQ_RECIPIENT_DEVICE   0x00

#define USB_REQ_RECIPIENT_ENDPOINT   0x02

#define USB_REQ_RECIPIENT_INTERFACE   0x01

#define USB_REQ_RECIPIENT_MASK   0x03

#define USB_REQ_SET_ADDRESS   0x05

#define USB_REQ_SET_CONFIGURATION   0x09

#define USB_REQ_SET_DESCRIPTOR   0x07

#define USB_REQ_SET_FEATURE   0x03

#define USB_REQ_SET_INTERFACE   0x0B

#define USB_REQ_SYNCH_FRAME   0x0C

#define USB_REQ_TYPE_CLASS   0x20

#define USB_REQ_TYPE_MASK   0x60

#define USB_REQ_TYPE_STANDARD   0x00

#define USB_REQ_TYPE_VENDOR   0x40

#define USBD_IDX_CONFIG_STR   0x04

#define USBD_IDX_INTERFACE_STR   0x05

#define USBD_IDX_LANGID_STR   0x00

#define USBD_IDX_MFC_STR   0x01

#define USBD_IDX_PRODUCT_STR   0x02

#define USBD_IDX_SERIAL_STR   0x03


Detailed Description

general defines for the usb device library

Author
MCD Application Team
Version
V1.2.0
Date
09-November-2015
Attention

© COPYRIGHT 2015 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file usbd_def.h.
