usb_regs.h File Reference

hardware registers More...

#include "usb_conf.h"

Include dependency graph for usb_regs.h:

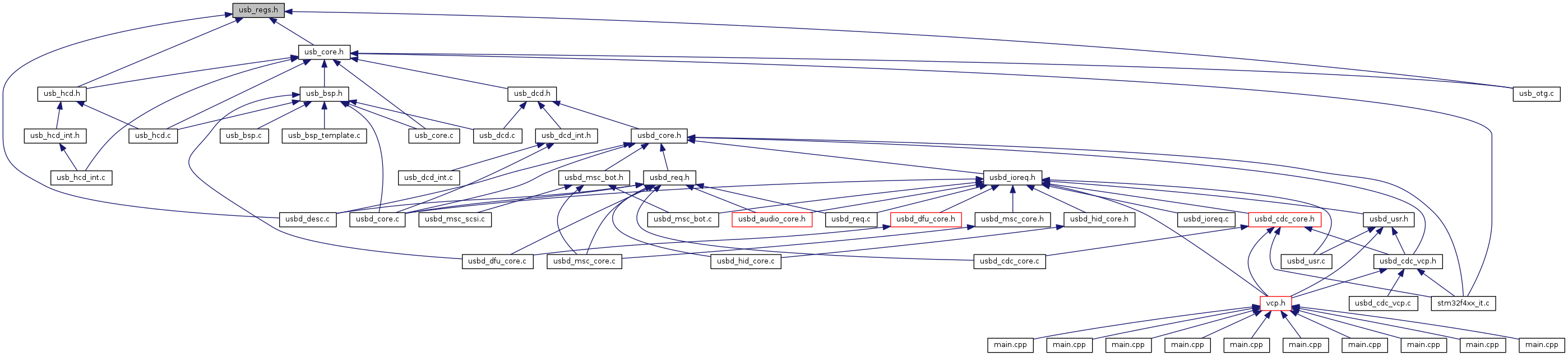

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
union	_USB_OTG_DAINT_TypeDef
union	_USB_OTG_DCFG_TypeDef
union	_USB_OTG_DCTL_TypeDef
union	_USB_OTG_DEP0XFRSIZ_TypeDef
union	_USB_OTG_DEPCTL_TypeDef
union	_USB_OTG_DEPXFRSIZ_TypeDef
union	_USB_OTG_DIEPINTn_TypeDef
union	_USB_OTG_DOEPINTn_TypeDef
struct	_USB_OTG_DREGS
union	_USB_OTG_DRXSTS_TypeDef
union	_USB_OTG_DSTS_TypeDef
union	_USB_OTG_DTHRCTL_TypeDef
union	_USB_OTG_DTXFSTSn_TypeDef
union	_USB_OTG_FSIZ_TypeDef
union	_USB_OTG_GAHBCFG_TypeDef
union	_USB_OTG_GCCFG_TypeDef
union	_USB_OTG_GINTMSK_TypeDef
union	_USB_OTG_GINTSTS_TypeDef
union	_USB_OTG_GOTGCTL_TypeDef
union	_USB_OTG_GOTGINT_TypeDef
struct	_USB_OTG_GREGS
union	_USB_OTG_GRSTCTL_TypeDef
union	_USB_OTG_GRXSTS_TypeDef
union	_USB_OTG_GUSBCFG_TypeDef
union	_USB_OTG_HAINT_TypeDef
union	_USB_OTG_HAINTMSK_TypeDef
struct	_USB_OTG_HC_REGS
union	_USB_OTG_HCCHAR_TypeDef
union	_USB_OTG_HCFG_TypeDef
union	_USB_OTG_HCINTMSK_TypeDef
union	_USB_OTG_HCINTn_TypeDef
union	_USB_OTG_HCSPLT_TypeDef
union	_USB_OTG_HCTSIZn_TypeDef
union	_USB_OTG_HFNUM_TypeDef
union	_USB_OTG_HFRMINTRVL_TypeDef
union	_USB_OTG_HNPTXSTS_TypeDef
union	_USB_OTG_HPRT0_TypeDef
union	_USB_OTG_HPTXSTS_TypeDef
struct	_USB_OTG_HREGS
struct	_USB_OTG_INEPREGS
struct	_USB_OTG_OUTEPREGS
union	_USB_OTG_PCGCCTL_TypeDef
struct	USB_OTG_core_regs

Macros
#define	USB_OTG_CHAN_REGS_OFFSET   0x20
#define	USB_OTG_CORE_GLOBAL_REGS_OFFSET   0x000
#define	USB_OTG_DATA_FIFO_OFFSET   0x1000
#define	USB_OTG_DATA_FIFO_SIZE   0x1000
#define	USB_OTG_DEV_GLOBAL_REG_OFFSET   0x800
#define	USB_OTG_DEV_IN_EP_REG_OFFSET   0x900
#define	USB_OTG_DEV_OUT_EP_REG_OFFSET   0xB00
#define	USB_OTG_EP_REG_OFFSET   0x20
#define	USB_OTG_FS_BASE_ADDR   0x50000000
#define	USB_OTG_FS_MAX_PACKET_SIZE   64
#define	USB_OTG_HOST_CHAN_REGS_OFFSET   0x500
#define	USB_OTG_HOST_GLOBAL_REG_OFFSET   0x400
#define	USB_OTG_HOST_PORT_REGS_OFFSET   0x440
#define	USB_OTG_HS_BASE_ADDR   0x40040000
#define	USB_OTG_HS_MAX_PACKET_SIZE   512
#define	USB_OTG_MAX_EP0_SIZE   64
#define	USB_OTG_MAX_TX_FIFOS   15
#define	USB_OTG_PCGCCTL_OFFSET   0xE00

Typedefs
typedef struct USB_OTG_core_regs *	PUSB_OTG_CORE_REGS
typedef struct USB_OTG_core_regs	USB_OTG_CORE_REGS
typedef union _USB_OTG_DAINT_TypeDef	USB_OTG_DAINT_TypeDef
typedef union _USB_OTG_DCFG_TypeDef	USB_OTG_DCFG_TypeDef
typedef union _USB_OTG_DCTL_TypeDef	USB_OTG_DCTL_TypeDef
typedef union _USB_OTG_DEP0XFRSIZ_TypeDef	USB_OTG_DEP0XFRSIZ_TypeDef
typedef union _USB_OTG_DEPCTL_TypeDef	USB_OTG_DEPCTL_TypeDef
typedef union _USB_OTG_DEPXFRSIZ_TypeDef	USB_OTG_DEPXFRSIZ_TypeDef
typedef union _USB_OTG_DIEPINTn_TypeDef	USB_OTG_DIEPINTn_TypeDef
typedef union _USB_OTG_DIEPINTn_TypeDef	USB_OTG_DIEPMSK_TypeDef
typedef union _USB_OTG_DOEPINTn_TypeDef	USB_OTG_DOEPINTn_TypeDef
typedef union _USB_OTG_DOEPINTn_TypeDef	USB_OTG_DOEPMSK_TypeDef
typedef struct _USB_OTG_DREGS	USB_OTG_DREGS
typedef union _USB_OTG_DRXSTS_TypeDef	USB_OTG_DRXSTS_TypeDef
typedef union _USB_OTG_DSTS_TypeDef	USB_OTG_DSTS_TypeDef
typedef union _USB_OTG_DTHRCTL_TypeDef	USB_OTG_DTHRCTL_TypeDef
typedef union _USB_OTG_DTXFSTSn_TypeDef	USB_OTG_DTXFSTSn_TypeDef
typedef union _USB_OTG_FSIZ_TypeDef	USB_OTG_FSIZ_TypeDef
typedef union _USB_OTG_GAHBCFG_TypeDef	USB_OTG_GAHBCFG_TypeDef
typedef union _USB_OTG_GCCFG_TypeDef	USB_OTG_GCCFG_TypeDef
typedef union _USB_OTG_GINTMSK_TypeDef	USB_OTG_GINTMSK_TypeDef
typedef union _USB_OTG_GINTSTS_TypeDef	USB_OTG_GINTSTS_TypeDef
typedef union _USB_OTG_GOTGCTL_TypeDef	USB_OTG_GOTGCTL_TypeDef
typedef union _USB_OTG_GOTGINT_TypeDef	USB_OTG_GOTGINT_TypeDef
typedef struct _USB_OTG_GREGS	USB_OTG_GREGS
typedef union _USB_OTG_GRSTCTL_TypeDef	USB_OTG_GRSTCTL_TypeDef
typedef union _USB_OTG_GRXSTS_TypeDef	USB_OTG_GRXFSTS_TypeDef
typedef union _USB_OTG_GUSBCFG_TypeDef	USB_OTG_GUSBCFG_TypeDef
typedef union _USB_OTG_HAINT_TypeDef	USB_OTG_HAINT_TypeDef
typedef union _USB_OTG_HAINTMSK_TypeDef	USB_OTG_HAINTMSK_TypeDef
typedef struct _USB_OTG_HC_REGS	USB_OTG_HC_REGS
typedef union _USB_OTG_HCCHAR_TypeDef	USB_OTG_HCCHAR_TypeDef
typedef union _USB_OTG_HCFG_TypeDef	USB_OTG_HCFG_TypeDef
typedef union _USB_OTG_HCINTMSK_TypeDef	USB_OTG_HCINTMSK_TypeDef
typedef union _USB_OTG_HCINTn_TypeDef	USB_OTG_HCINTn_TypeDef
typedef union _USB_OTG_HCSPLT_TypeDef	USB_OTG_HCSPLT_TypeDef
typedef union _USB_OTG_HCTSIZn_TypeDef	USB_OTG_HCTSIZn_TypeDef
typedef union _USB_OTG_HFNUM_TypeDef	USB_OTG_HFNUM_TypeDef
typedef union _USB_OTG_HFRMINTRVL_TypeDef	USB_OTG_HFRMINTRVL_TypeDef
typedef union _USB_OTG_HNPTXSTS_TypeDef	USB_OTG_HNPTXSTS_TypeDef
typedef union _USB_OTG_HPRT0_TypeDef	USB_OTG_HPRT0_TypeDef
typedef union _USB_OTG_HPTXSTS_TypeDef	USB_OTG_HPTXSTS_TypeDef
typedef struct _USB_OTG_HREGS	USB_OTG_HREGS
typedef struct _USB_OTG_INEPREGS	USB_OTG_INEPREGS
typedef struct _USB_OTG_OUTEPREGS	USB_OTG_OUTEPREGS
typedef union _USB_OTG_PCGCCTL_TypeDef	USB_OTG_PCGCCTL_TypeDef

Detailed Description

hardware registers

Author

MCD Application Team

Version

V2.2.0

Date

09-November-2015

Attention

© COPYRIGHT 2015 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file usb_regs.h.
