stm32f4xx_spi.c File Reference

This file provides firmware functions to manage the following functionalities of the Serial peripheral interface (SPI): More...

#include "stm32f4xx_spi.h"
#include "stm32f4xx_rcc.h"

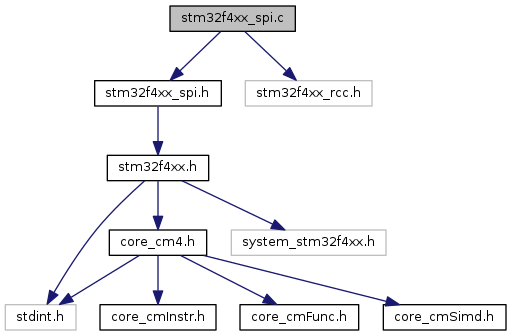

Include dependency graph for stm32f4xx_spi.c:

Go to the source code of this file.

Macros

#define CR1_CLEAR_MASK   ((uint16_t)0x3040)

#define I2SCFGR_CLEAR_MASK   ((uint16_t)0xF040)

#define PLLCFGR_PPLN_MASK   ((uint32_t)0x00007FC0)

#define PLLCFGR_PPLR_MASK   ((uint32_t)0x70000000)

#define SPI_CR2_FRF   ((uint16_t)0x0010)

#define SPI_SR_TIFRFE   ((uint16_t)0x0100)


Functions

void I2S_Cmd (SPI_TypeDef *SPIx, FunctionalState NewState)
 Enables or disables the specified SPI peripheral (in I2S mode). More...

void I2S_FullDuplexConfig (SPI_TypeDef *I2Sxext, I2S_InitTypeDef *I2S_InitStruct)
 Configures the full duplex mode for the I2Sx peripheral using its extension I2Sxext according to the specified parameters in the I2S_InitStruct. More...

void I2S_Init (SPI_TypeDef *SPIx, I2S_InitTypeDef *I2S_InitStruct)
 Initializes the SPIx peripheral according to the specified parameters in the I2S_InitStruct. More...

void I2S_StructInit (I2S_InitTypeDef *I2S_InitStruct)
 Fills each I2S_InitStruct member with its default value. More...

void SPI_BiDirectionalLineConfig (SPI_TypeDef *SPIx, uint16_t SPI_Direction)
 Selects the data transfer direction in bidirectional mode for the specified SPI. More...

void SPI_CalculateCRC (SPI_TypeDef *SPIx, FunctionalState NewState)
 Enables or disables the CRC value calculation of the transferred bytes. More...

void SPI_Cmd (SPI_TypeDef *SPIx, FunctionalState NewState)
 Enables or disables the specified SPI peripheral. More...

void SPI_DataSizeConfig (SPI_TypeDef *SPIx, uint16_t SPI_DataSize)
 Configures the data size for the selected SPI. More...

uint16_t SPI_GetCRC (SPI_TypeDef *SPIx, uint8_t SPI_CRC)
 Returns the transmit or the receive CRC register value for the specified SPI. More...

uint16_t SPI_GetCRCPolynomial (SPI_TypeDef *SPIx)
 Returns the CRC Polynomial register value for the specified SPI. More...

void SPI_I2S_ClearFlag (SPI_TypeDef *SPIx, uint16_t SPI_I2S_FLAG)
 Clears the SPIx CRC Error (CRCERR) flag. More...

void SPI_I2S_ClearITPendingBit (SPI_TypeDef *SPIx, uint8_t SPI_I2S_IT)
 Clears the SPIx CRC Error (CRCERR) interrupt pending bit. More...

void SPI_I2S_DeInit (SPI_TypeDef *SPIx)
 De-initialize the SPIx peripheral registers to their default reset values. More...

void SPI_I2S_DMACmd (SPI_TypeDef *SPIx, uint16_t SPI_I2S_DMAReq, FunctionalState NewState)
 Enables or disables the SPIx/I2Sx DMA interface. More...

FlagStatus SPI_I2S_GetFlagStatus (SPI_TypeDef *SPIx, uint16_t SPI_I2S_FLAG)
 Checks whether the specified SPIx/I2Sx flag is set or not. More...

ITStatus SPI_I2S_GetITStatus (SPI_TypeDef *SPIx, uint8_t SPI_I2S_IT)
 Checks whether the specified SPIx/I2Sx interrupt has occurred or not. More...

void SPI_I2S_ITConfig (SPI_TypeDef *SPIx, uint8_t SPI_I2S_IT, FunctionalState NewState)
 Enables or disables the specified SPI/I2S interrupts. More...

uint16_t SPI_I2S_ReceiveData (SPI_TypeDef *SPIx)
 Returns the most recent received data by the SPIx/I2Sx peripheral. More...

void SPI_I2S_SendData (SPI_TypeDef *SPIx, uint16_t Data)
 Transmits a Data through the SPIx/I2Sx peripheral. More...

void SPI_Init (SPI_TypeDef *SPIx, SPI_InitTypeDef *SPI_InitStruct)
 Initializes the SPIx peripheral according to the specified parameters in the SPI_InitStruct. More...

void SPI_NSSInternalSoftwareConfig (SPI_TypeDef *SPIx, uint16_t SPI_NSSInternalSoft)
 Configures internally by software the NSS pin for the selected SPI. More...

void SPI_SSOutputCmd (SPI_TypeDef *SPIx, FunctionalState NewState)
 Enables or disables the SS output for the selected SPI. More...

void SPI_StructInit (SPI_InitTypeDef *SPI_InitStruct)
 Fills each SPI_InitStruct member with its default value. More...

void SPI_TIModeCmd (SPI_TypeDef *SPIx, FunctionalState NewState)
 Enables or disables the SPIx/I2Sx DMA interface. More...

void SPI_TransmitCRC (SPI_TypeDef *SPIx)
 Transmit the SPIx CRC value. More...


Detailed Description

This file provides firmware functions to manage the following functionalities of the Serial peripheral interface (SPI):

Author
MCD Application Team
Version
V1.1.0
Date
11-January-2013
  • Initialization and Configuration
  • Data transfers functions
  • Hardware CRC Calculation
  • DMA transfers management
  • Interrupts and flags management
 ===================================================================
                  ##### How to use this driver #####
 ===================================================================
 [..]
   (#) Enable peripheral clock using the following functions
       RCC_APB2PeriphClockCmd(RCC_APB2Periph_SPI1, ENABLE) for SPI1
       RCC_APB1PeriphClockCmd(RCC_APB1Periph_SPI2, ENABLE) for SPI2
       RCC_APB1PeriphResetCmd(RCC_APB1Periph_SPI3, ENABLE) for SPI3
       RCC_APB1PeriphResetCmd(RCC_APB1Periph_SPI3, ENABLE) for SPI4
       RCC_APB1PeriphResetCmd(RCC_APB1Periph_SPI3, ENABLE) for SPI5
       RCC_APB1PeriphResetCmd(RCC_APB1Periph_SPI3, ENABLE) for SPI6.

   (#) Enable SCK, MOSI, MISO and NSS GPIO clocks using RCC_AHB1PeriphClockCmd()
       function. In I2S mode, if an external clock source is used then the I2S
       CKIN pin GPIO clock should also be enabled.

   (#) Peripherals alternate function:
       (++) Connect the pin to the desired peripherals' Alternate Function (AF)
            using GPIO_PinAFConfig() function
       (++) Configure the desired pin in alternate function by:
            GPIO_InitStruct->GPIO_Mode = GPIO_Mode_AF
       (++) Select the type, pull-up/pull-down and output speed via GPIO_PuPd,
            GPIO_OType and GPIO_Speed members
       (++) Call GPIO_Init() function In I2S mode, if an external clock source is
            used then the I2S CKIN pin should be also configured in Alternate
            function Push-pull pull-up mode.

   (#) Program the Polarity, Phase, First Data, Baud Rate Prescaler, Slave
       Management, Peripheral Mode and CRC Polynomial values using the SPI_Init()
       function.
       In I2S mode, program the Mode, Standard, Data Format, MCLK Output, Audio
       frequency and Polarity using I2S_Init() function. For I2S mode, make sure
       that either:
       (++) I2S PLL is configured using the functions
            RCC_I2SCLKConfig(RCC_I2S2CLKSource_PLLI2S), RCC_PLLI2SCmd(ENABLE) and
            RCC_GetFlagStatus(RCC_FLAG_PLLI2SRDY); or
       (++) External clock source is configured using the function
            RCC_I2SCLKConfig(RCC_I2S2CLKSource_Ext) and after setting correctly
            the define constant I2S_EXTERNAL_CLOCK_VAL in the stm32f4xx_conf.h file.

   (#) Enable the NVIC and the corresponding interrupt using the function
       SPI_ITConfig() if you need to use interrupt mode.

   (#) When using the DMA mode
       (++) Configure the DMA using DMA_Init() function
       (++) Active the needed channel Request using SPI_I2S_DMACmd() function

   (#) Enable the SPI using the SPI_Cmd() function or enable the I2S using
       I2S_Cmd().

   (#) Enable the DMA using the DMA_Cmd() function when using DMA mode.

   (#) Optionally, you can enable/configure the following parameters without
       re-initialization (i.e there is no need to call again SPI_Init() function):
       (++) When bidirectional mode (SPI_Direction_1Line_Rx or SPI_Direction_1Line_Tx)
            is programmed as Data direction parameter using the SPI_Init() function
            it can be possible to switch between SPI_Direction_Tx or SPI_Direction_Rx
            using the SPI_BiDirectionalLineConfig() function.
       (++) When SPI_NSS_Soft is selected as Slave Select Management parameter
            using the SPI_Init() function it can be possible to manage the
            NSS internal signal using the SPI_NSSInternalSoftwareConfig() function.
       (++) Reconfigure the data size using the SPI_DataSizeConfig() function
       (++) Enable or disable the SS output using the SPI_SSOutputCmd() function

    (#) To use the CRC Hardware calculation feature refer to the Peripheral
        CRC hardware Calculation subsection.


 [..] It is possible to use SPI in I2S full duplex mode, in this case, each SPI
      peripheral is able to manage sending and receiving data simultaneously
      using two data lines. Each SPI peripheral has an extended block called I2Sxext
      (ie. I2S2ext for SPI2 and I2S3ext for SPI3).
      The extension block is not a full SPI IP, it is used only as I2S slave to
      implement full duplex mode. The extension block uses the same clock sources
      as its master.
      To configure I2S full duplex you have to:

      (#) Configure SPIx in I2S mode (I2S_Init() function) as described above.

      (#) Call the I2S_FullDuplexConfig() function using the same strucutre passed to
          I2S_Init() function.

      (#) Call I2S_Cmd() for SPIx then for its extended block.

      (#) To configure interrupts or DMA requests and to get/clear flag status,
          use I2Sxext instance for the extension block.

 [..] Functions that can be called with I2Sxext instances are: I2S_Cmd(),
      I2S_FullDuplexConfig(), SPI_I2S_ReceiveData(), SPI_I2S_SendData(),
      SPI_I2S_DMACmd(), SPI_I2S_ITConfig(), SPI_I2S_GetFlagStatus(),
      SPI_I2S_ClearFlag(), SPI_I2S_GetITStatus() and SPI_I2S_ClearITPendingBit().

      Example: To use SPI3 in Full duplex mode (SPI3 is Master Tx, I2S3ext is Slave Rx):

      RCC_APB1PeriphClockCmd(RCC_APB1Periph_SPI3, ENABLE);
      I2S_StructInit(&I2SInitStruct);
      I2SInitStruct.Mode = I2S_Mode_MasterTx;
      I2S_Init(SPI3, &I2SInitStruct);
      I2S_FullDuplexConfig(SPI3ext, &I2SInitStruct)
      I2S_Cmd(SPI3, ENABLE);
      I2S_Cmd(SPI3ext, ENABLE);
      ...
      while (SPI_I2S_GetFlagStatus(SPI2, SPI_FLAG_TXE) == RESET)
      {}
      SPI_I2S_SendData(SPI3, txdata[i]);
      ...
      while (SPI_I2S_GetFlagStatus(I2S3ext, SPI_FLAG_RXNE) == RESET)
      {}
      rxdata[i] = SPI_I2S_ReceiveData(I2S3ext);
      ...

 [..]
   (@) In I2S mode: if an external clock is used as source clock for the I2S,
       then the define I2S_EXTERNAL_CLOCK_VAL in file stm32f4xx_conf.h should
       be enabled and set to the value of the source clock frequency (in Hz).

   (@) In SPI mode: To use the SPI TI mode, call the function SPI_TIModeCmd()
       just after calling the function SPI_Init().
@attention

<h2><center>&copy; COPYRIGHT 2013 STMicroelectronics</center></h2>

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License");
You may not use this file except in compliance with the License.
You may obtain a copy of the License at:

       http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software
distributed under the License is distributed on an "AS IS" BASIS,
WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
See the License for the specific language governing permissions and
limitations under the License.

Definition in file stm32f4xx_spi.c.
