stm32f4xx_iwdg.h File Reference

This file contains all the functions prototypes for the IWDG firmware library. More...

#include "stm32f4xx.h"

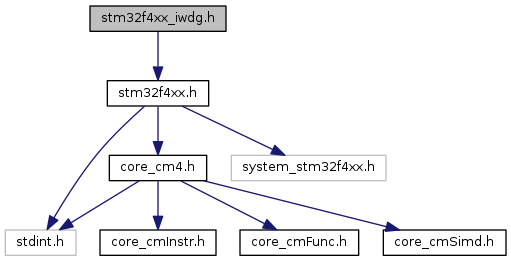

Include dependency graph for stm32f4xx_iwdg.h:

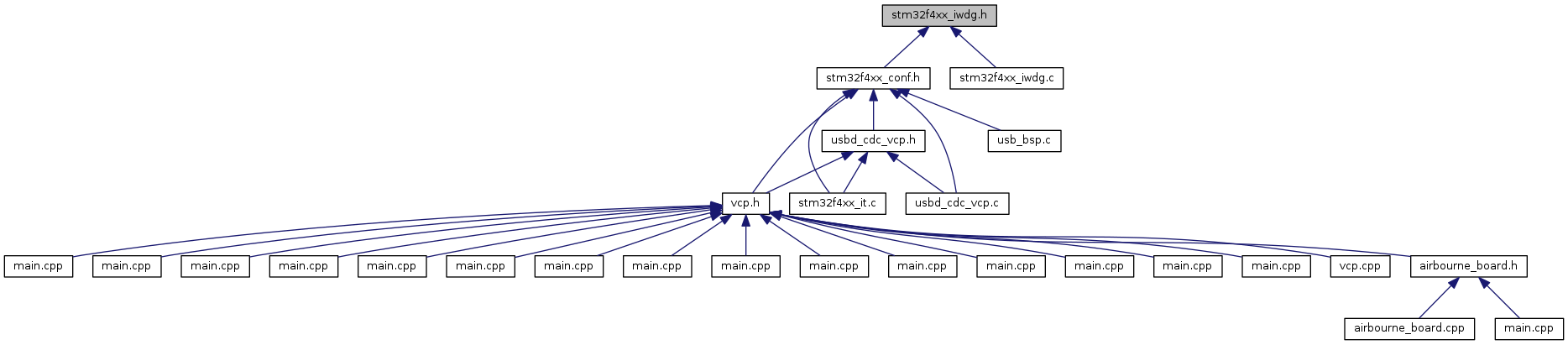

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	IS_IWDG_FLAG(FLAG)   (((FLAG) == IWDG_FLAG_PVU) || ((FLAG) == IWDG_FLAG_RVU))
#define	IS_IWDG_PRESCALER(PRESCALER)
#define	IS_IWDG_RELOAD(RELOAD)   ((RELOAD) <= 0xFFF)
#define	IS_IWDG_WRITE_ACCESS(ACCESS)
#define	IWDG_FLAG_PVU   ((uint16_t)0x0001)
#define	IWDG_FLAG_RVU   ((uint16_t)0x0002)
#define	IWDG_Prescaler_128   ((uint8_t)0x05)
#define	IWDG_Prescaler_16   ((uint8_t)0x02)
#define	IWDG_Prescaler_256   ((uint8_t)0x06)
#define	IWDG_Prescaler_32   ((uint8_t)0x03)
#define	IWDG_Prescaler_4   ((uint8_t)0x00)
#define	IWDG_Prescaler_64   ((uint8_t)0x04)
#define	IWDG_Prescaler_8   ((uint8_t)0x01)
#define	IWDG_WriteAccess_Disable   ((uint16_t)0x0000)
#define	IWDG_WriteAccess_Enable   ((uint16_t)0x5555)

Functions
void	IWDG_Enable (void)
	Enables IWDG (write access to IWDG_PR and IWDG_RLR registers disabled). More...
FlagStatus	IWDG_GetFlagStatus (uint16_t IWDG_FLAG)
	Checks whether the specified IWDG flag is set or not. More...
void	IWDG_ReloadCounter (void)
	Reloads IWDG counter with value defined in the reload register (write access to IWDG_PR and IWDG_RLR registers disabled). More...
void	IWDG_SetPrescaler (uint8_t IWDG_Prescaler)
	Sets IWDG Prescaler value. More...
void	IWDG_SetReload (uint16_t Reload)
	Sets IWDG Reload value. More...
void	IWDG_WriteAccessCmd (uint16_t IWDG_WriteAccess)
	Enables or disables write access to IWDG_PR and IWDG_RLR registers. More...

Detailed Description

This file contains all the functions prototypes for the IWDG firmware library.

Author

MCD Application Team

Version

V1.1.0

Date

11-January-2013

Attention

© COPYRIGHT 2013 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License"); You may not use this file except in compliance with the License. You may obtain a copy of the License at:

   http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Definition in file stm32f4xx_iwdg.h.
